SEW-Eurodrive MOVIDRIVE MDA90A-0160-503-X-S00

4
Installation
Covers
Operating Instructions – MOVIDRIVE
®
modular
60
4.4.3 Power connection closing cover
To maintain the degree of protection IP20, a closing cover must be inserted into the
touch guard of the following modules.
• Power supply module MDP90A-0250-.. (X1 connection)
• Axis modules MDA90A-0320-.. and MDA90A-0480-.. (X2 connection)

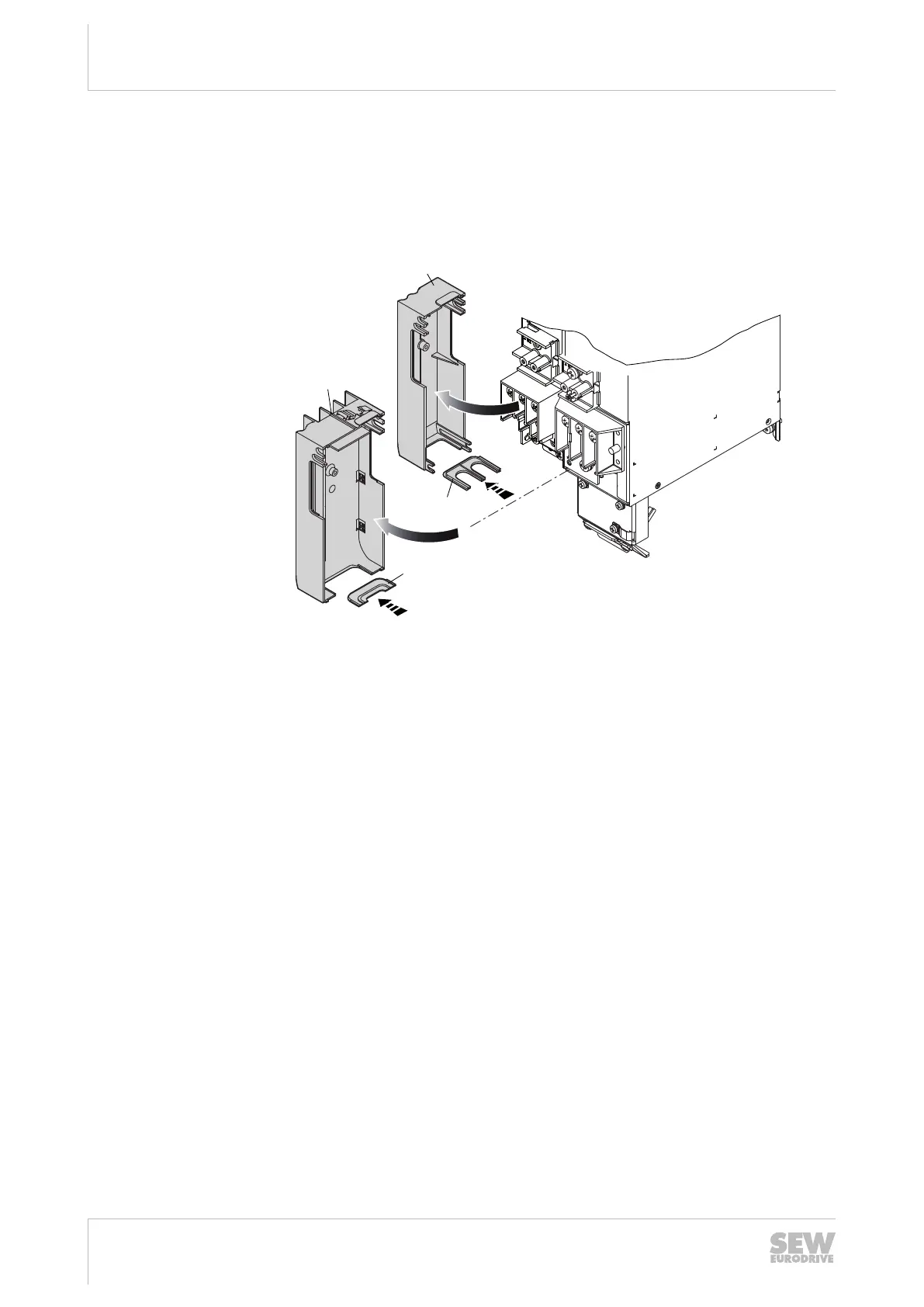

[1]
[3]
[2]
[4]
18948602891
[1] Power supply module touch guard
[2] Power supply module closing cover
[3] Axis module touch guard
[4] Axis module closing cover
1. Remove the touch guard [1], [3] from the respective module.
2. Insert the closing cover [2], [4] into the touch guard.
3. Install the touch guard on the respective module. Insert the screws and tighten
them securely with the specified tightening torque (→252).
The closing covers are included in the delivery.
24748536/EN – 11/2017
