SEW-Eurodrive MOVIDRIVE MDA90A-0160-503-X-S00

4
Installation
Control cabinet installation
Operating Instructions – MOVIDRIVE
®
modular
74
4.5.10 Installation/removal of the UHX45A
X80
L /A
L1
L2
L3
L4
T
1
X
M
S3
X85
US1
BF
L /A
L /A
X
4
0
X
4
1
L
5
L
6
L / A
X81
X30
X5
L / A
UH X 45A - N
[2]
[1]
[4]
[3]
[5]
[6]
20958668555

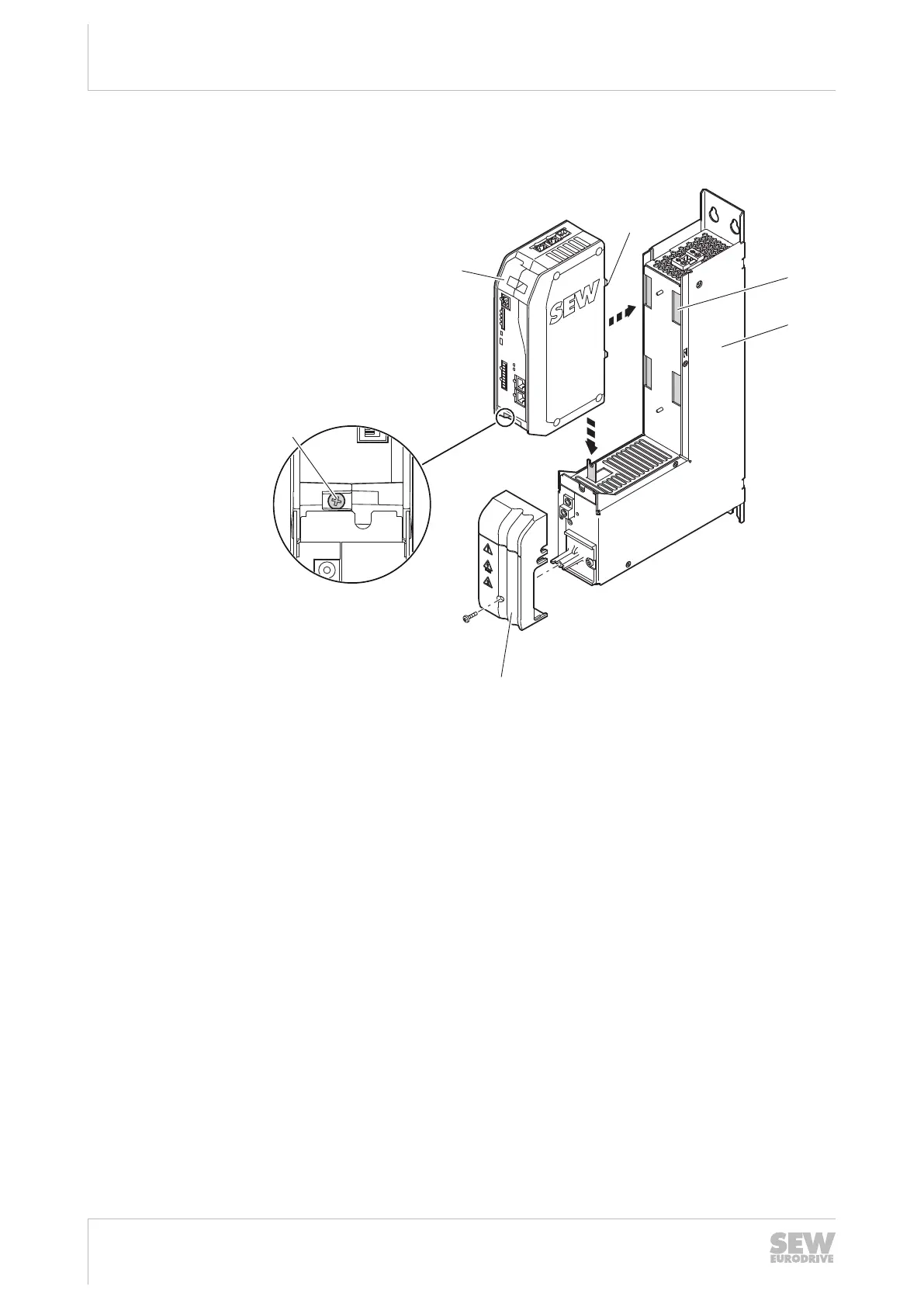

[1] UHX45A [4] Screw
[2] Housing of the master module MDM90A [5] 4 cams
[3] Touch guard [6] 4 recesses
Installation
1. Remove the touch guard [3] at the housing of the master module [2]
2. Install the housing of the UHX45A [1] so that the cams [5] fit into the recesses [6]
at the housing of the master module [2].
3. Push the housing of the UHX45A [1] downward until it touches the housing of the
master module.
4. Tighten the screw [4]
5. Install the touch guard [3] again
Disassembly
1. Remove the touch guard [3] at the housing of the master module [2]
2. Loosen the screw [4]
3. Pull the housing of the UHX45A [1] upward and remove it toward the front
24748536/EN – 11/2017
