Installation
Electrical installation
Operating Instructions – MOVIDRIVE
®
modular
79
4.6.6 Motor connection
For the terminal assignment for motor connection of the various size, refer to the
chapter "Terminal assignment"(→2123).
To achieve degree of protection IP20 according to EN60529 with larger modules, the
connectors must be secured against touch using a protection cap. The protection caps
are included in the accessory bag. The ring lugs must be insulated using a heat shrink
tubing.
• Power supply modules MDP90A-0500-.. and larger, line connection X1, braking
resistor connection X3
• Axis modules MDA90A-0640-.. and larger: Motor connection X2
The motor connection can be be designed either with 1 or 2 parallel cables.

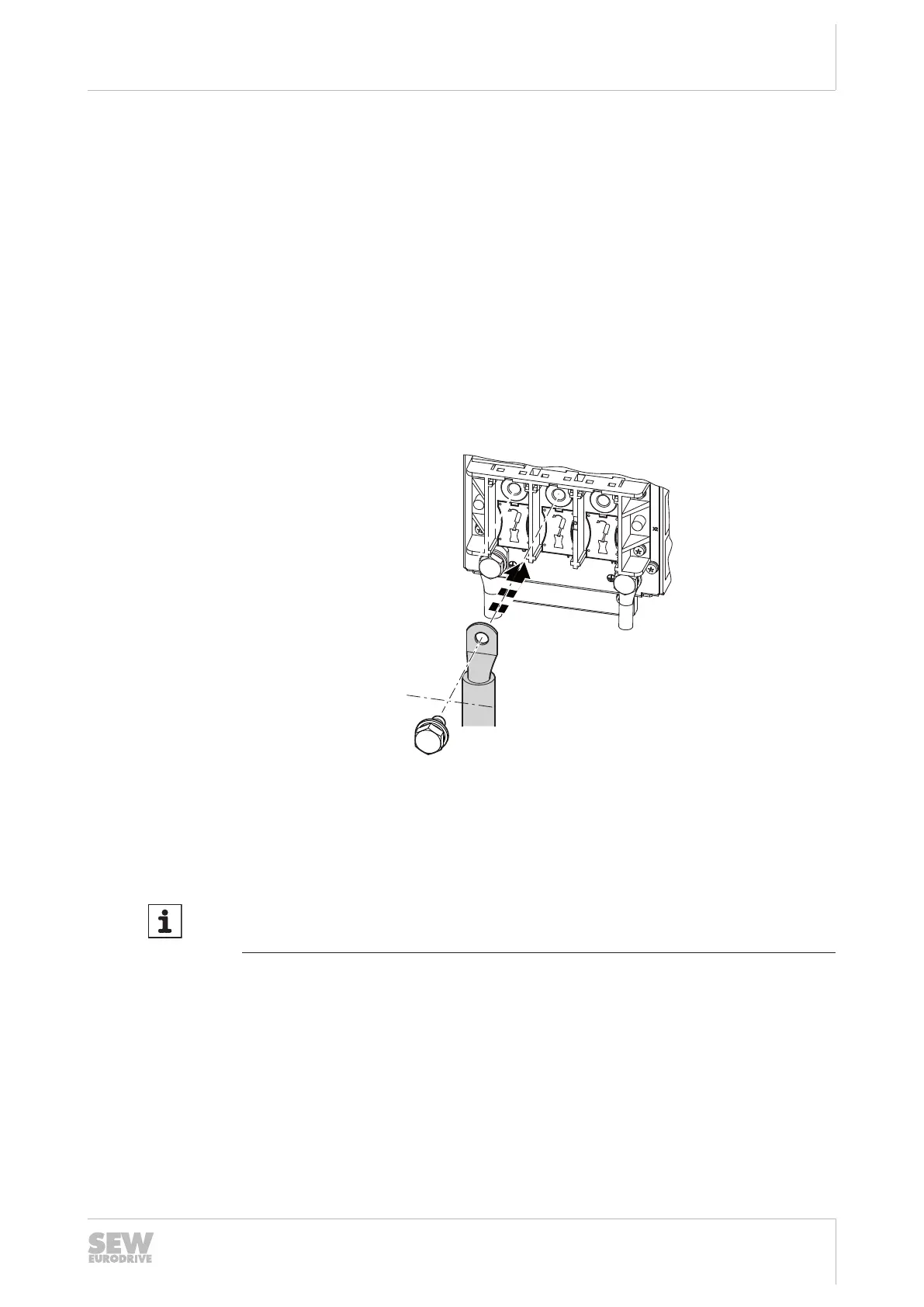

Connection with 1 cable
20119705995
1. Attach the heat shrink tubing at the ring lug.
2. Connect the cable as depicted in the figure.
3. Attach the protection caps, see chapter "Protection caps"(→262).
INFORMATION
If the device is connected using 1 cable, the plastic plate in the connection block
must not be removed.
