Installation

Control cabinet installation

Operating Instructions – MOVIDRIVE

modular

Top shield plate

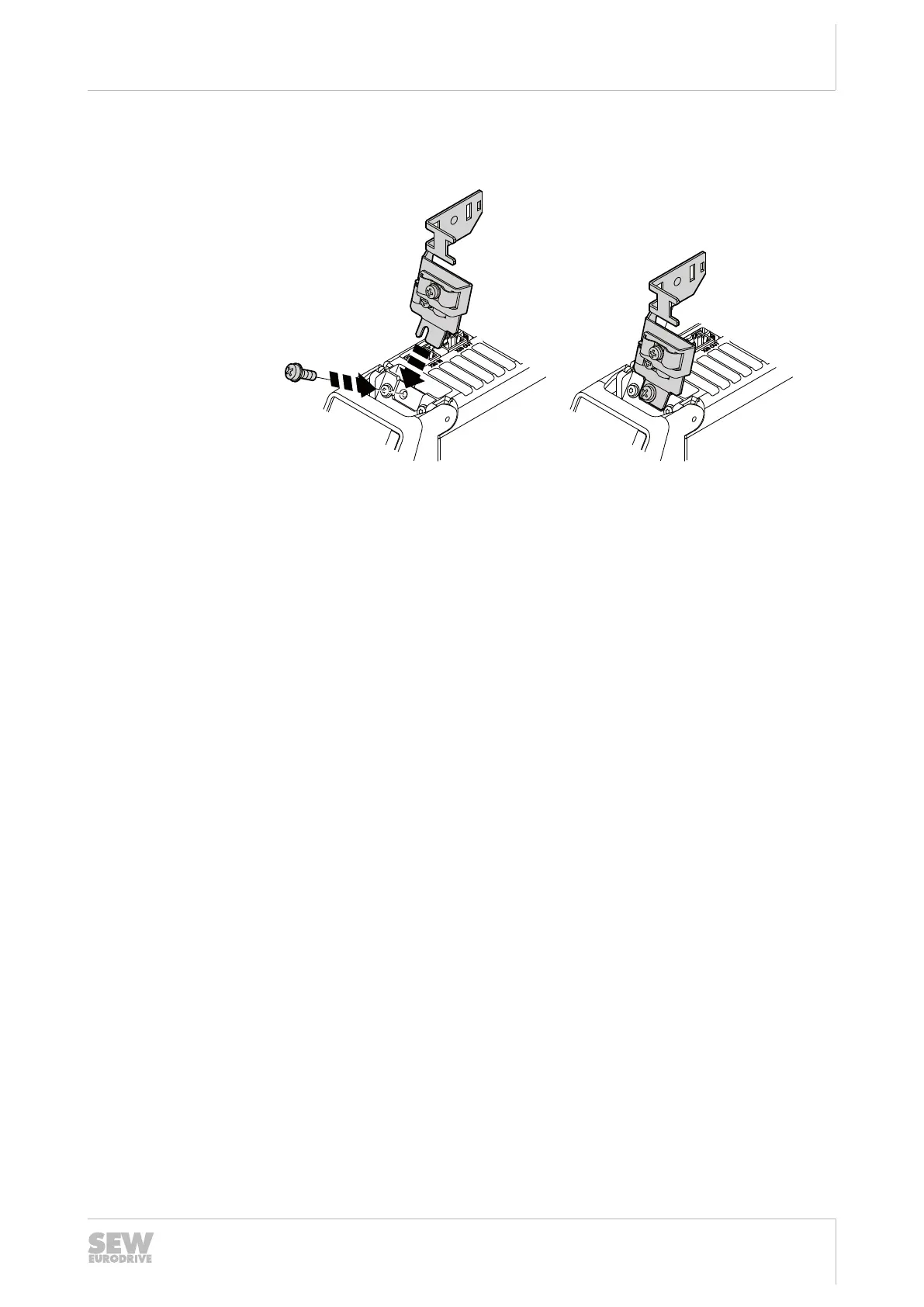

1. Install the top shield plate as shown.

17475894795

24748536/EN – 11/2017
