Purpose : Data clear
Function (Purpose) : Used to clear the number of use (the num-
ber of prints) of each paper feed section.
Section :—
Item : Counter
Operation/Procedure
1) Select the item to be cleared with the buttons on the touch
panel.
2) Press [EXECUTE] button.
3) Press [YES] button.
The target counter is cleared.
24-3
Purpose : Data clear
Function (Purpose) : Used to clear the number of use of the fin-
isher, RSPF, and the scan (reading) unit.
Section :—
Item : Counter
Operation/Procedure
1) Select the item to be cleared with the buttons on the touch
panel.
2) Press [EXECUTE] button.
3) Press [YES] button.
The target counter is cleared.
24-4
Purpose : Data clear
Function (Purpose) : Used to clear the maintenance counter, the
printer counters of the transfer unit and the
fusing unit. (After completion of mainte-
nance, clear the counters.)
Section :—
Item : Counter
Operation/Procedure
1) Select the item to be cleared with the buttons on the touch
panel.
2) Press [EXECUTE] button.
3) Press [YES] button.
The target counter is cleared.
MACHINE Machine JAM counter
RSPF RSPF JAM counter
TROUBLE Trouble counter
TRAY1 Tray 1 paper feed counter
TRAY2 Tray 2 paper feed counter
TRAY3 Tray 3 paper feed counter
TRAY4 Tray 4 paper feed counter
MFT TOTAL Manual paper feed counter (Total)
MFT HEAVY Manual paper feed counter (Heavy paper)
MFT OHP Manual paper feed counter (OHP)
MFT ENV Manual paper feed counter (Envelope)
LCC Side LCC paper feed counter (A4LCC)
ADU ADU paper feed counter
0
ARE YOU SURE?
YES NO

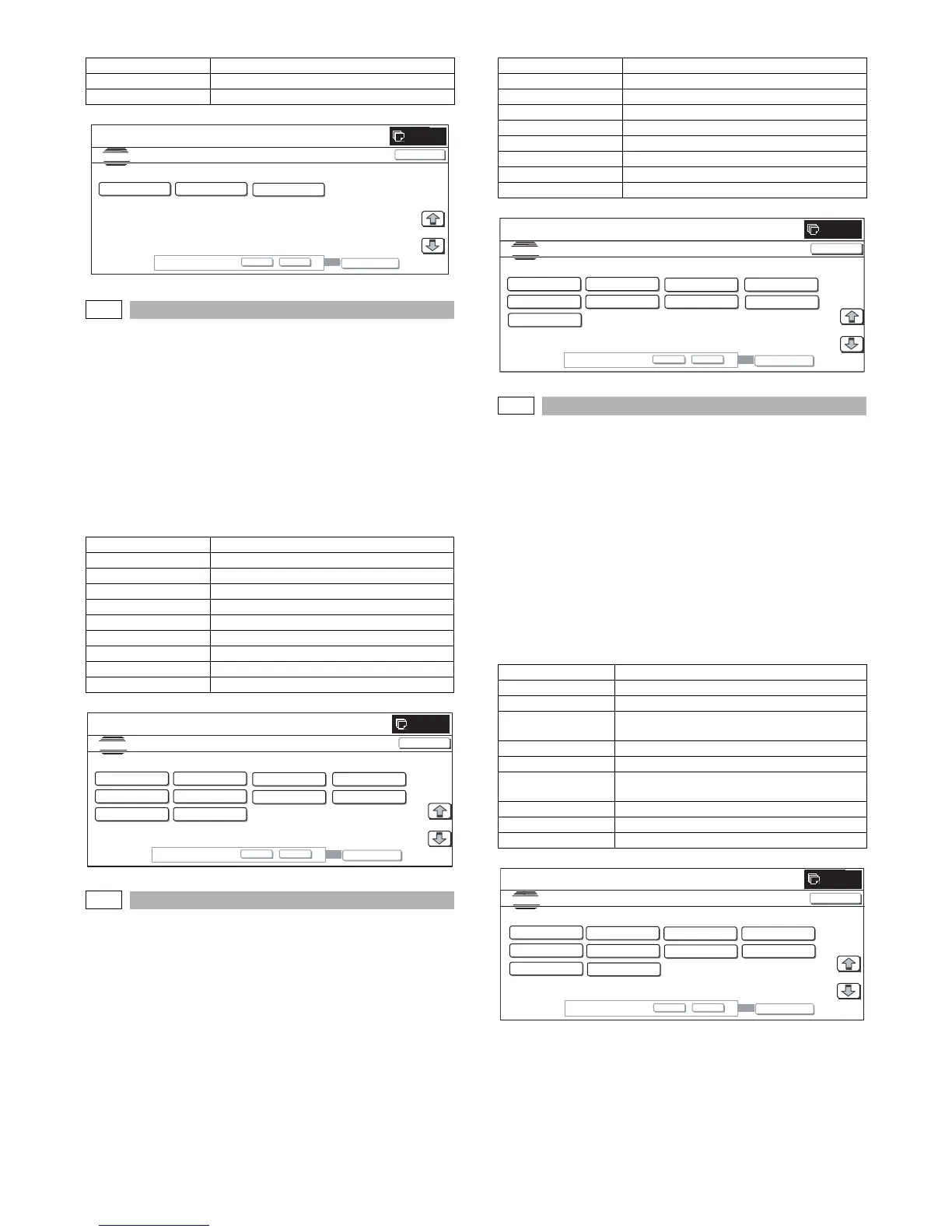

SIMULATION  NO.24  01
TEST
JAM/TROUBLE COUNTER DATA CL EAR
EXECUTE
MACHINE RSPF
TROUBLE
1/1
CLOSE
TRAY1
TRAY2
TRAY3 TRAY4
MFT TOTAL MFT HEAVY
 MFT OHP
MFT ENV
LCC  ADU
ARE YOU SURE?
YES NO
EXECUTE
0
SIMULATI ON  NO.24  02
TEST
PAPER FEED COU N T E R CLEAR
1/1
CLOSE
RSPF SPF counter
SCAN Scan counter
STAPLER Staple counter
PUNCHER Puncher counter
STAMP Stamp counter
SADDLE STAPLER Saddle staple counter
OC OPEN OC open/close counter
RSPF OPEN OPEN RSPF open/close counter
OC LAMP TIME OC section lamp total lighting time
MAINTENANCE ALL Maintenance counter (Total)
MAINTENANCE COL Maintenance counter (Color)
TC1 BELT Primary transfer unit print counter
TC1 BELT RANGE Primary transfer unit accumulated traveling
distance (cm)
TC1 BELT DAY Primary transfer unit use day (Day)
TC2 BELT Secondary transfer unit print counter
TC2 BELT RANGE Secondary transfer unit accumulated traveling
distance (cm)
TC2 BELT DAY Secondary transfer unit use day (Day)
FUSER UNIT Fusing unit print counter
FUSER ACUM DAY Fusing unit use day (Day)
A
RE YOU SURE?
YES NO
EXECUTE
0
SIMULATIO N  NO.24-03
TEST
ORG./OUTPUT COUNTER DATA CLEAR
1/1
CLOSE
RSPF
SCAN  STAPLER PUNCHER
STAMP SADDLE STAPLER OC OPEN
RSPF/DSPF OPEN
OC LAMP TIME
0
A
RE YOU SURE?
YES NO
SIMULATION  NO.24  04
TEST
MAINTENANCE COUNTER CLEAR
EXECUTE
1/1
CLOSE
MAINTE NANCE ALL
MAINTENA NCE COL
TC1 BELT
TC1 BELT RANGE
TC1 BELT DAY
TC2 BELT
TC2 BELT RANGE TC2 BELT DA
Y
FUSER UNIT
FUSER ACUM DAY
