Sharp MX-2300 G

MX-2300/2700 N/G SENSOR, SWITCH SECTION S – 1
MX2700N
Service Manual

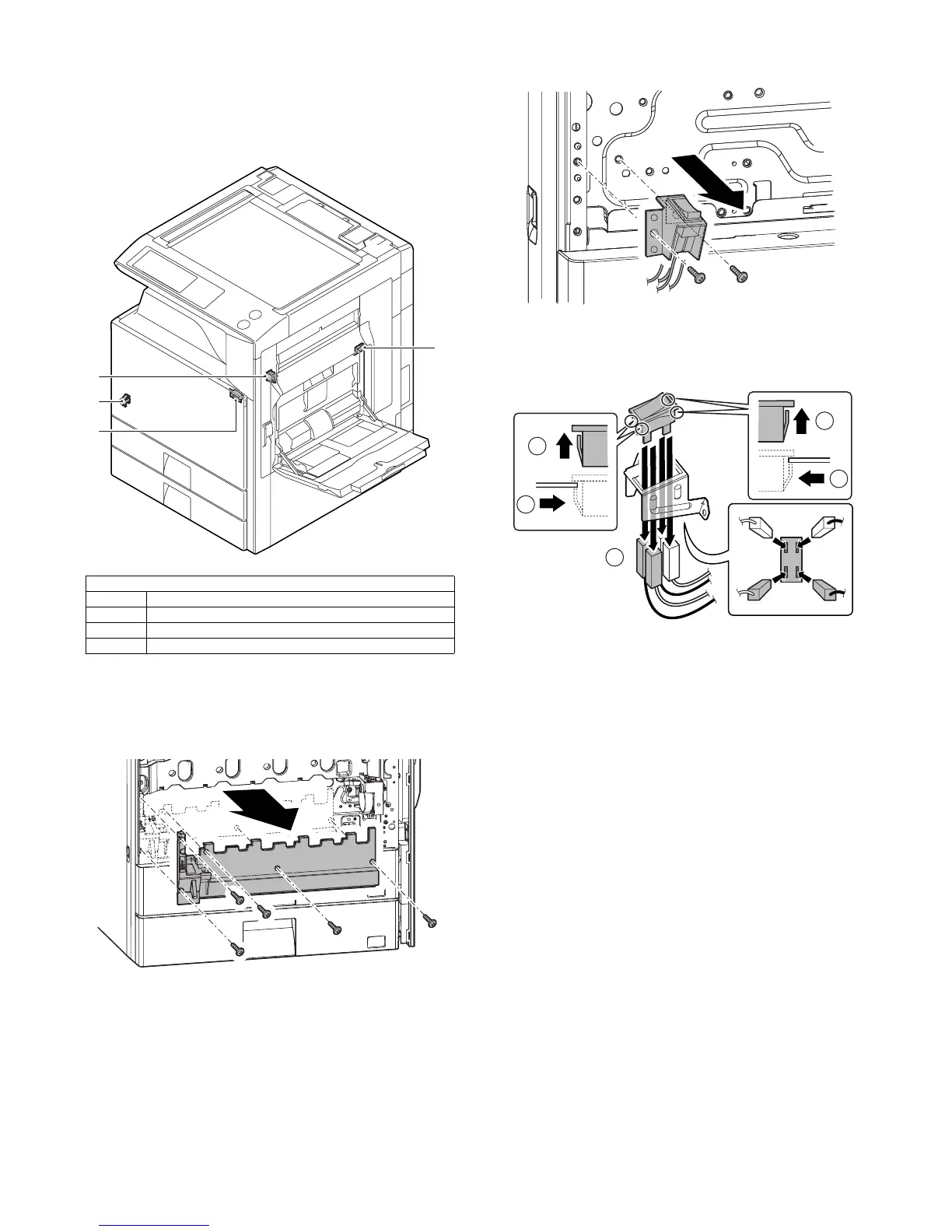

[S] SENSOR, SWITCH SECTION
1. Disassembly and assembly
A. Sensors, Switches
(1) Main Switch
1) Remove the front cabinet. (Refer to Front Cabinet in External
Outfit Section.)
2) Remove the screws, and remove the frame cover.
3) Remove the screws, then remove the main switch unit.
4) Remove the connector and the pawl, then remove the main
switch.
* Take care of connecting the connectors when installing.
Parts
(1) Main Switch
(2) Dehumidifier Heater Switch
(3) Front Door Open/Close Switch
(4) Right Door Open/Close Switch
(4)
(1)
(3)
(2)
1
2
3
2
3
F
R
