Sharp MX-2300 G

MX-2300/2700 N/G EXTERNAL VIEW AND INTERNAL STRUCTURE 5 – 9

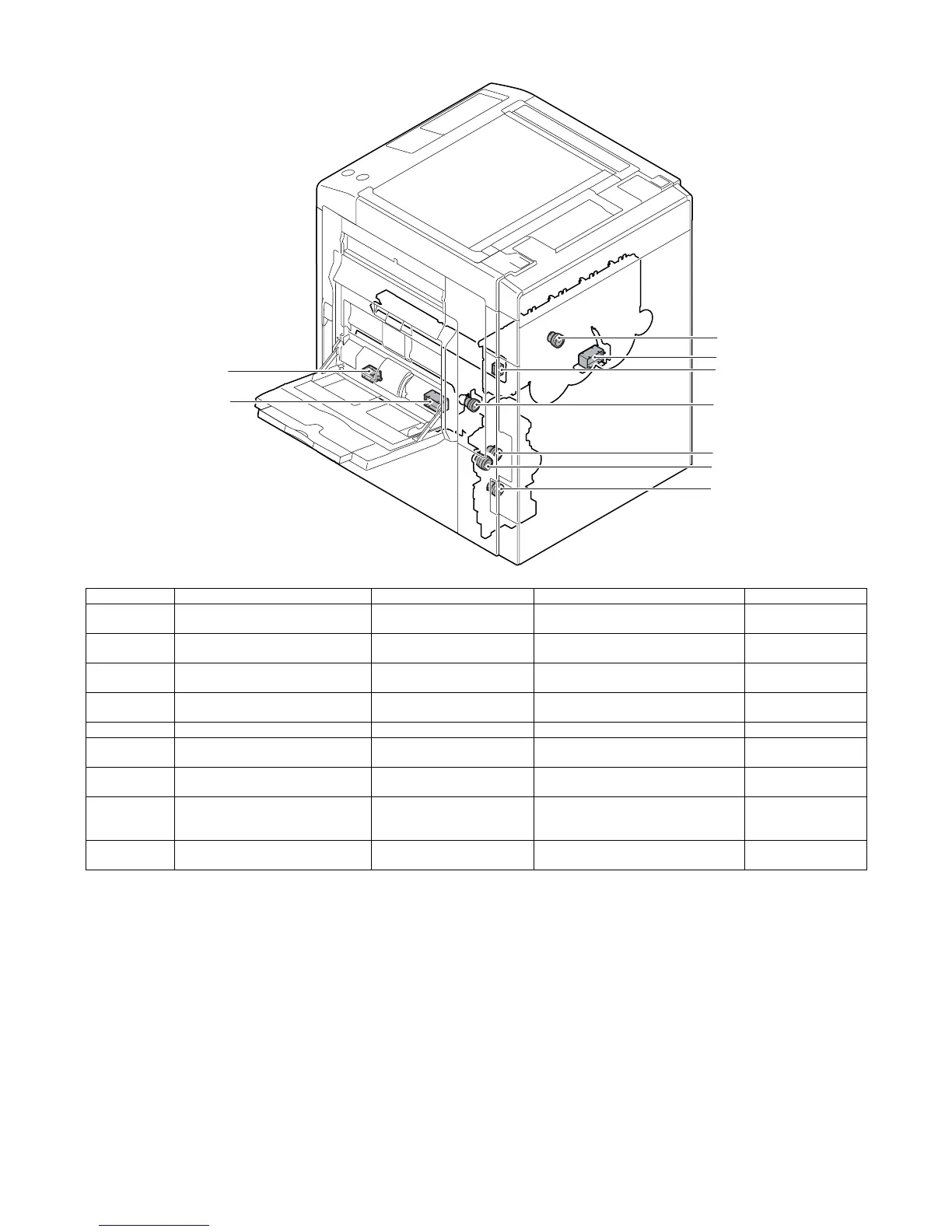

I. Clutches and solenoids
Signal name Name Type Function/Operation Note
1TURC Primary transfer separation clutch Electromagnetic clutch Controls the primary transfer separation
mode.
CPFC Tray vertical transport clutch Electromagnetic clutch Controls ON/OFF of the paper transport
roller in the paper feed tray section.
CPUC1 Paper feed clutch (Paper feed tray 1) Electromagnetic clutch Controls ON/OFF of the roller in the
paper feed tray 1 section.
CPUC2 Paper feed clutch (Paper feed tray 2) Electromagnetic clutch Controls ON/OFF of the roller in the
paper feed tray 2 section.
LSUSS1 LSU shutter solenoid Electromagnetic solenoid Opens/closes the LSU shutter.
MPFS Paper pickup solenoid (Manual paper
feed)
Electromagnetic solenoid Paper pickup solenoid (Manual paper
feed)
MPGS Manual paper feed gate solenoid Electromagnetic solenoid Controls open/close of the manual paper
feed gate solenoid.
MPUC Manual paper feed clutch Electromagnetic clutch Controls ON/OFF of the manual paper
feed roller in the manual paper feed
section.
PCSS Process control shutter solenoid Electromagnetic solenoid Opens/closes the shutter of the process
control and the registration sensor.
1TURC
LSUSS1
PCSS
MPUC
CPUC1
CPFC
CPUC2
MPGS
MPFS
