Sharp MX-2300 G

MX-2300/2700 N/G DRIVE SECTION P – 6
2. Maintenance
A. Drive Section
✕: Check (Clean, replace, or adjust according to necessity.) {: Clean ▲: Replace U: Adjust ✩: Lubricate : Shif the position.
No. Parts name
Monochrome
supply,
mechanical
parts
When
calling
100
K
200
K
300
K
400
K
500
K
600
K
700
K
800
K
900
K
1000
K
1100
K
1200
K
Remark/Refer to the
Parts Guide. Block/
Item No. (Only the
replacement parts
are described.)

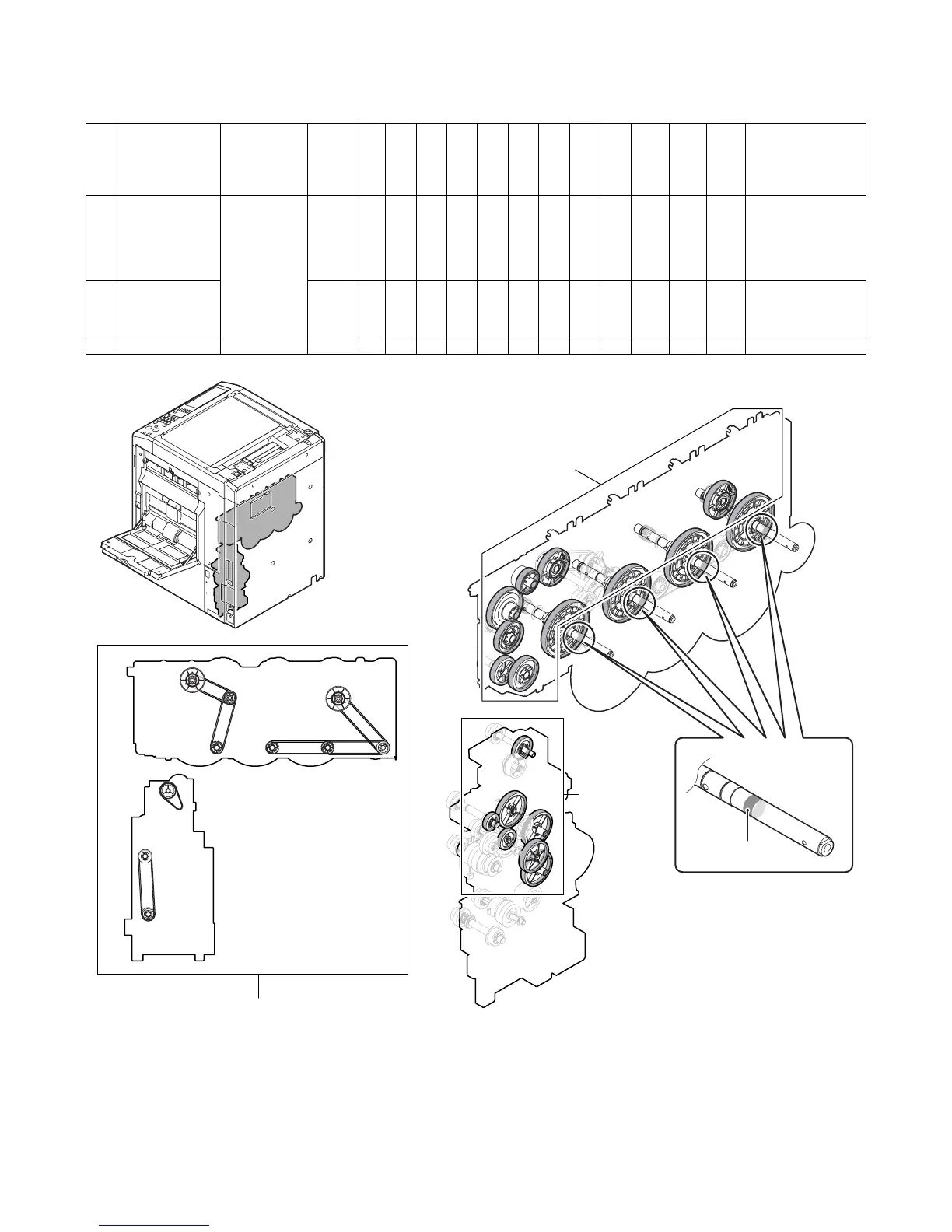

1 Gears (Gease) Mechanism
parts
✕ ✕✕✕✕✕✕✕✕✕ ✕ ✕ ✕When checking
HANARL FL955R/
FLOIL G313S, apply
to the necessary
positions. (Specified
positions)
2 Shaft Grounding
Section
(Conduction
Grease)
✕ ✕✕✕✕✕✕✕✕✕ ✕ ✕ ✕When checking, apply
to the necessary
positions. (Specified
positions)
3Belts ✕ ✕✕✕✕✕✕✕✕✕ ✕ ✕ ✕
2
1
3
1
(FLOIL G313S)
(HANARL FL955R)
