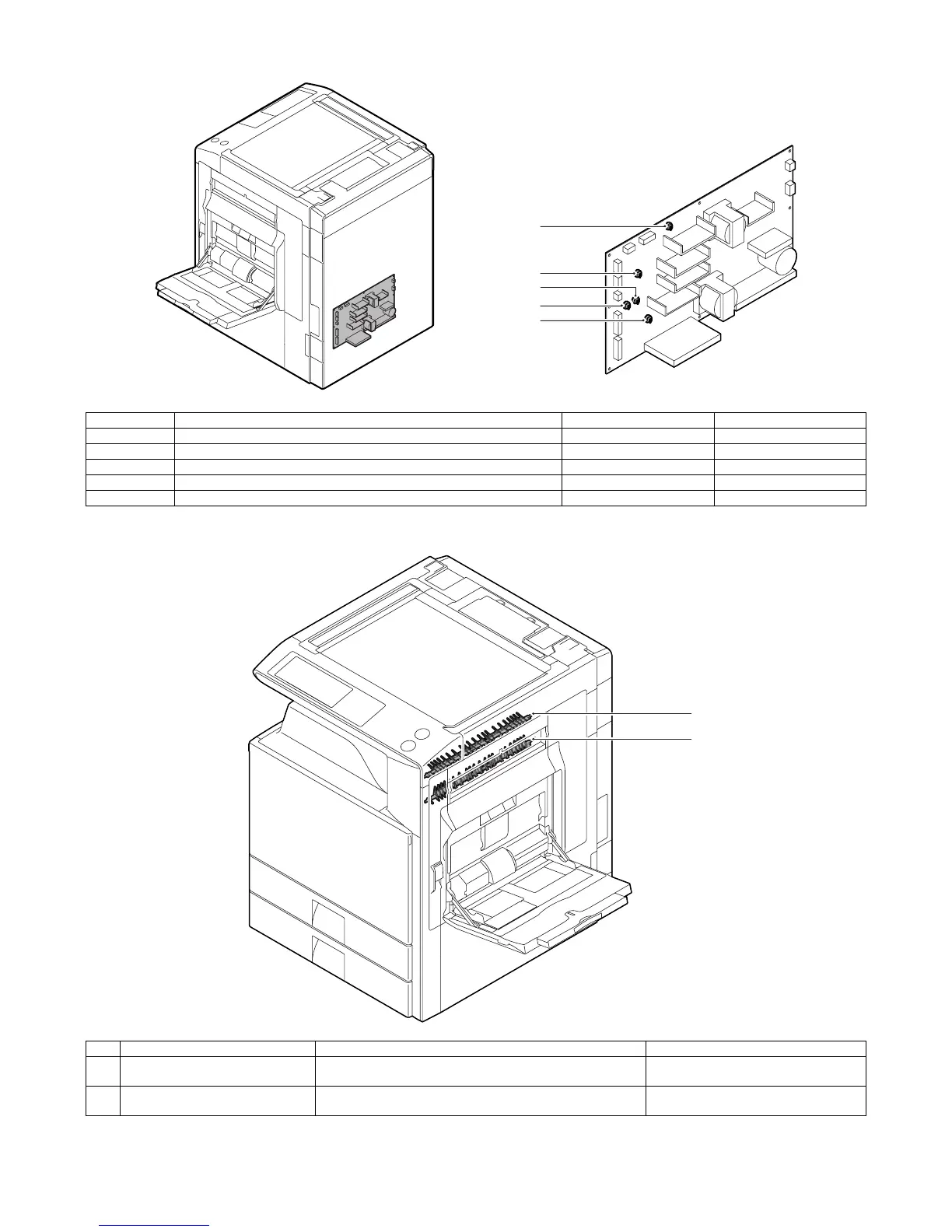

MX-2300/2700 N/G EXTERNAL VIEW AND INTERNAL STRUCTURE 5 – 15
O. Adjustment volumes
P. G a t e
Signal name Function/ Operation Section Note
VR201 +12V output adjustment DC power PWB
VR203 +24V output adjustment DC power PWB
VR204 +5VN output adjustment DC power PWB
VR205 +3.3V output adjustment DC power PWB
VR402 +5VO, +5VL output adjustment DC power PWB
No. Name Function/ Operation Note
1 ADU reverse gate Switches the paper route: discharged to the inner tray or
discharged to the right tray.
2 ADU gate lower Switches the transport route by switchback when paper is
transported to the duplex (ADU) section.
VR201
VR203
VR205
VR402
VR204
1
2
