Sharp MX-2300 G

MX-2300/2700 N/G SIMULATION 7 – 9

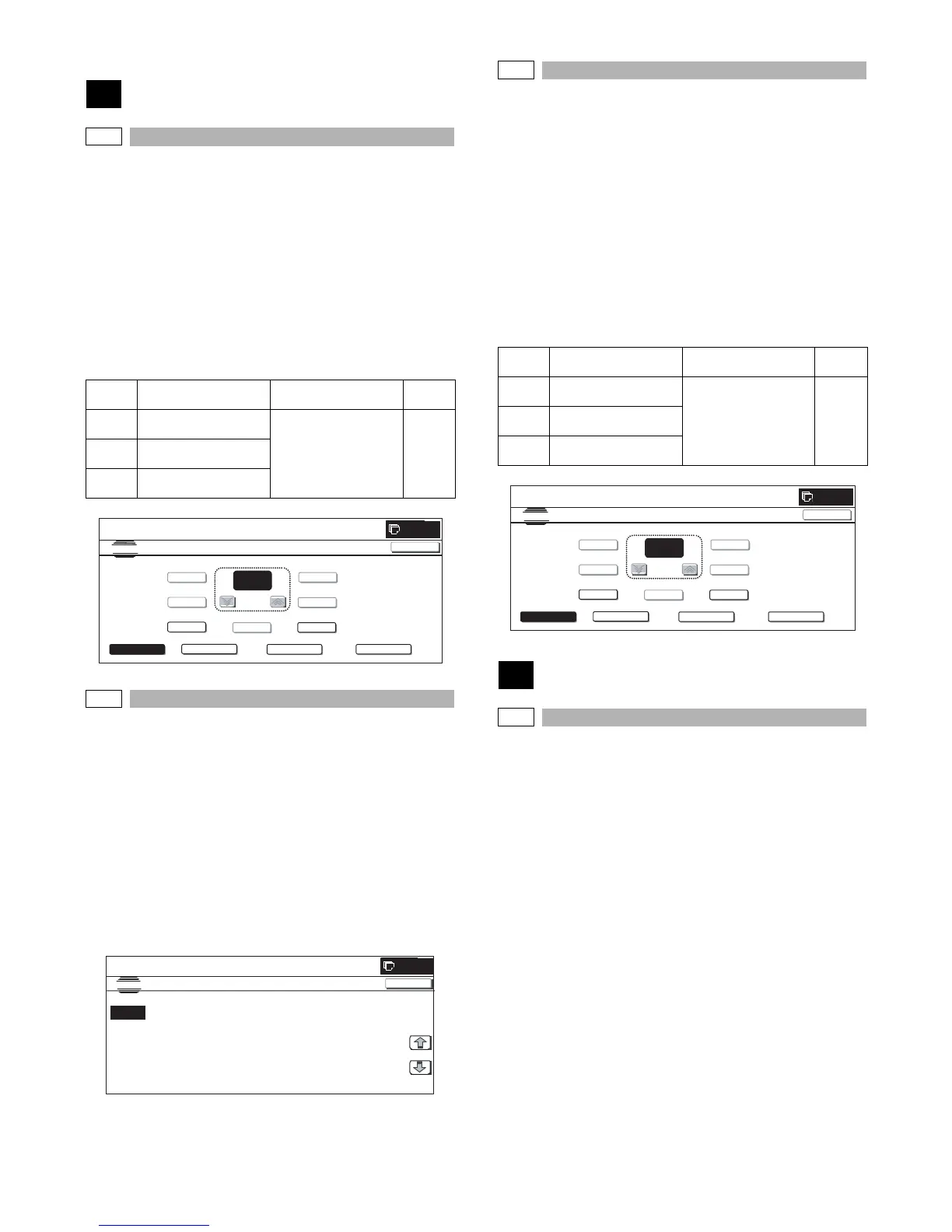

3. Details of simulation
1
1-1
Purpose : Operation test/check
Function (Purpose) : Used to check the operations of the scan-
ner unit and its control circuit.
Section : Optical (Image scanning)
Item : Operation
Operation/Procedure
1) Select the operation mode with the buttons on the touch panel.
2) Select the magnification ratio with [ZOOM] button on the touch
panel.
3) Press [EXECUTE] button.
The scanner scans at the speed corresponding to the opera-
tion mode.
1-2
Purpose : Operation test/check
Function (Purpose) : Used to check the operation of sensor and
detector in the scanning (read) section and
the related circuit.
Section : Optical (Image scanning)
Item : Operation
Operation/Procedure
The sensor and detector operation conditions are displayed.
The active sensors and detectors are highlighted.
• The scanner (read) unit is in the home position.: "MHPS" section
is highlighted.
• The scanner (read) unit is not in the home position.: "MHPS" is
normally displayed.
1-5
Purpose : Operation test/check
Function (Purpose) : Used to check the operations of the scan-
ner unit.
Section : Optical (Image scanning)
Item : Operation
Operation/Procedure
1) Select the operation mode with the buttons on the touch panel.
2) Select the magnification ratio with [ZOOM] button on the touch
panel.
3) Press [EXECUTE] button.
The scanner scans continuously at the speed corresponding to
the operation mode.
When [EXECUTE] button is pressed, the operation is termi-
nated.
2
2-1
Purpose : Operation test/check
Function (Purpose) : Used to check the operations of the auto-
matic document feeder unit and the control
circuit.
Section :RSPF
Item : Operation
Operation/Procedure
1) Select the operation mode with the buttons on the touch panel.
2) Select the aging mode with [1SIDE] and [2SIDE] buttons on
the touch panel.
3) Select the magnification ratio with [ZOOM] button on the touch
panel.
4) Press [EXECUTE] button.
Aging is performed in the mode corresponding to the operation
mode.
* When [EXECUTE] button is pressed during aging, the oper-
ation is terminated and [EXECUTE] button returns to the
original state.
Button
display
Content
Selectable
magnification ratios
Default
value
50 Scan magnification ratio:
50%
COLOR: 50%, 100%,
200%
BLACK (High speed):
100%, 200%
BLACK (Low speed):
50%, 100%, 200%
100%
100 Scan magnification ratio:
100%
200 Scan magnification ratio:
200%
CLOSE
BLACK(SLOW)
0
SIMULATION NO.01-01
SCANNER CHECK
TEST
EXECUTE
150 200
ZOOM
100
%
BLACK(FAST)
COLOR
25
50
100
300
400
0
SIMU LA TI O N  NO.01 㧙 02
TEST
SCAN NER SENSOR CHE CK
MHPS
1/1
CLOSE
Button
display
Content
Selectable
magnification ratio
Default
value
50 Scan magnification ratio:
50%
COLOR: 50%, 100%,
200%
BLACK (High speed):
100%, 200%
BLACK (Low speed):
50%, 100%, 200%
100%
100 Scan magnification ratio:
100%
200 Scan magnification ratio:
200%
CLOSE
BLACK(SLOW)
0
SIMULATION NO.01-05
SCANNER CHECK
TEST
EXECUTE
150 200
ZOOM
100
%
BLACK(FAST)
COLOR
25
50
100
300
400
