Sharp MX-2300 G

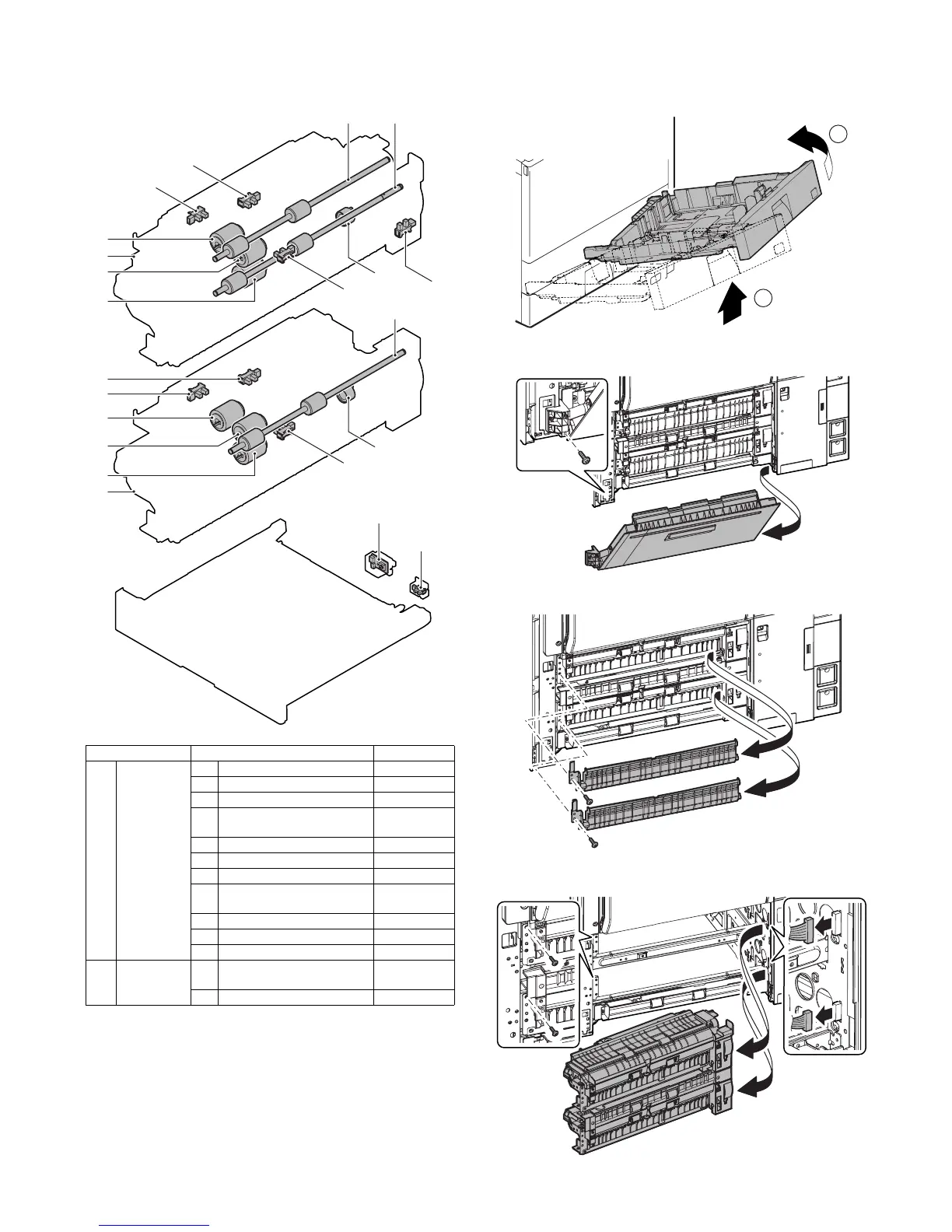

MX-2300/2700 N/G TRAY PAPER FEED SECTION E – 4
3. Disassembly and assembly
A. Tray paper feed section
(1) Remove the tray paper feed unit 1 and 2.
1) Remove the right cabinet front.
2) Remove the tray 1 and 2.
3) Remove the right lower door unit.
4) Remove the paper feed movable PG lower.
5) Remove the paper feed unit 1, 2.
Unit Parts Maintenance
(1) Tray paper
feed unit 1, 2
a Paper pickup roller ✕{
b Paper feed roller ✕{
c Separation roller ✕{
d Tray 1 transport cover
detection
e Transport roller 7 (Drive) ✕{
f Transport roller 4 (Drive) ✕{
g Torque limiter ✕
h Tray 1, 2 paper presence
detection
i Tray 1, 2 upper limit detection
j Tray 1, 2 transport detection
k Transport roller 5 (Drive) ✕{
(2) Others a Tray 1, 2 paper remaining
quantity detection
b Tray 1, 2 presence detection
(1)
(1)
(1)-a
(1)-b
(1)-c
(1)-j
(1)-g
(1)-e
(1)-d
(1)-k
(1)-a
(1)-h
(1)-i
(1)-c
(1)-b
(1)-j
(1)-g
(1)-f
(1)-h
(1)-i
(2)-b
(2)-a
1
2
