Sharp MX-2300 G

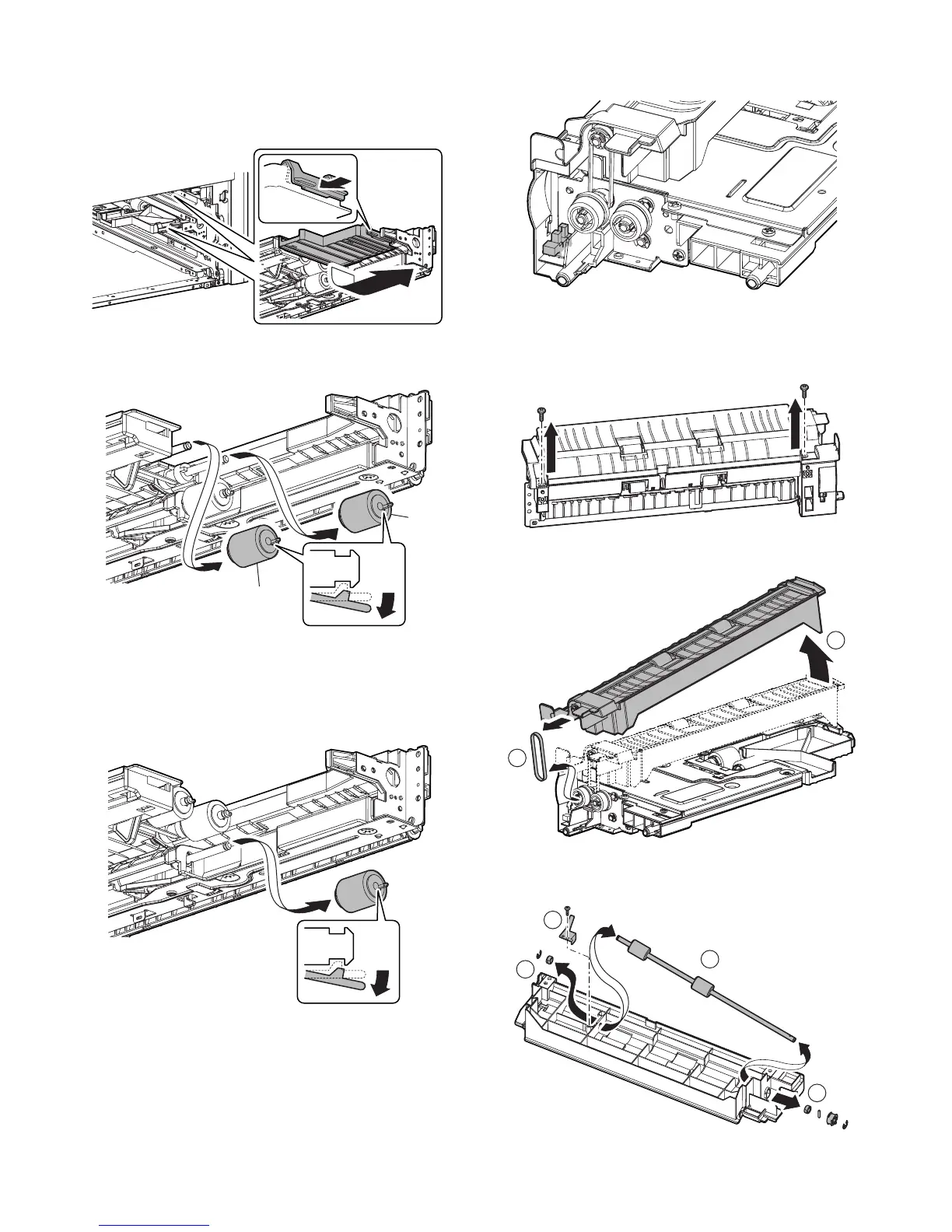

MX-2300/2700 N/G TRAY PAPER FEED SECTION E – 5
a. Paper pickup roller
b. Paper feed roller
1) Remove the tray 1 and 2.
2) Remove the paper guide.
3) Remove the paper pickup roller (a) and the paper feed roller
(b).
c. Separation roller
1) Remove the tray 1 and 2.
2) Remove the paper guide.
3) Remove the separation roller.
d. Tray 1 transport cover opening detection
1) Remove the tray paper feed unit 1.
e. Transport roller 7 (Drive)
1) Remove the tray paper feed unit 1.
2) Remove the screws.
3) Remove the paper feed reverse PG unit, and remove the belt.
4) Remove the grounding plate. Remove the parts. Remove the
transport roller 7 (drive).
a
b
1
2
1
2
3
2
