MX-2300/2700 N/G MANUAL PAPER FEED SECTION D – 4

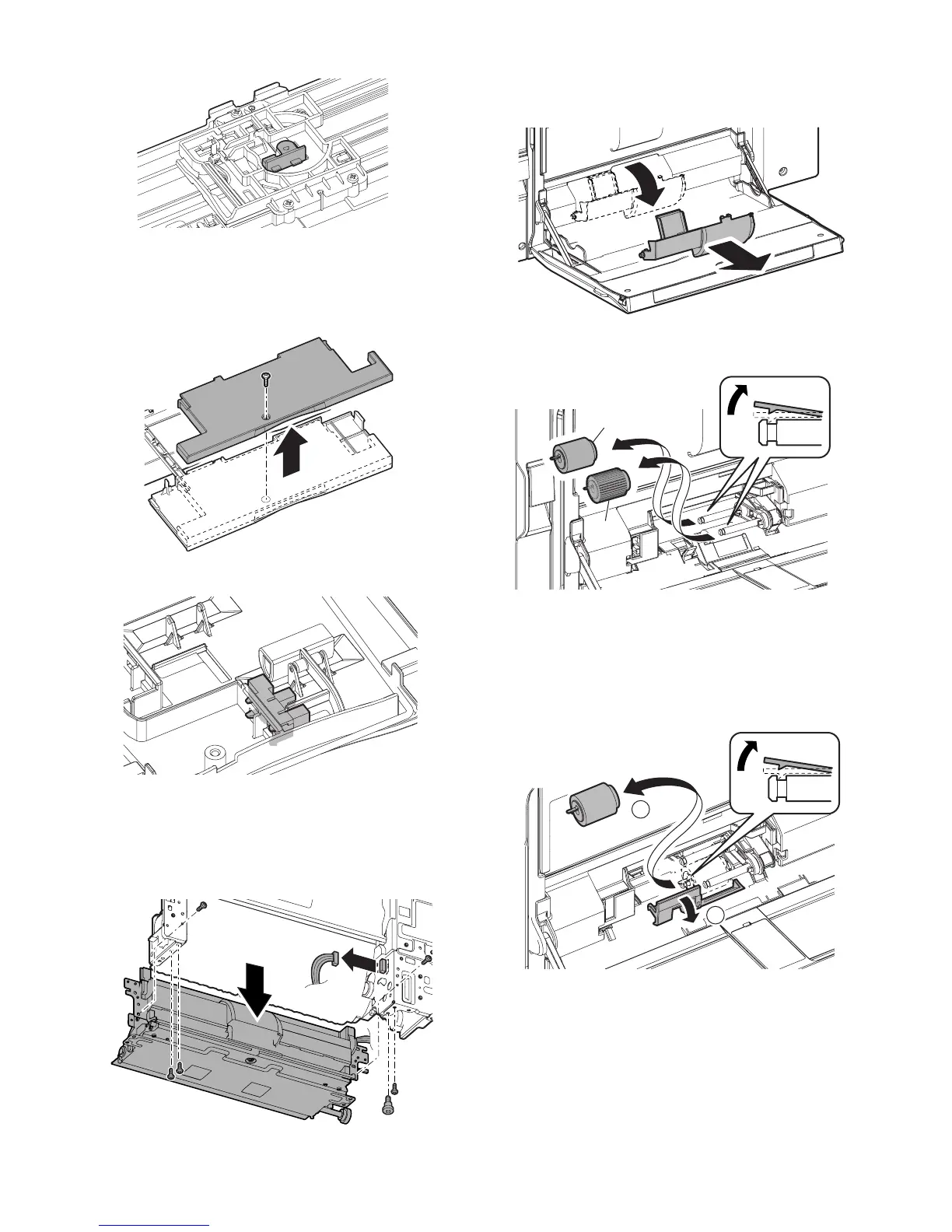

5) Manual paper feed tray paper width detector
e. Manual feed paper length detector
1) Remove the manual paper feed tray unit.
2) Remove the MF tray 2.
3) Remove the MF tray 2 lower.
4) Manual feed paper length detector
(2) Manual paper feed unit
1) Open the right door unit.
2) Remove the manual paper feed tray unit.
3) Disconnect the connector, and remove the manual paper feed
unit.
a. Paper pickup roller
b. Paper feed roller
1) Remove the MF pickup cover.
2) Remove the paper pickup roller (A) and the paper feed roller
(B).
c. Separation roller
1) Remove the MF pickup cover.
2) Remove the paper pickup roller and the paper feed roller.
3) Open the MF lower maintenance cover, remove the separation
roller.
A
B
1
2
