Sharp MX-2300 G

MX-2300/2700 N/G MANUAL PAPER FEED SECTION D – 6

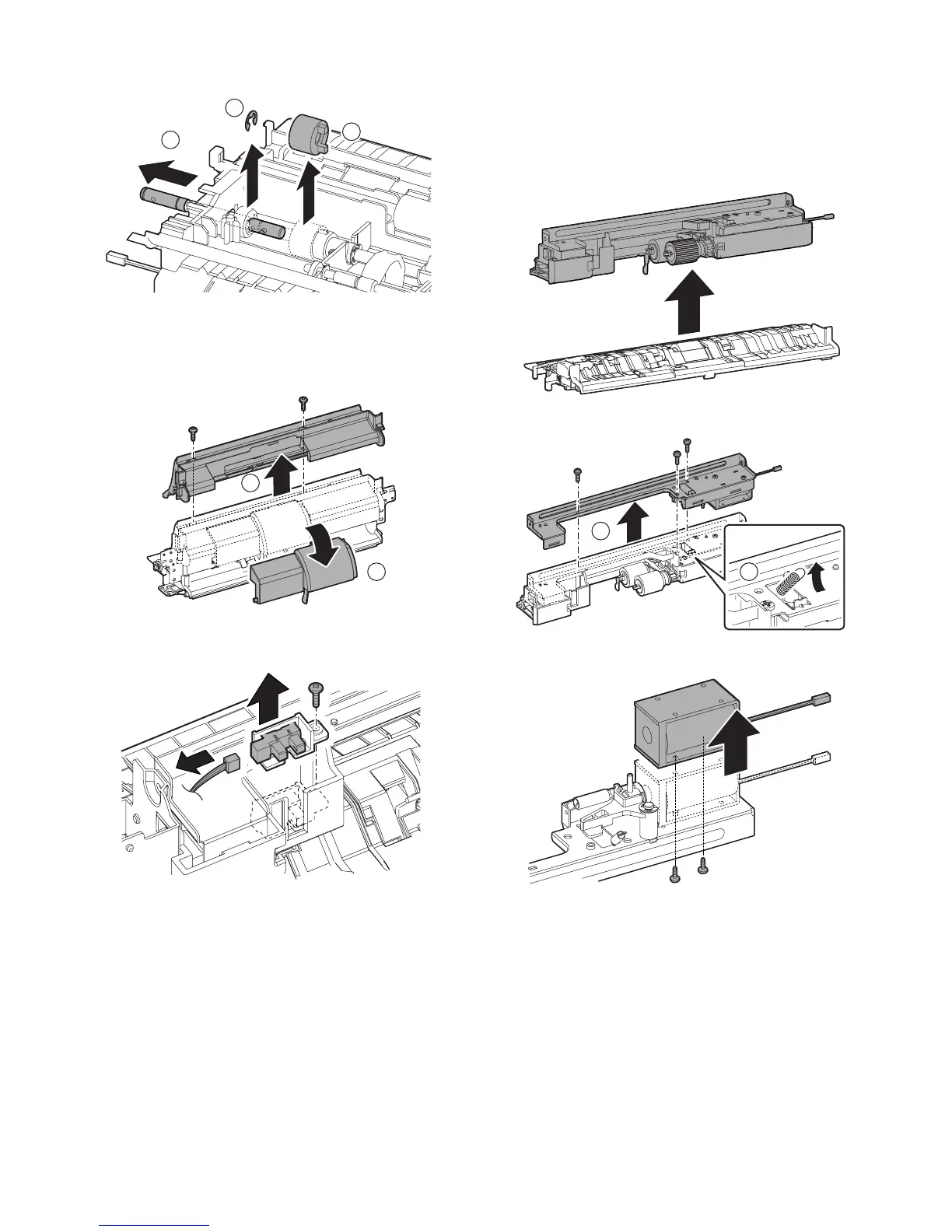

5) Remove the E-ring. Remove the shaft and remove the torque
limiter.
h. Manual feed paper empty detection
1) Remove the manual paper feed unit.
2) Remove the MF pickup cover and the MFADU paper guide.
3) Disconnect the connector, and remove the sensor mounting
plate.
i. Paper pickup solenoid
1) Remove the manual paper feed unit.
2) Remove the MF base guide supporting plate and the spring.
3) Remove the transport roller 12 (Drive).
4) Remove the MF drive plate.
5) Remove the MF front plate.
6) Remove the MF upper base paper guide unit.
7) Remove the MF upper guide supporting plate.
8) Remove the paper pickup solenoid.
1
2
3
1
2
2
1
