Sharp MX-2300 G

MX-2300/2700 N/G PAPER TRANSPORT SECTION F – 3

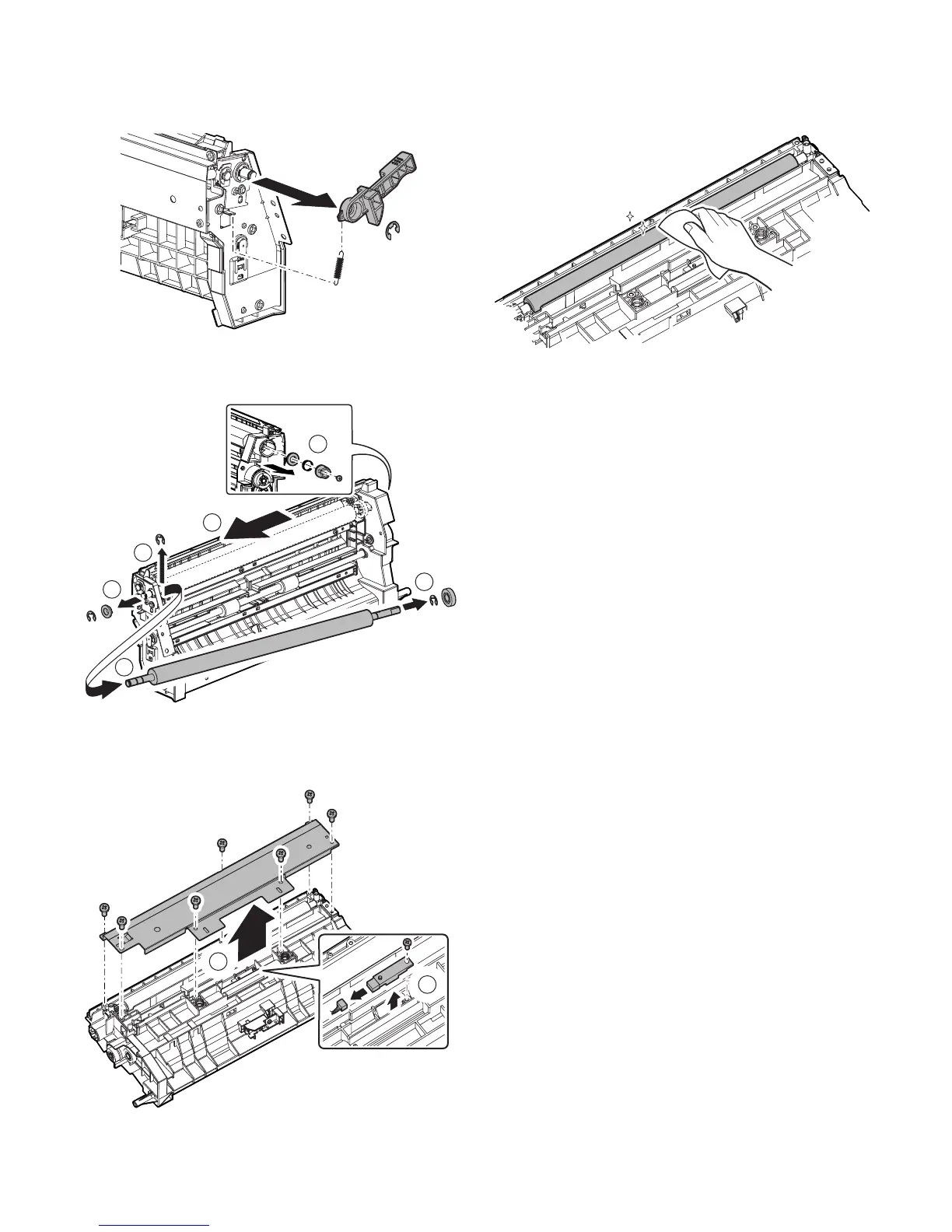

c. Resist roller (Drive)
1) Remove the resist roller unit.
2) Remove the spring and the E-ring. Remove the JAM release
handle.
3) Remove the parts. Slide the resist roller (Drive) to the front
side. Remove the parallel pin, the PS gear, and the E-ring from
the resist roller (Drive).
d. Resist detection
1) Remove the resist roller unit.
2) Remove the PS stay, then remove the resist detector.
e. Resist roller (Idle)
1) Remove the resist roller unit.
2) Remove the PS stay.
3) Clean the resist roller (idle).
1
2
3
5
2
4
1
2
