MX-2300/2700 N/G DEVELOPING SECTION K – 3

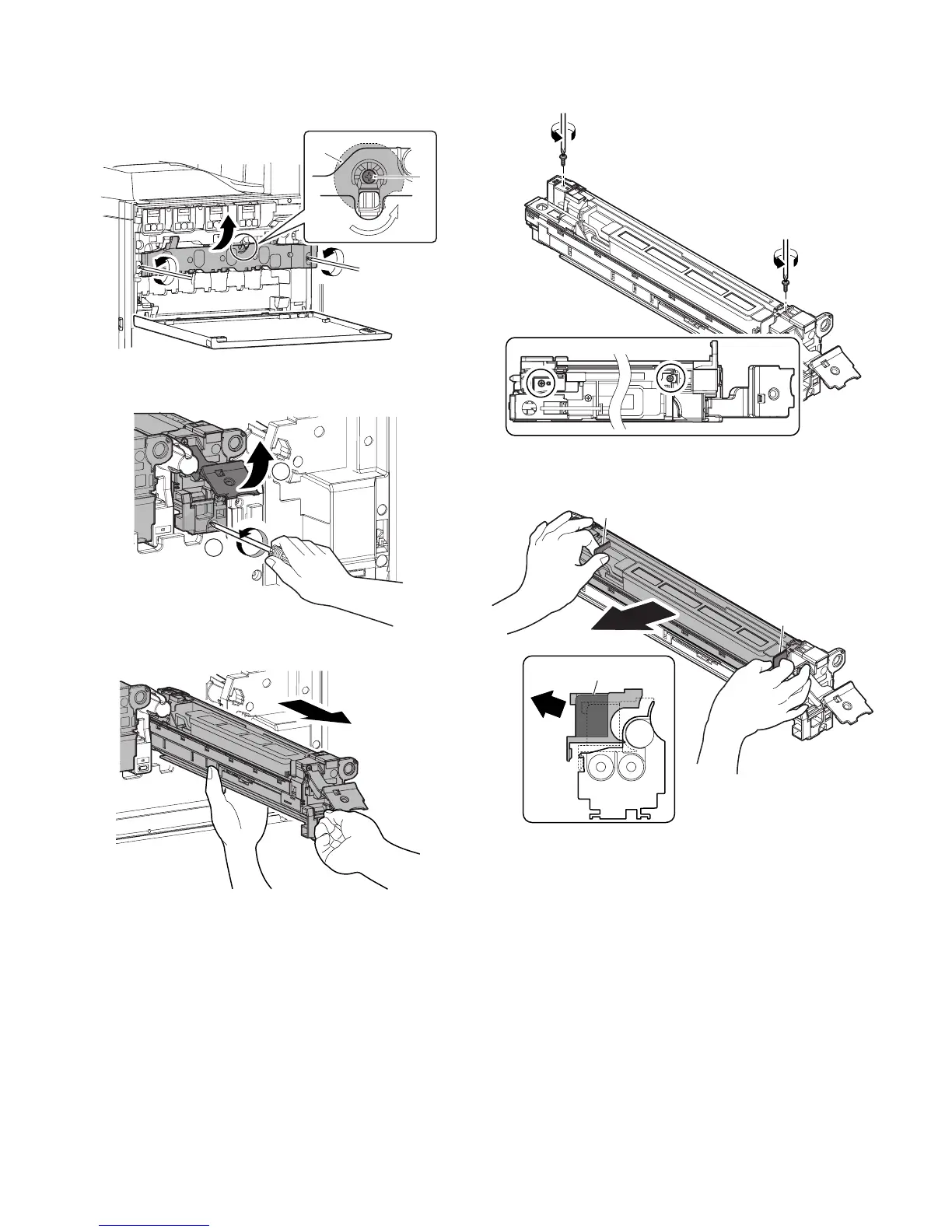

3) Check that the lock is released as shown in (A).
Loosen the blue screw, and open the drum positioning unit.
* When the lock is not released, use a screwdriver to turn the
screw (B) counterclockwise so that it is fit as (A).
4) Open the DV lock lever, and release the fixing screw. (1 posi-
tion for each color)
5) Pinch the knob and remove the development unit.
a. Developer
1) Remove the developing unit.
2) Remove two fixing screws of the DV cover.
3) Hold the sections A, and remove the DV cover in the arrow
direction (B).
A
B
1
2
B
A
B
A
A
