Sharp MX-2300 G

MX-2300/2700 N/G TRANSFER SECTION L – 8

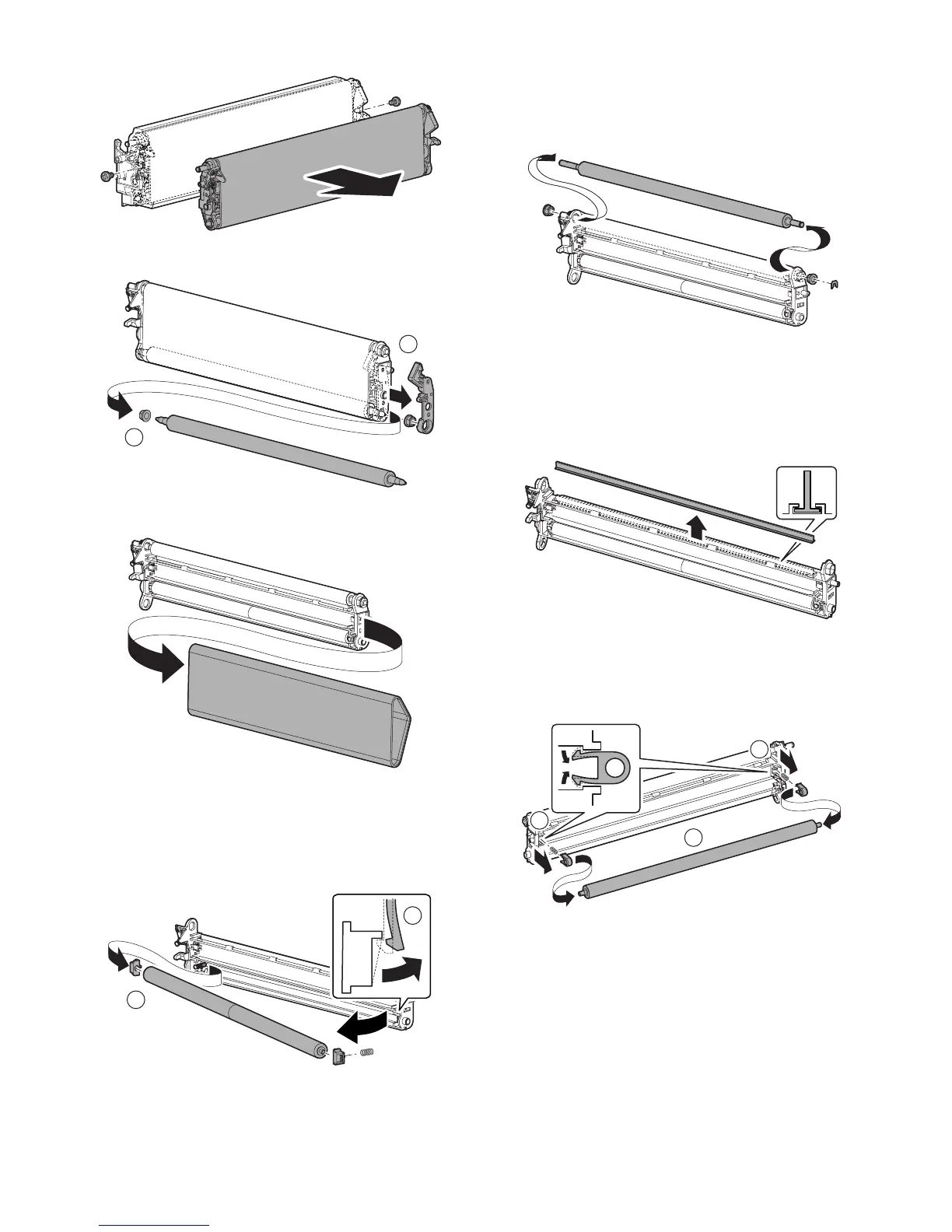

3) Remove the secondary belt transfer frame.
4) Remove each parts, and remove the secondary follower roller.
5) Remove the secondary transfer belt.
d. Secondary transfer roller
1) Remove the secondary trasnfer unit.
2) Remove the secondary transfer belt.
3) Remove the bearing on the front side, and remove the second-
ary transfer roller.
e. Secondary belt drive roller
1) Remove the secondary trasnfer unit.
2) Remove the secondary transfer belt.
3) Remove each parts, then remove the secondary belt drive
roller.
f. Roller cleaning brush
1) Remove the secondary trasnfer unit.
2) Remove the secondary transfer belt.
3) Remove the secondary belt drive roller.
4) Remove the roller CL brush.
g. Secondary belt tension roller
1) Remove the secondary transfer belt.
2) Release the pawl, and remove the secondary belt tension
roller.
1
2
1
2
2
1
1
