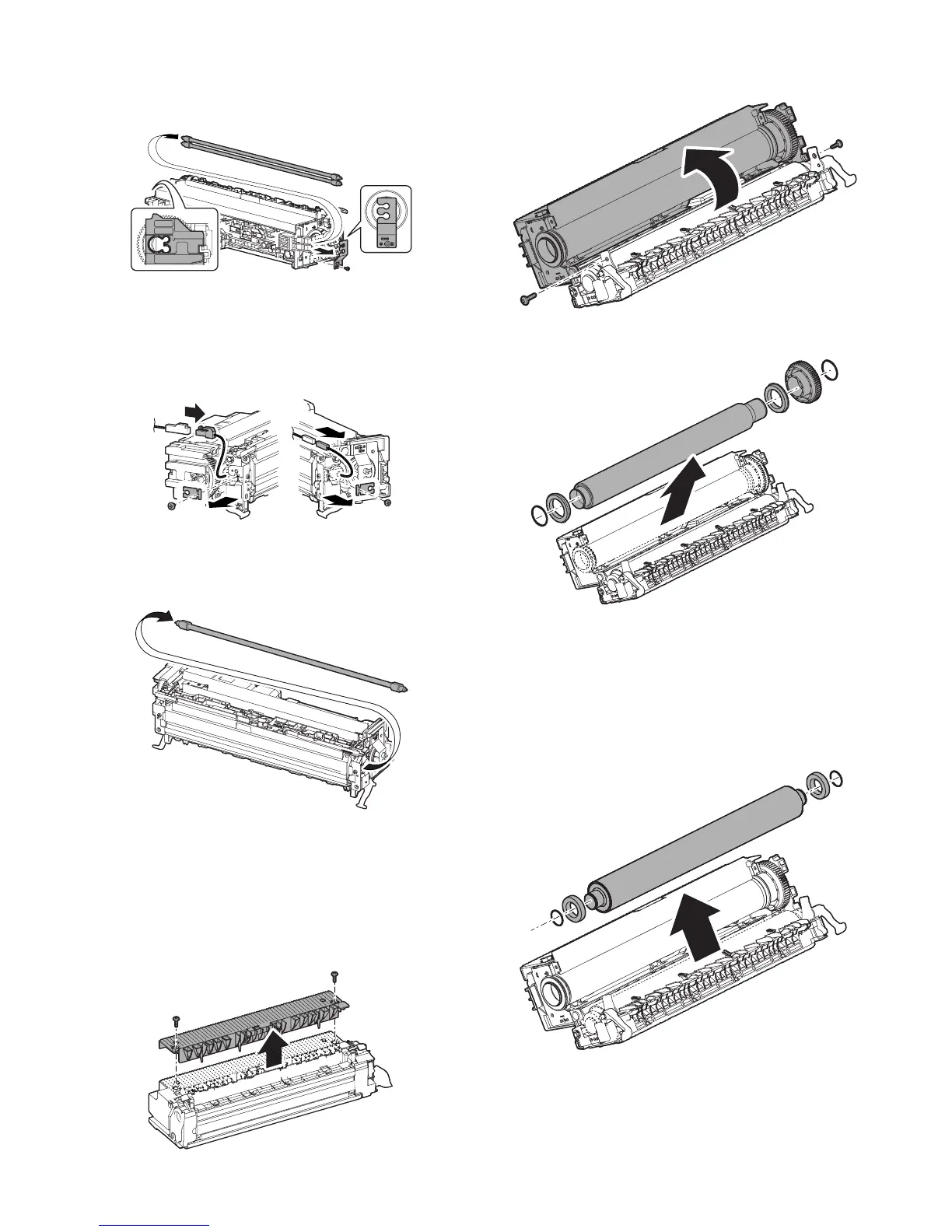

MX-2300/2700 N/G FUSING SECTION N – 5
5) Remove the lamp holder, and remove the lamp.
* Since the connector shape on the front side differ from that
on the rear side, be careful when installing.
Install so that the red harness is on the rear side.
h. Lower heater lamp
1) Remove the fusing unit.
2) Remove the fusing upper cover F.
3) Remove the fusing upper cover R.
4) Disconnect the connector, and remove the lamp holder.
5) Remove the lower heater lamp.
* Since the connector shape on the front side differ from that
on the rear side, be careful when installing.
Install so that the red harness is on the rear side.
i. Upper heat roller
j. Upper heat roller gear
k. Upper heat roller bearing
1) Remove the fusing unit.
2) Remove the upper heater lamp.
3) Remove the fusing rear upper PG.
4) Release the pressure.
5) Open the fusing unit.
6) Remove the upper heat roller unit, and remove the parts.
l. Lower heat roller gear
m. Lower heat roller bearing
1) Remove the fusing unit.
2) Remove the lower heater lamp.
3) Release the pressure, and open the fusing unit.
4) Remove the lower heat roller unit, and remove the parts
To Next Page
