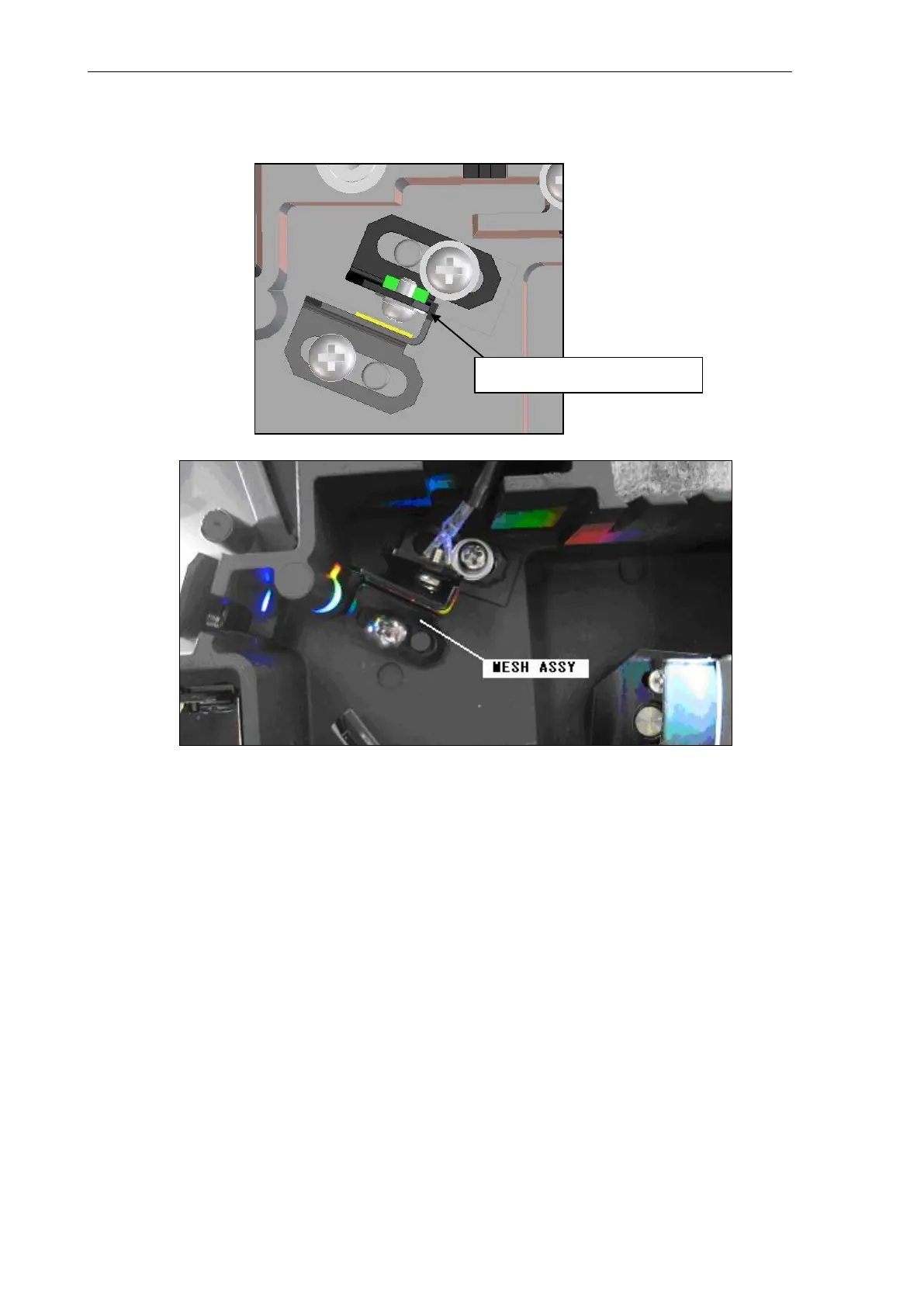

(4) Mount the mesh assembly with the screw (truss, M48) while bringing the mesh assembly
into contact with the PD ASSY as shown in the figure below to prevent light from the EX
grating from directly entering the PD ASSY.
In contact with monitor ASSY
