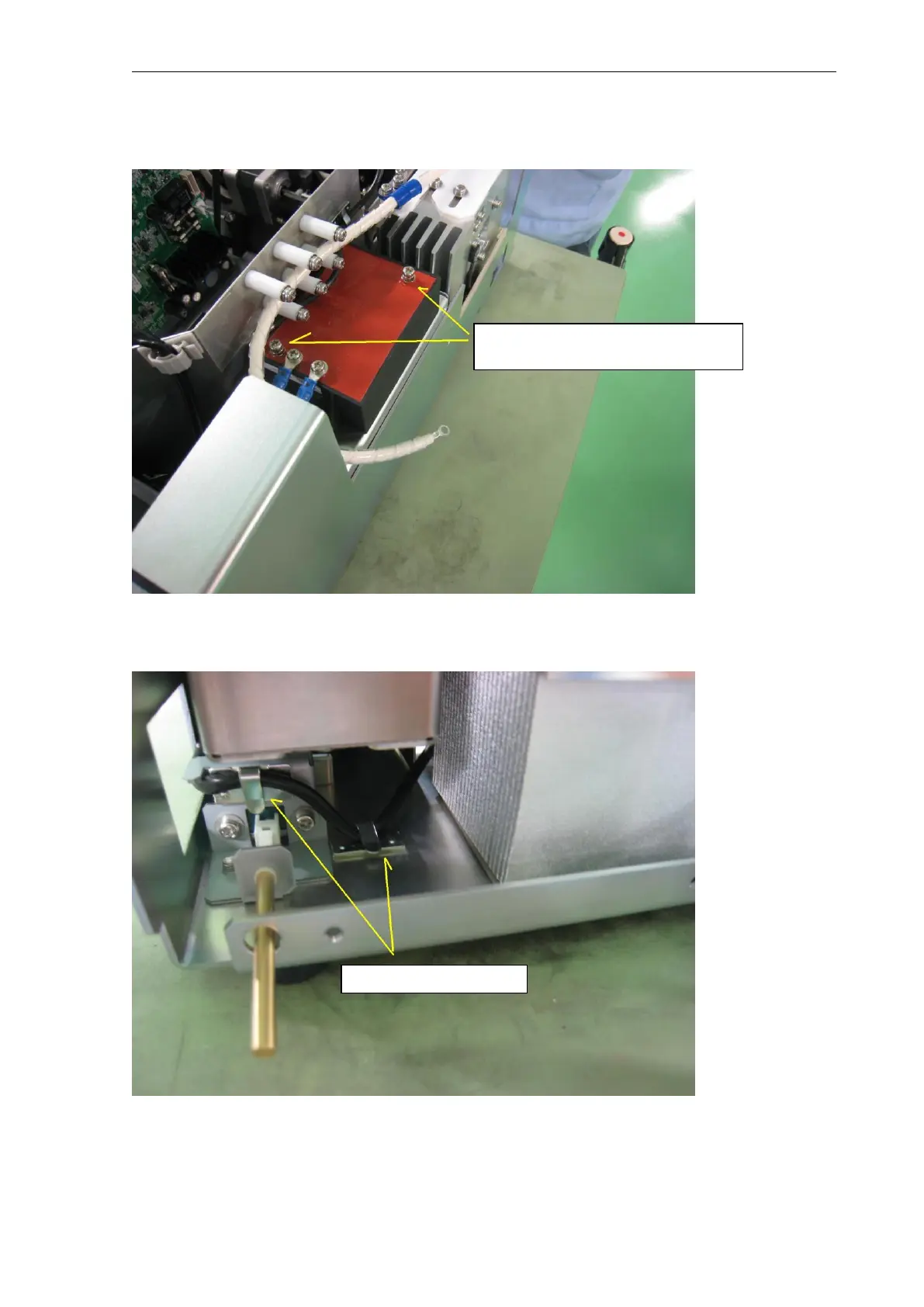

16.2.5 Removing Xenon Power Supply Cable
Loosen the two screws so that the Xenon power supply cable can be removed.
16.2.6 Removing Power Supply Cable
Loosen the two cable clamps so that the power supply cable can be removed.
Clamp,E-20-3C
Xe power supply high-pressure
output terminal (cable fixed screw)
