Shimadzu RF-20A - Type of Photomultiplier (Option) and Replacement Procedure; 15.1 Type and Settable Wavelength Range

- 78 -

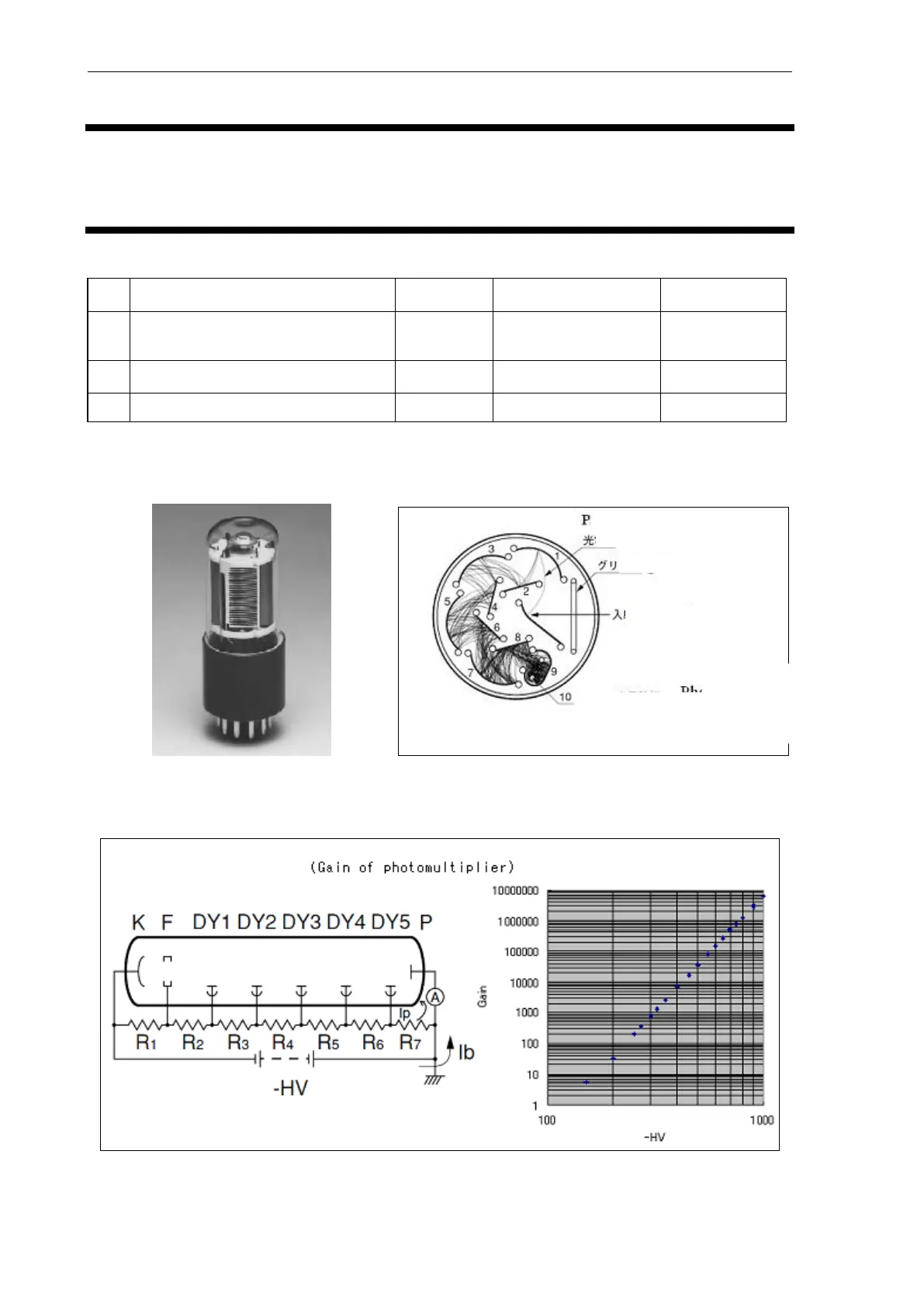

15 Type of Photomultiplier (Option) and Replacement
Procedure
15.1 Type and Settable Wavelength Range
No.
Model
P/N
Settable Wavelength
Range
Remarks
1
Photomultiplier R212 (20A Standard)
Photomultiplier R11568(New 20A
Standard)
200-75033
228-59173
200 to 650 nm
10AXL Standard
2
Photomultiplier R3788 (XS Standard,
20A Option)
200-75031
200 to 750 nm
10AXL Super
Standard
3
Photomultiplier R928-08 (option)
200-75021
200 to 900 nm
15.2 Structure
15.3 Gain
0 = Photocathode
10 = Anode
1-9 = Dynode
Photoelectron
Grid
Incident ray
