Shimadzu RF-20A - 14.3 Flow Cell for Inert LC (Option)

77
14.3 Flow Cell for Inert LC (Option)
14.3.1 Specifications
1
Flow Cell for Inert LC
P/N: 228-51951-91
2
Cell Capacity
12 μL
3
Capacity from Inlet Pipe Tip to Center of Cell
16 μL
4
Capacity from Center of Cell to Pipe Tip
16 μL
5
Cell Pressure Resistance
2 MPa {19.7 kgf/cm
2
}
6
Wetting Parts Materials
Quartz, PTFE, PEEK
7
Inlet Pipe
I.D.: 0.25 mm Length: 110 mm Materials: PEEK
8
Outlet Pipe
I.D.: 0.25 mm Length: 125 mm Materials: PEEK

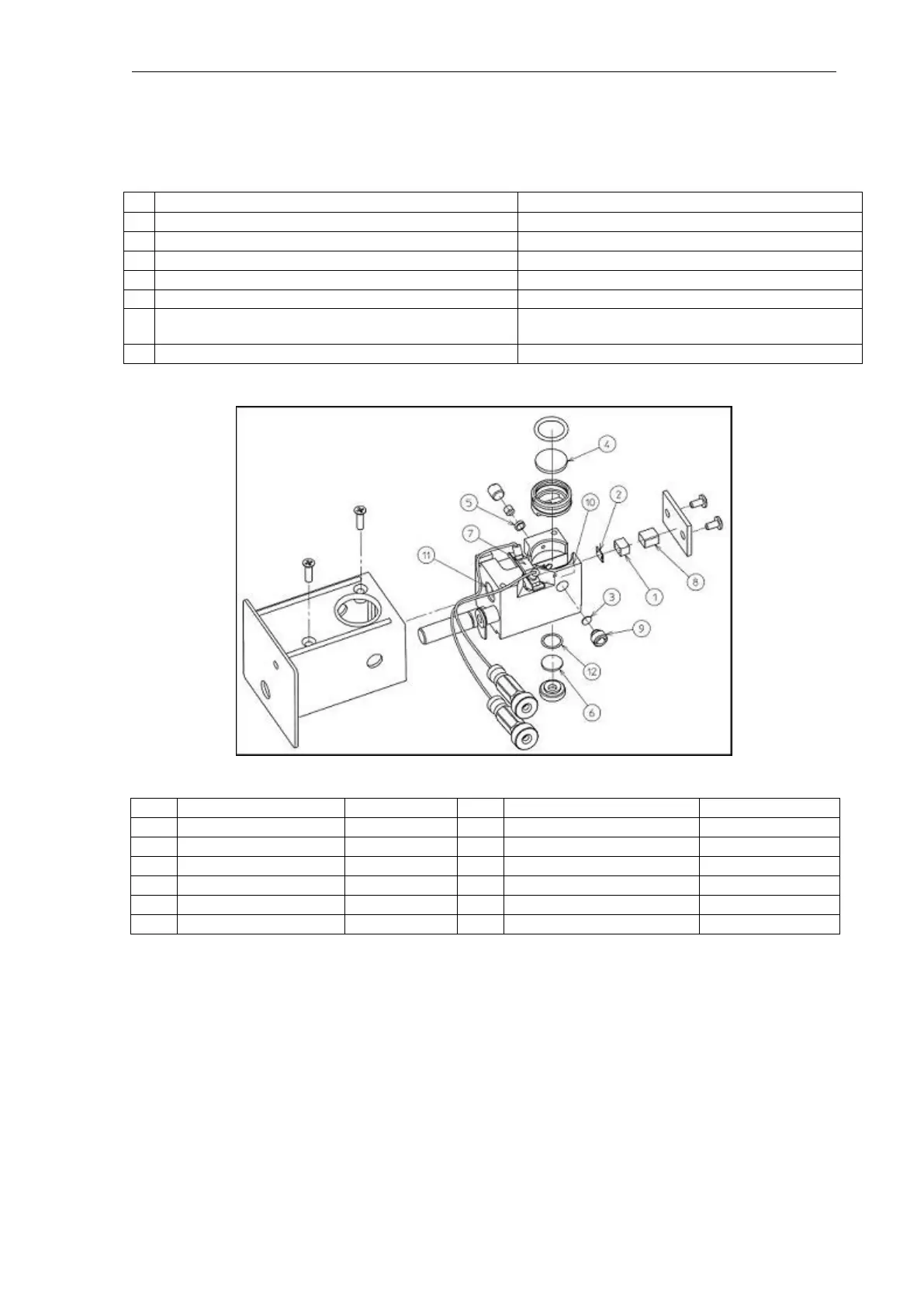

14.3.2 Cell Structure
14.3.3 Inert Cell Maintenance Parts List
No.
Part Name
P/N
No.
Part Name
P/N
1
Flow Cell
228-48626
7
Block, Bushing, Inert
228-51292
2
Gasket, Cell
228-50422-03
8
Cell Block, PEEK
228-45868-01
3
Lens, Cell EX
228-48699-01
9
Fixing Screw, EX Cell
228-51949-01
4
Lens, Cell, EM
228-48700
10
Slit, EX Cell
228-45878
5
Mirror, Cell EX
228-52285-91
11
Fixing Screw, Cell Joint
228-50389
6
Mirror, Cell, EM
228-52286-91
12
Gasket, EM Mirror
228-45869
