14 Flow Cell Unit
14.1 Standard Flow Cell Unit

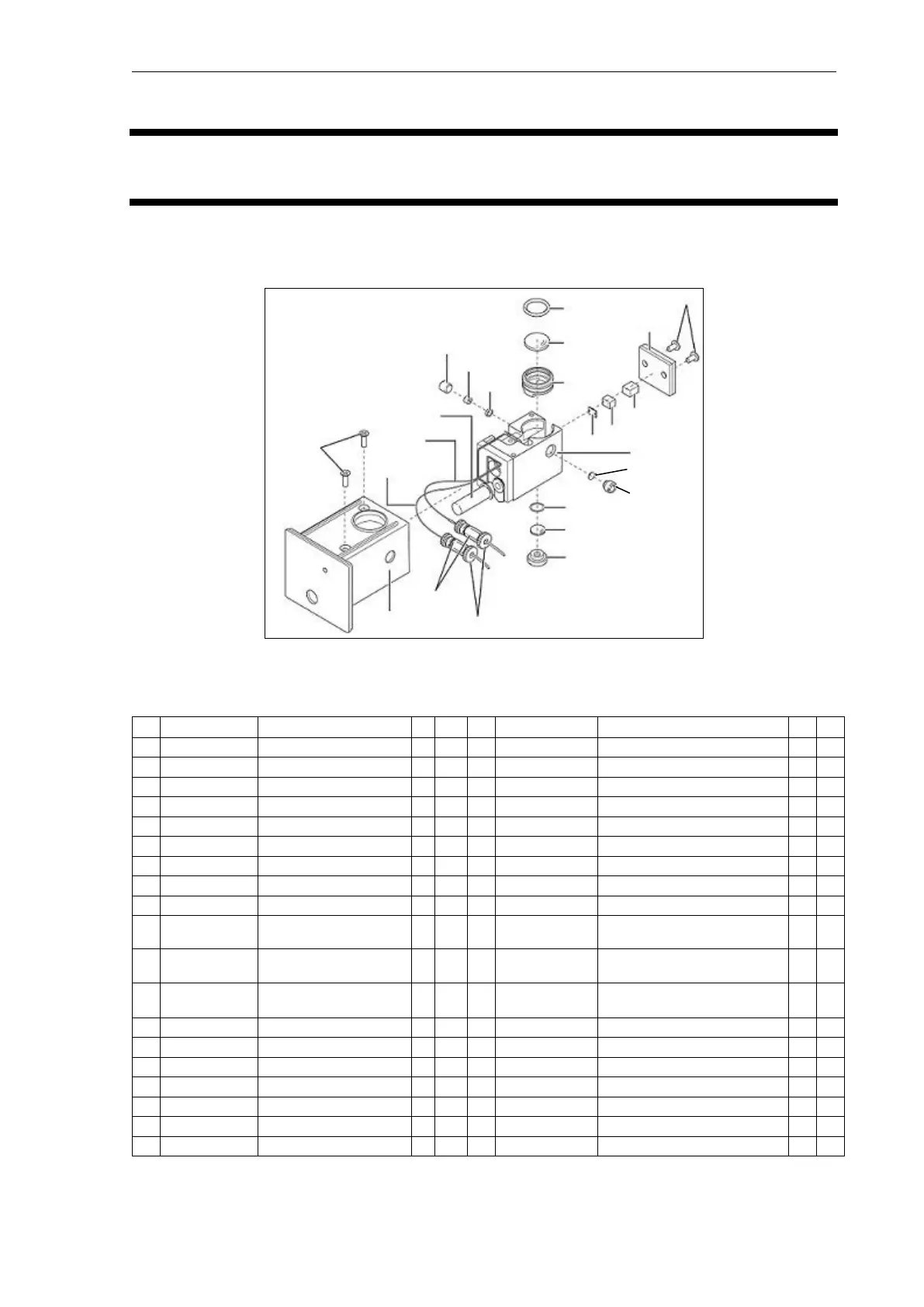

14.1.1 Cell Structure
14.1.2 Parts Used List
This is a list of parts used not a list of maintenance parts. For this reason, not all of these parts are in
stock.
No.
P/N
Part Name
XS
20A
No.
P/N
Part Name
XS
20A
1
228-45858-91
EM Mirror Holder ASSY
1
16
228-48696
RF-20 Cell Mirror, EM
1
1
2
228-45866-91
EM Cell Lens ASSY
1
17
228-48699-01
Lens, Cell EX
1
1
2
228-48700
Lens, Cell EM
1
18
228-50389
Fixing Screw, Cell Joint
1
1
3
228-50843-91
Joint ASSY, 20AXS
1
19
228-50422-03
Gasket, Cell
1
1
3
228-50843-92
Joint ASSY, 20A
1
20
228-51067-01
Cell Housing
1
4
228-51444-01
Positioning Plate
1
20
228-51067-02
Cell Housing
1
4
228-51444-02
Positioning Plate
1
21
034-00001
Disc Spring, SUS H-1
8
8
5
228-51108
Sponge, Cell Plate
1
22
026-66213
Retainer Ring, E-type SUS 5
1
1
6
228-45868-01
Cell Block, PEEK
1
23
020-46535
Screw, SUS SEMS P3 M38
1
6
228-51177
Block, PEEK, Cell
1
24
023-66050-01
Washer, SUS Plain, Small,
Round 5
1
1
7
228-45869
Gasket, EM Mirror
1
1
25
020-37501
Screw, SUS Self-Tapping
M36
2
2
8
228-45873
Spacer, Cell Joint
1
1
26
021-01528
Set Screw, SUS Recessed
M36
1
1
9
228-51949
Fixing Screw, EX Cell 2
1
1
27
036-15500-14
O-Ring, AS568A-014 1A
1
10
228-45875
Fixing Screw, Housing
1
1
28
228-51176
Gasket, EM Lens
1
11
228-45878
Slit, EX Cell
1
1
29
020-05133
Screw, SUS Pan Head M35
1
12
228-45883
Waste Guide, Cell
1
1
30
021-01701-21
Set Screw, M6 Slotted
1
1
13
228-45885
Sponge, Front, Cell
1
31
037-38826-01
Spacer, PTFE (CT2003)
1
1
14
228-48626
Flow Cell
1
1
32
037-38827-01
Spacer, PTFE (CT508)
1
15
228-48695
Mirror, Cell EX
1
1
33
037-38760-07
Bushing, D5260-2130
1
1
Screws
Cell housing
fixing screws
Cell inlet
pipe
Cell outlet pipe
Excitation-side mirror fixing screw
Spacer
Excitation-
side mirror
O-ring
Emission-
side lens
Lens holder
Screws
Spacer
Rear plate
Cell
Cell gasket
Cell housing
Excitation-
side lens
Excitation-side
lens fixing screw
Packing
Emission-side mirror
Emission-side mirror
fixing screw
Cell cover
Couplings
1.60.8
Male nut PEEK
