Shimadzu RF-20A - 6.3 List of Jigs

17

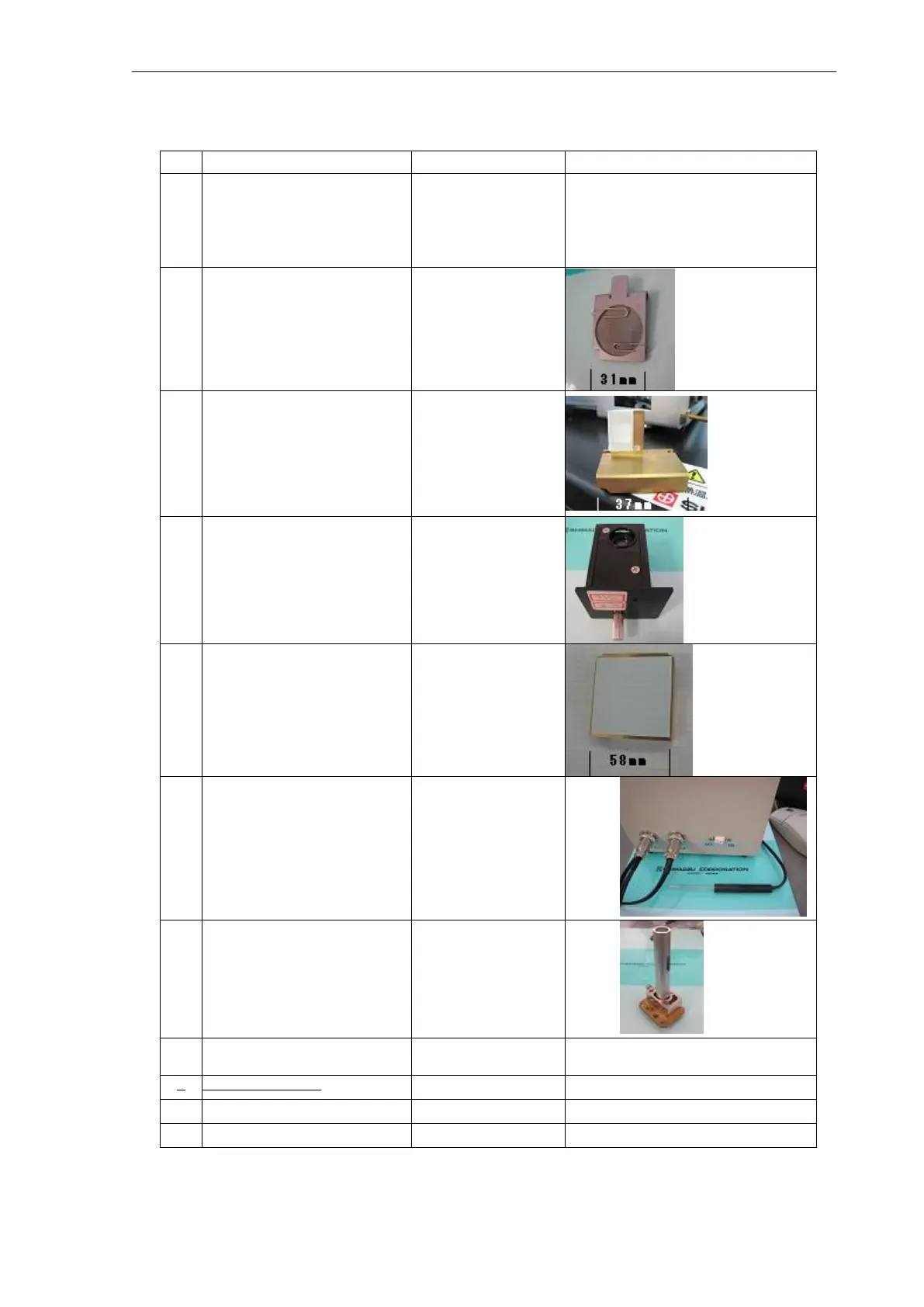

6.3 List of Jigs
The following jigs are required for optical adjustments.
No.
Jig
P/N
1
M4 Spacer
037-38898-53
or equivalent
Handle for moving the light source
mirror,
Length (excluding male screw): 30,
female screw: M425.5, male
screw: M48,
2
EX Filter
(mesh filter)
228-52012-91
3
Cell Position Target Jig
228-52369-91
4
PTFE Block Cell ASSY
228-52024-92
5
Target, GREM
228-52368-91
6
Low-pressure Hg (Mercury)
Lamp
200-38423
or
207-21594-41
For 20A
7
Low-pressure Hg (Mercury)
Lamp Holder
228-51952-91
or
228-51952-41
For 20A
8
TORX Screwdriver
Screwdriver size T10
TORX: hexalobular
For optical adjustment of the back
mirror
9
Black-out Curtain
9
Gloves
10
Protective Goggles
For cutting out UV
