34

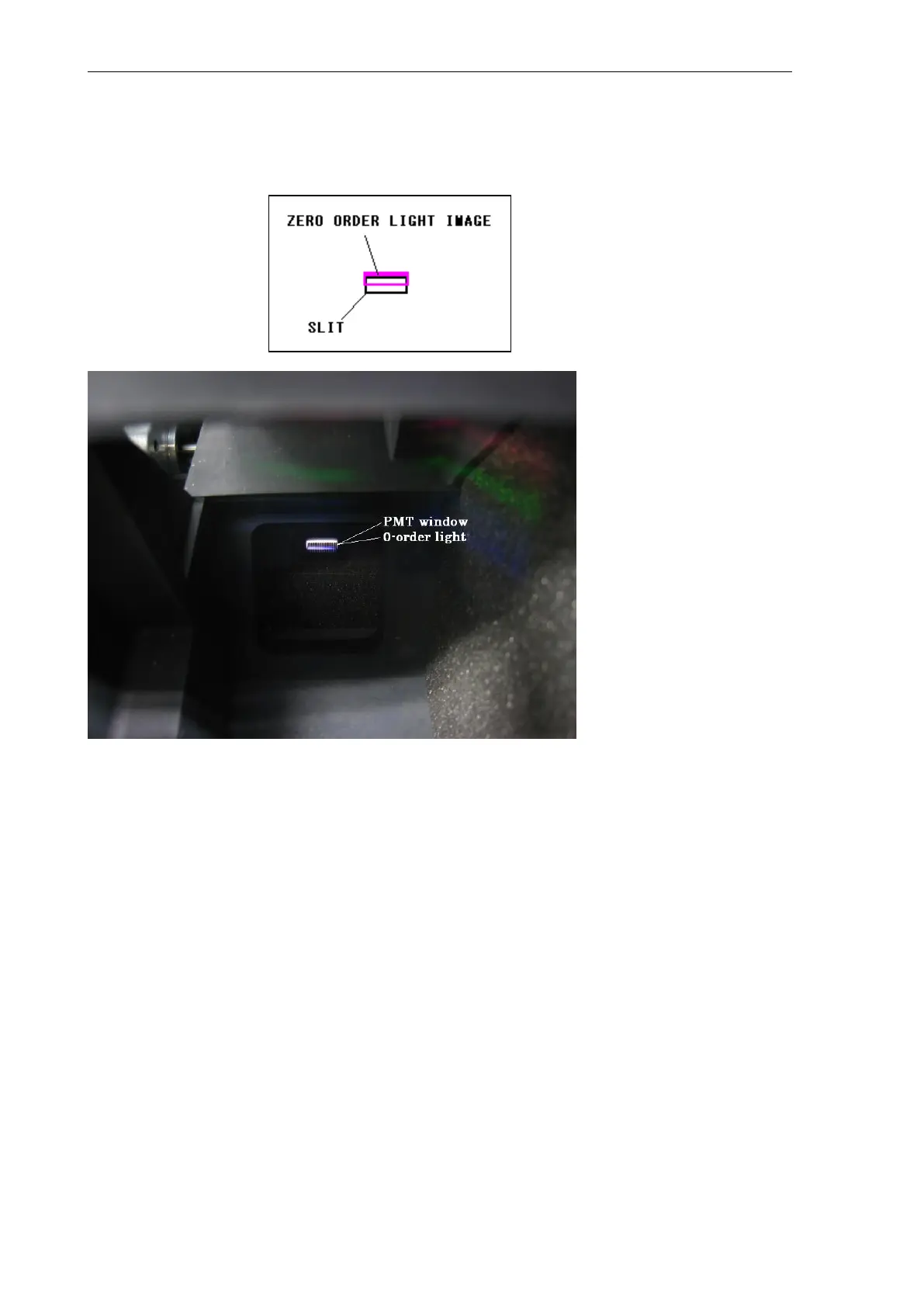

6.11 Adjusting the EM Grating
(1) Fine-adjust the EM grating at "EM PULSE" so that 0-order light is cleanly incident to
the slit opening on the EM outlet side.
