SICK EtherNet/IP AFS60 User Manual

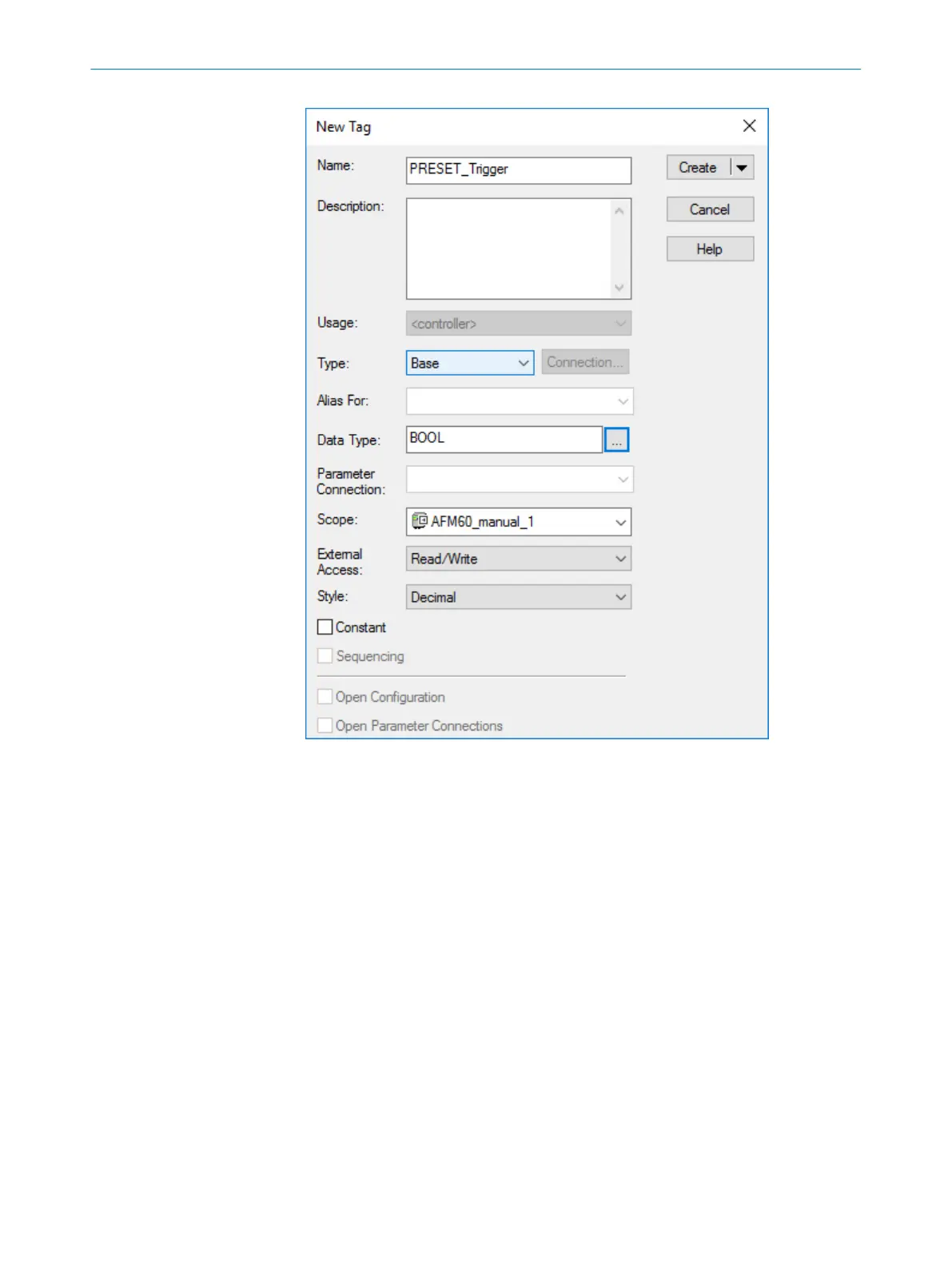

Figure 85: Definition of variable PRESET_Trigger
2. Enter PRESET_Trigger in the Name field, select the BOOL data type in the Data Type
field and click on OK.
To trigger the process only once, another element, in this case edge-sensitive,
must be defined and declared. This causes the process to be triggered only when
an edge change of variable PRESET_Trigger from 0 to 1 occurs.
3. Select New Tag again.
CONFIGURATION USING A PLC
5
8014213/1EF3/2021-12-08 | SICK O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP
83
Subject to change without notice
