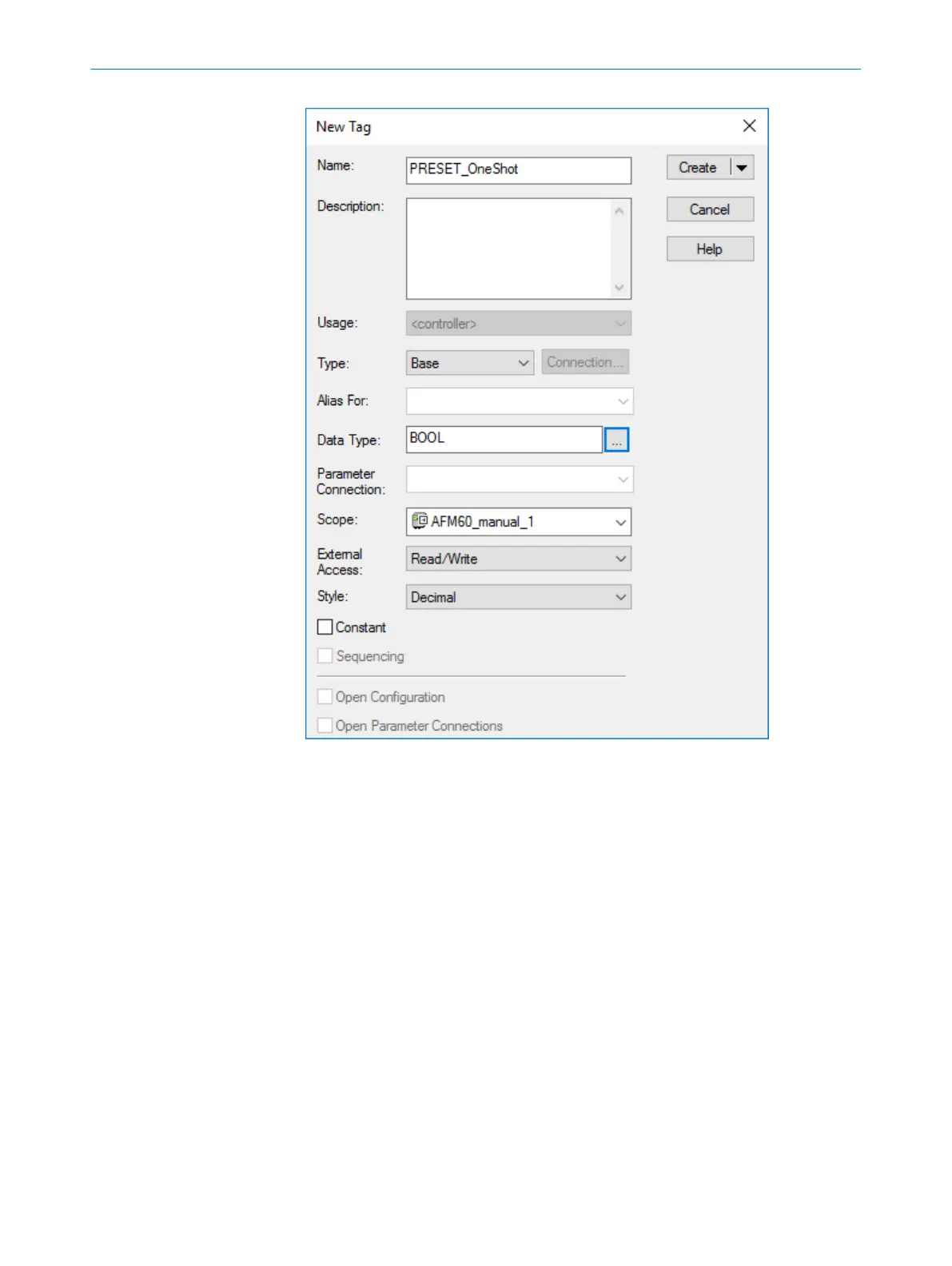

Figure 86: Definition of variable PRESET_OneShot
4. In the New Tag dialog, enter PRESET_OneShot in the Name field, select the BOOL
data type in the Data Type field and click on OK.
Another variable must be created which will later contain the preset value (see
table 24, page 29, attribute ID 13h, preset value).
5. Select New Tag again.
5
CONFIGURATION USING A PLC
84
