SPECIFICATIONS 10

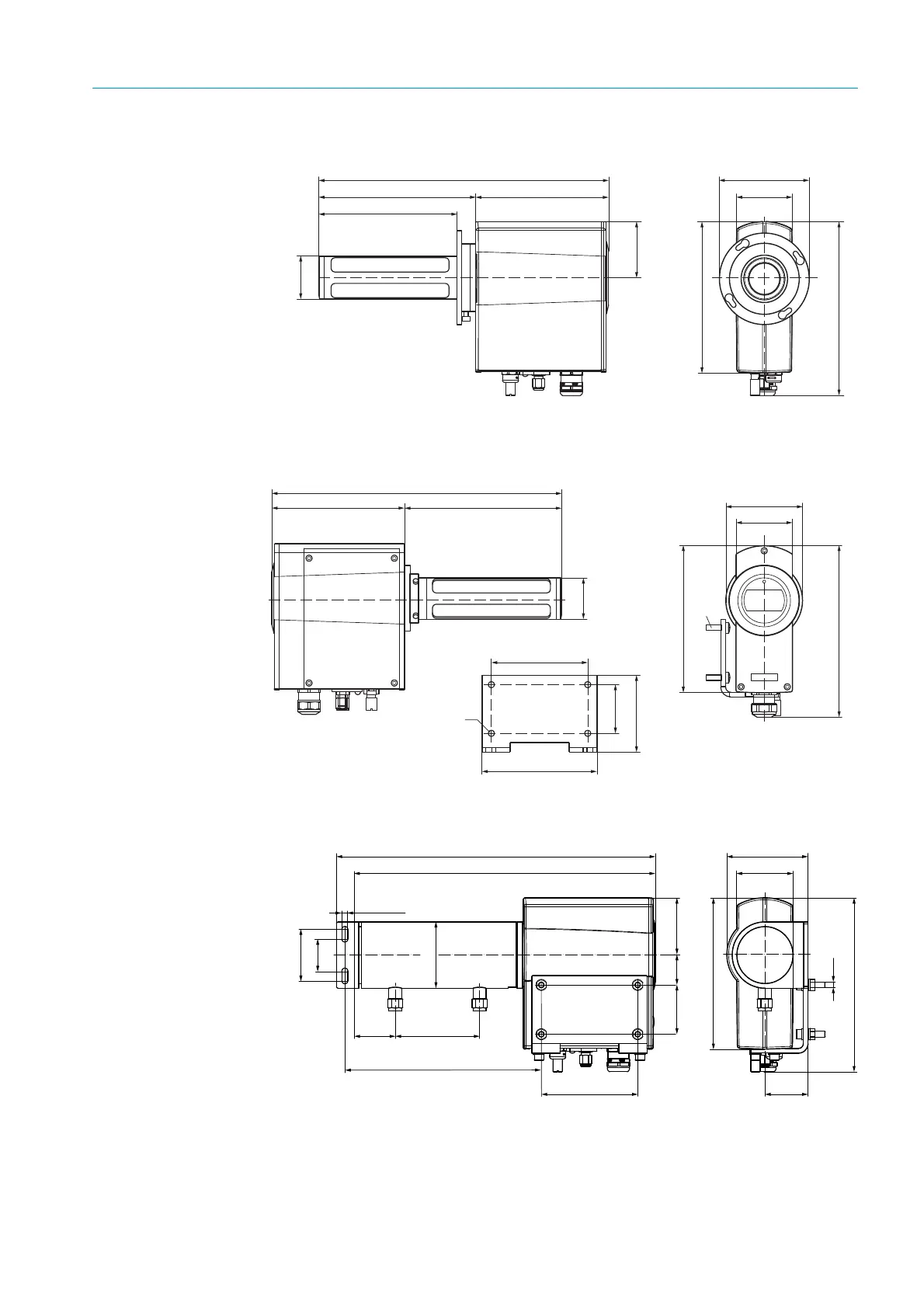

Fig. 47: TRANSIC111LP with flange adapter for process measurements
Fig. 48: TRANSIC111LP with wall bracket for ambient measurements
Fig. 49: TRANSIC111LP with wall bracket and sample gas cell
186 (7.32)
310 (12.20)
141 (5.55)
Ø 44
(1.73)
60 (2.36)
159 (6.26)
59 (2.32)
Ø 97 (3.82)
169 (6.65)
148 (5.83)
All specifications in mm (inches)
310 (12.20)
141 (5.55) 169 (6.65)
186 (7.32)
159 (6.26)
M6
Ø 82
(3.23)
59 (2.32)
Ø 44
(1.73)
52 (2.05)
82 (3.22)
103 (4.06)
123 (4.84)
Ø 6.5 (0.26)
All specifications in mm (inches)
341 (13.43)
322 (12.68)
Ø 70
(2.76)
M6
60 (2.36)
159 (6.26)
59 (2.32)
87 (3.43)
34
(1.34)
54 (2.13)
6.5 (0.26)
186 (7.32)
46 (1.81)103 (4.06)
31.5
(1.24)
52 (2.05)
44 (1.73) 90 (3.54)
210 (8.27)
All specifications in mm (inches)
