10.5 Mounting Holes for 100 mm Devices

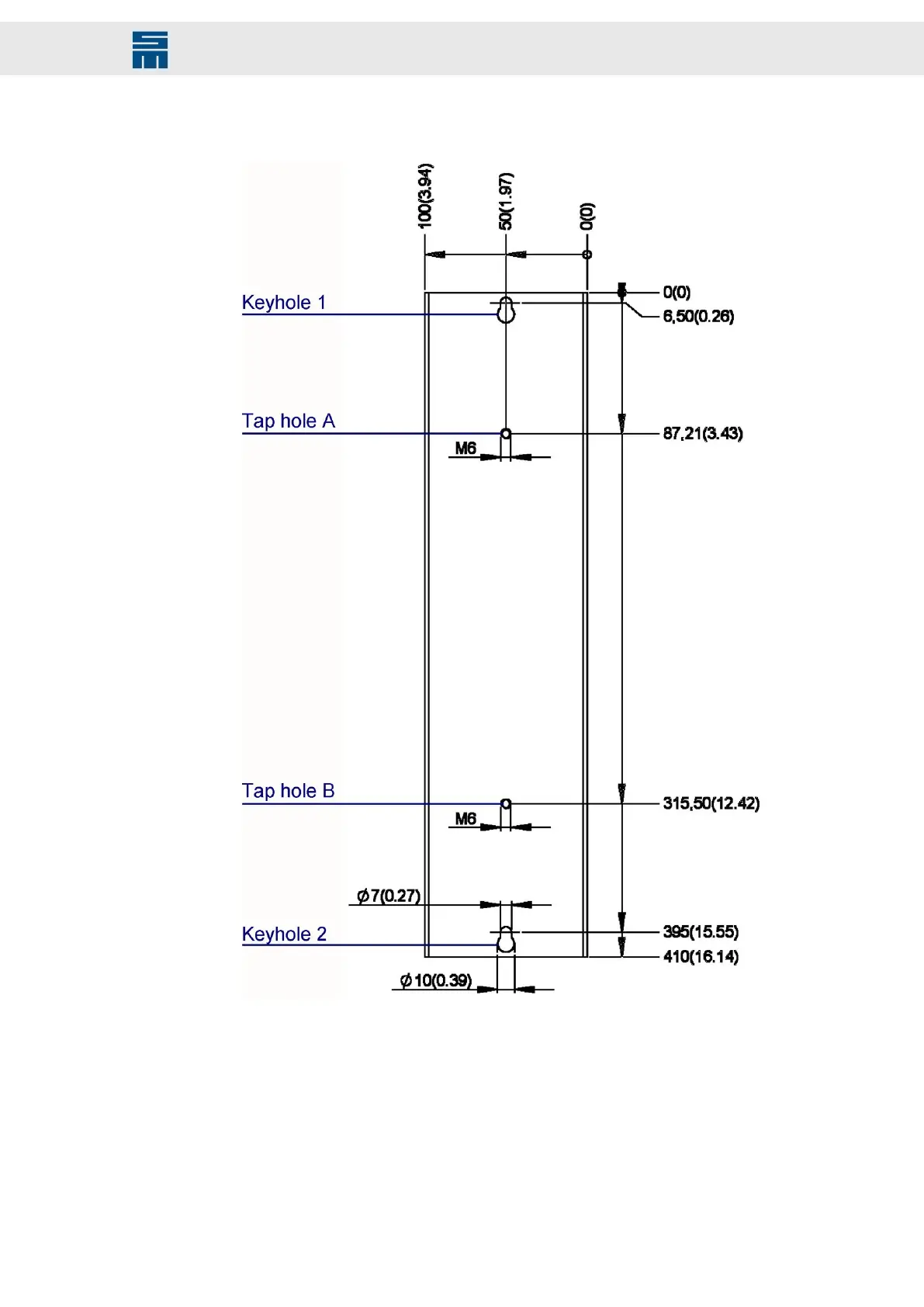

Fig. 79: Dimensions in mm (inch)

▸

A rear panel heat sink with liquid cooling or an extruded heat sink is to be fastened

at the keyholes 1 and 2.

▸

A high performance heat sink is to be fastened at the tap holes A and B.

103Drive System SD2 - Hardware Description

Mounting Example with External Heat Sink

Default Chapter3
- Table of Contents3
