Mounting Example with External Heat Sink

10.6 Mounting Holes for 130 mm Devices

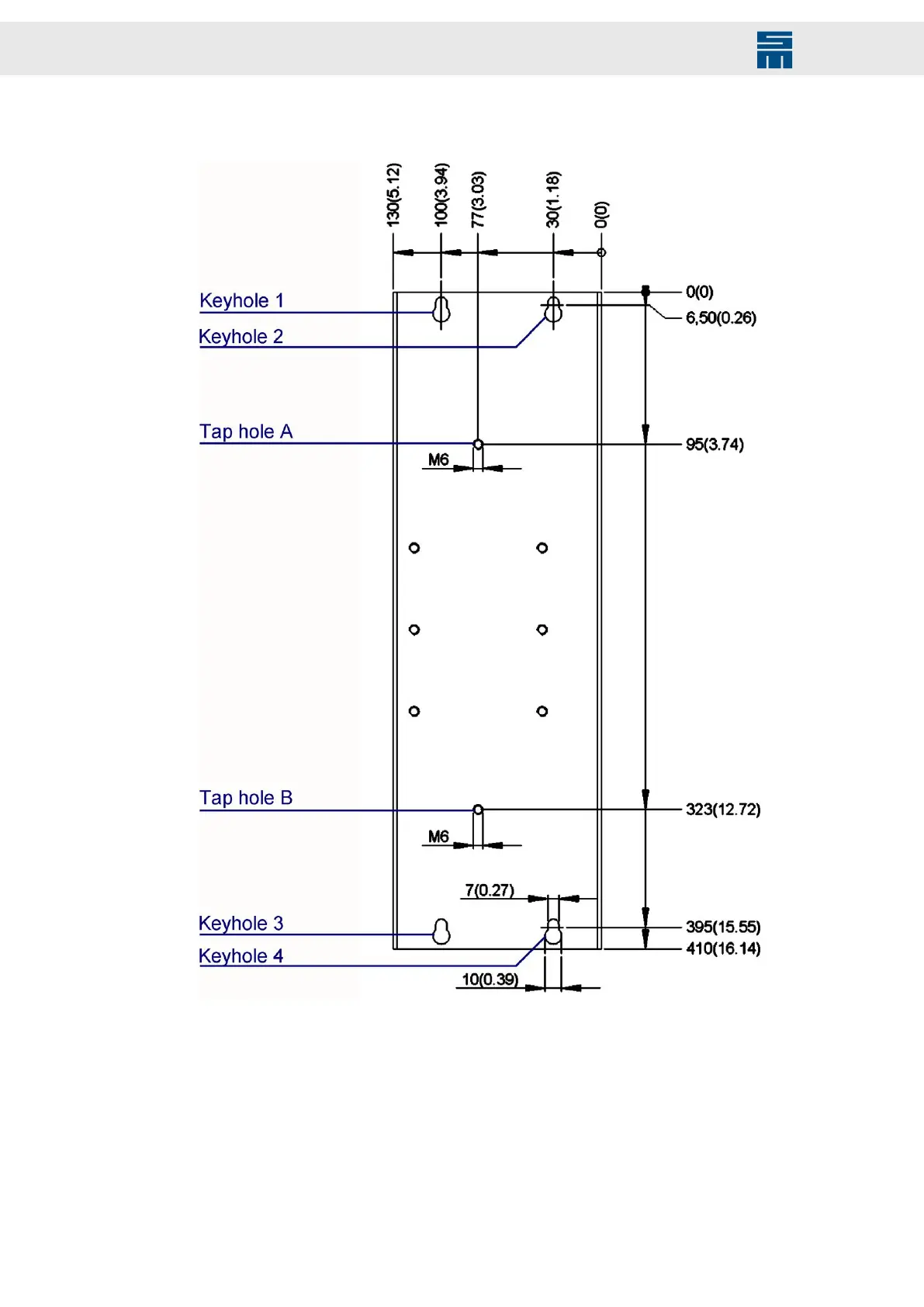

Fig. 80: Dimensions in mm (inch)

▸

A rear panel heat sink with liquid cooling or an extruded heat sink is to be fastened

at the keyholes 1 to 4.

▸

A high performance heat sink is to be fastened at the tap holes A and B.
