Double-axis Drive Amplifiers

7.1.1 Dimensions

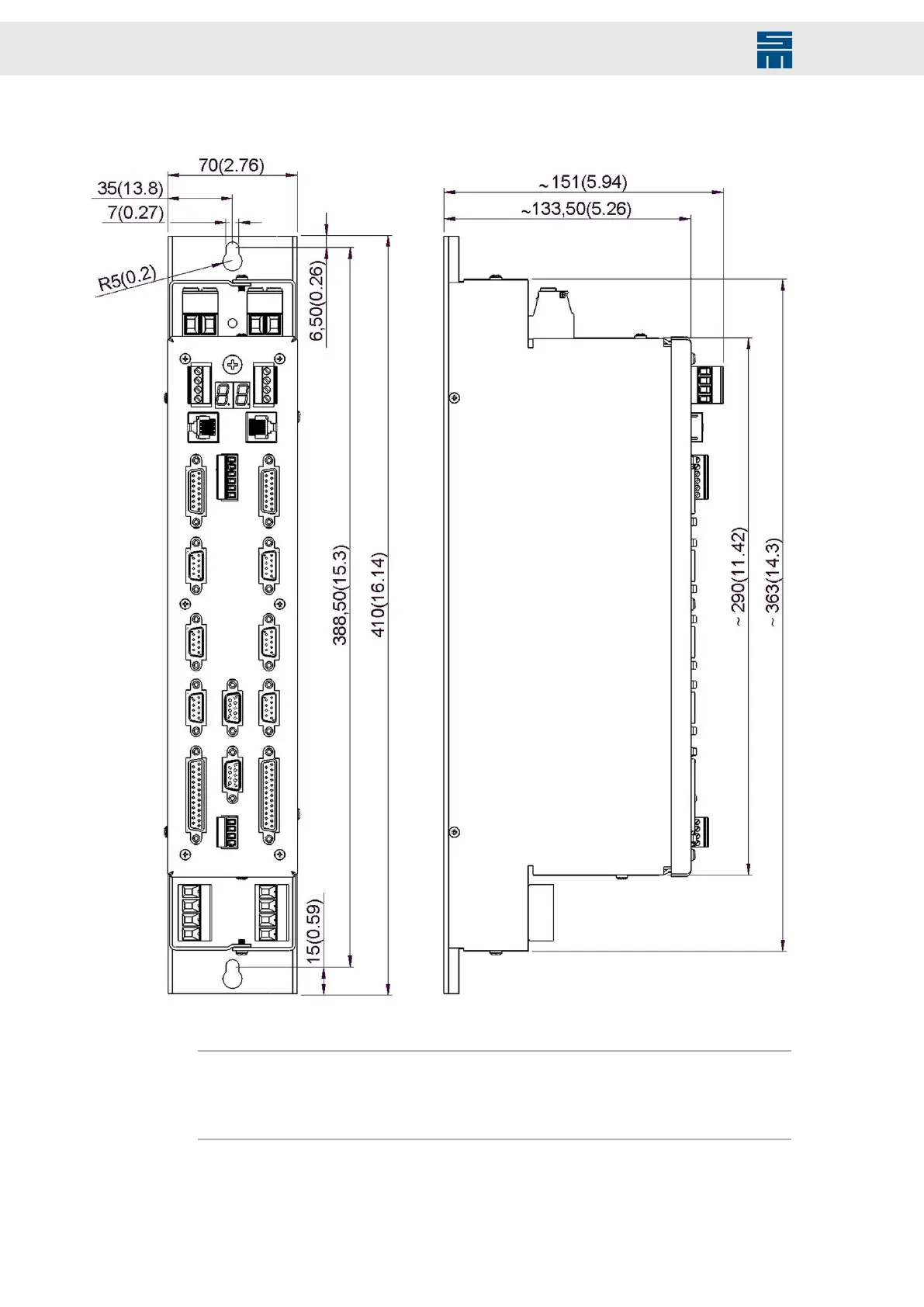

Fig. 37: Dimensions 0362110xxy in mm (inch)

Note

When installing the first and the last module, consider that the heads of the cabinet

screws located on the long sides of each module overlap up to 2 mm. Since the screws

are fastened staggered to each other, this is negligible between two modules.

60 Drive System SD2 - Hardware Description
