Single-axis Drive Amplifiers
The device is designed for vertical wall mounting. Other setup positions are possible but
you must consult SIEB & MEYER before.
6.3.1 Dimensions

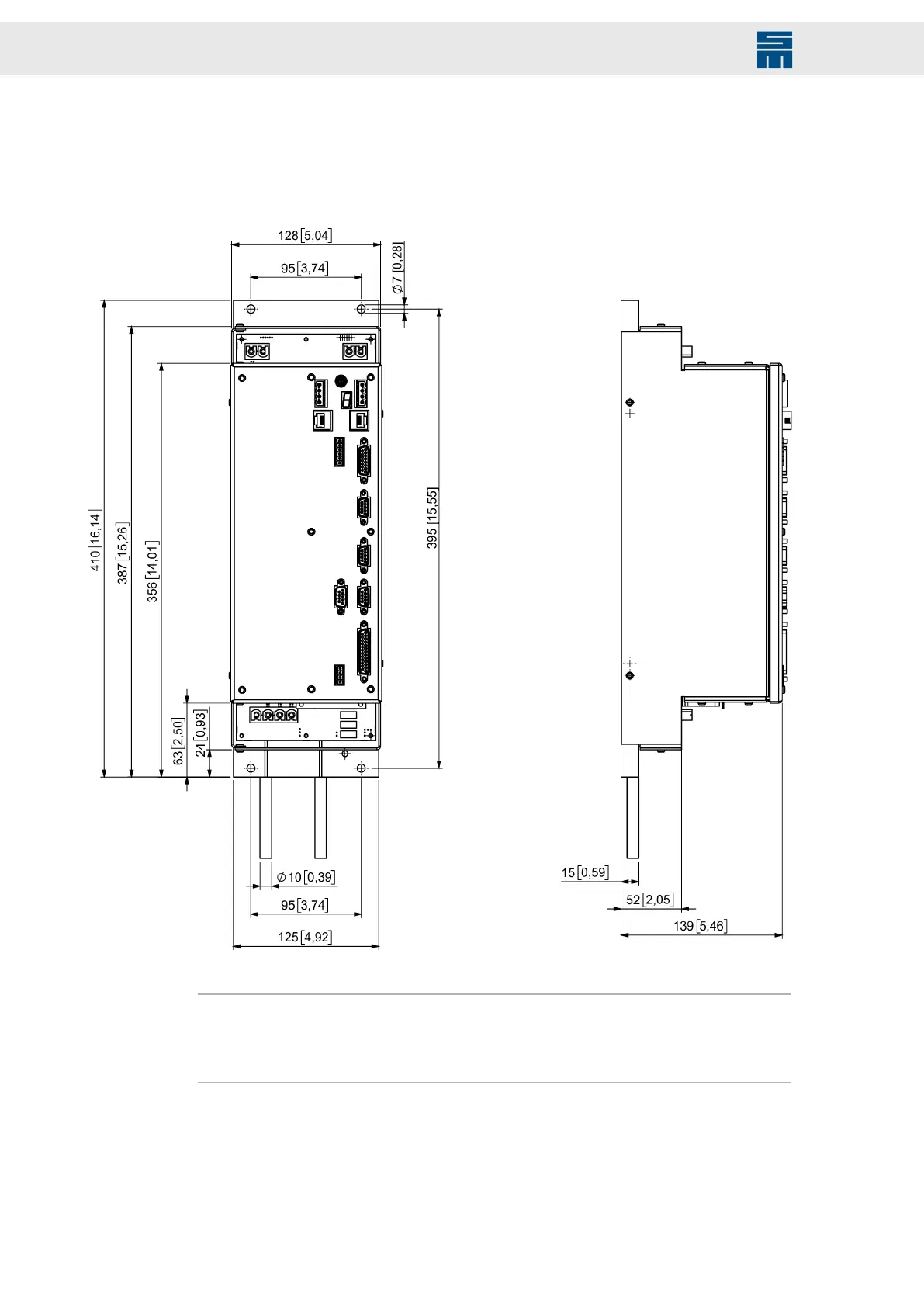

Fig. 12: Dimensions 0362111OF in mm [inch]
Fig. 12: Dimensions 0362111OF in mm [inch]
Note
When installing the first and the last module, consider that the heads of the cabinet
screws located on the long sides of each module overlap up to 2 mm. Since the screws
are fastened staggered to each other, this is negligible between two modules.
