6.4 Device Variant 0362111RF (max. 220 A) with
Integrated Water-cooled Heat Sink

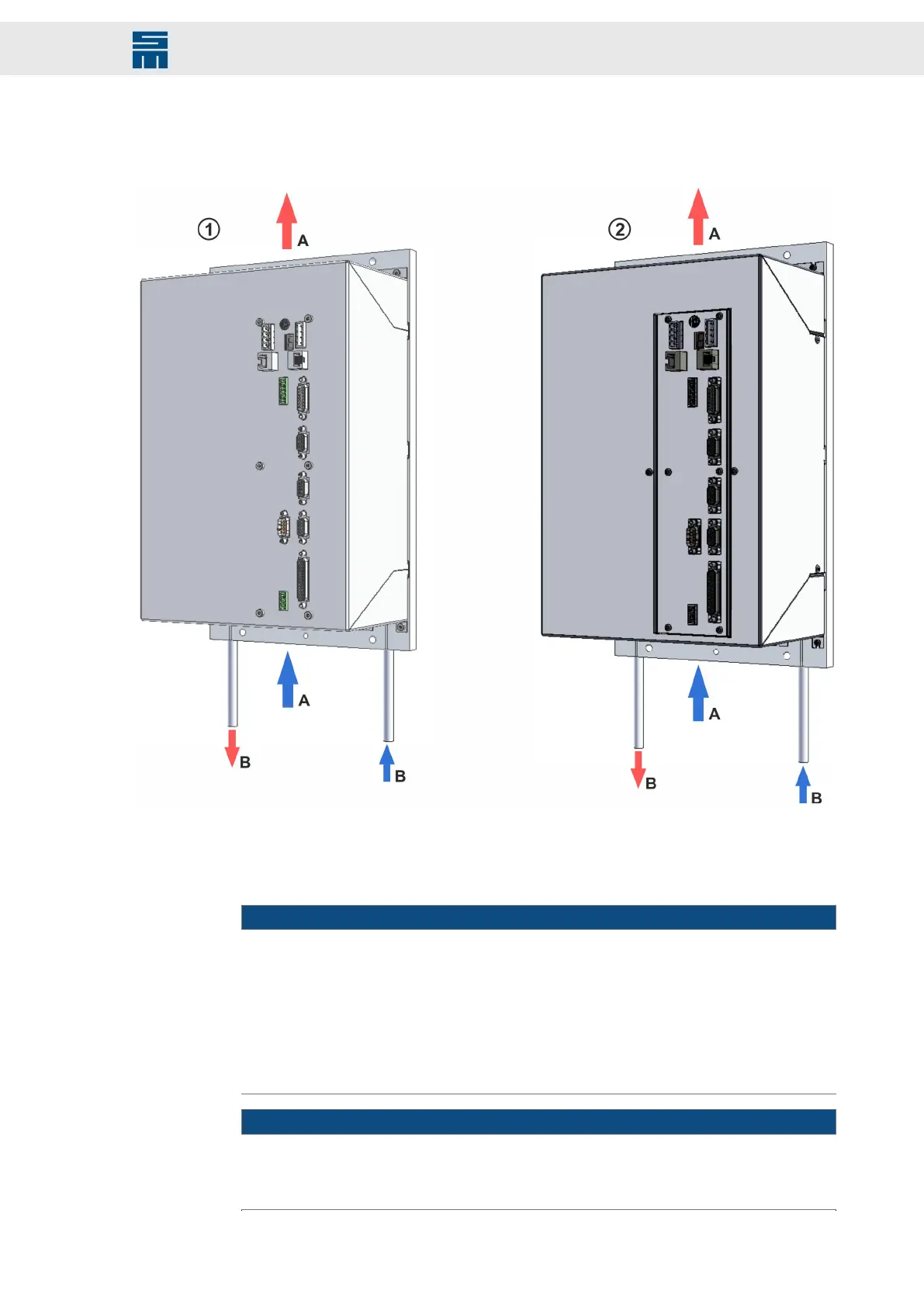

Fig. 15: Device view 0362111RF with direction of air flow (A) and cooling circuit (B)
Fig. 15: Device view 0362111RF with direction of air flow (A) and cooling circuit (B)
[1] Device housing variant delivered until June 2019
[2] Device housing variant delivered from July 2019 onwards
NOTICE
Restriction of cooling air flow
If the air flow cooling the device is obstructed, the device could overheat and possibly
become damaged.
→ When installing the device, pay attention to the direction of air flow through the in-
ternally installed fan [arrows A].
→ For sufficient cooling the ventilation inlets and outlets must be kept free by a space
of min. 10 cm.
NOTICE
Wrong flow direction of the coolant
→ For optimal cooling, consider the flow direction of the coolant during mounting. In-
stall the forward and return flow of the coolant according to the arrows [B].
37Drive System SD2 - Hardware Description
Single-axis Drive Amplifiers
