6.5 Device Variant 0362111SF (max. 358 A) with
Integrated Water-cooled Heat Sink

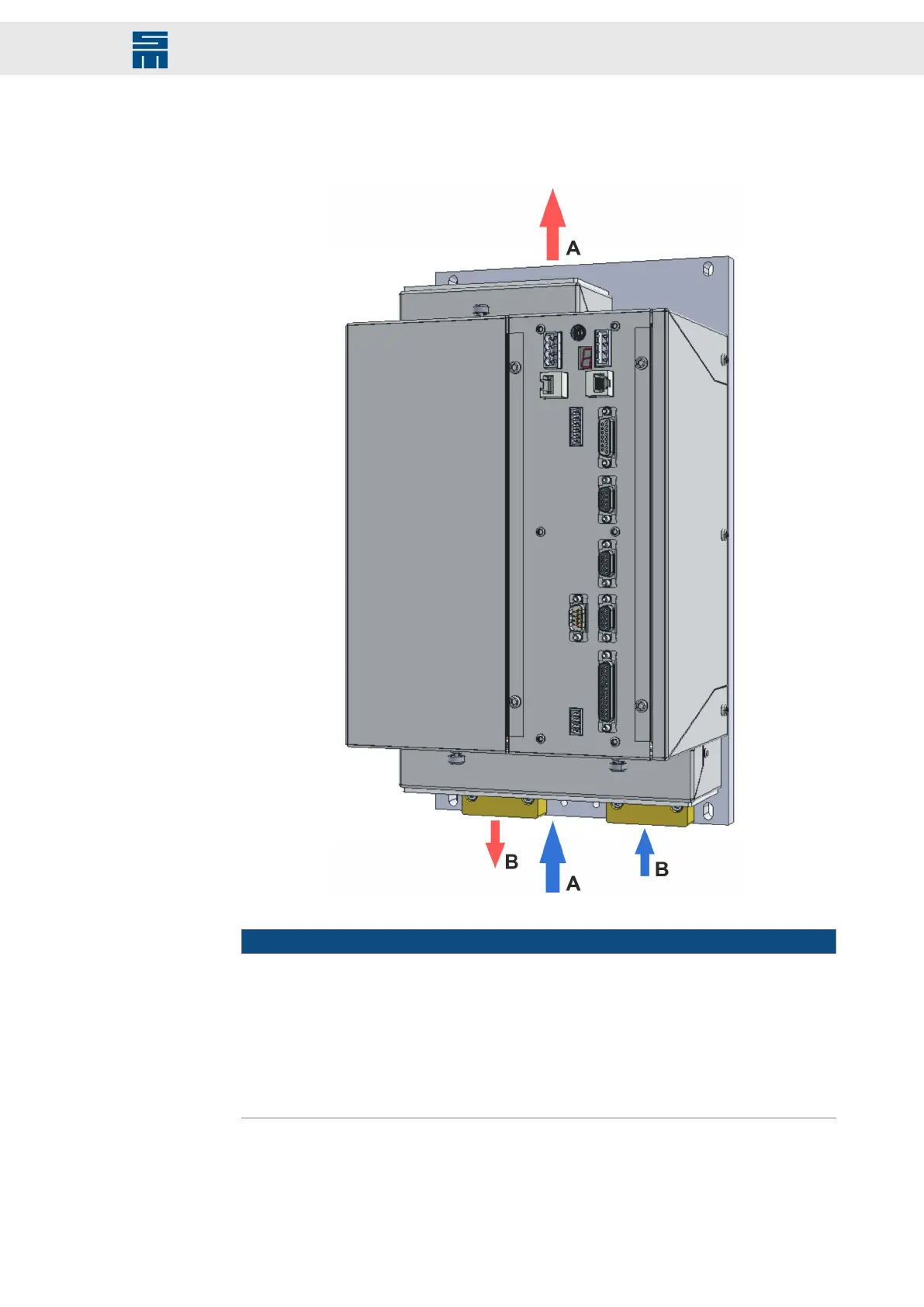

Fig. 19: Device view 0362111SF with direction of air flow (A) and cooling circuit (B)
Fig. 19: Device view 0362111SF with direction of air flow (A) and cooling circuit (B)
NOTICE
Restriction of cooling air flow
If the air flow cooling the device is obstructed, the device could overheat and possibly
become damaged.
→ When installing the device, pay attention to the direction of air flow through the in-
ternally installed fan [arrows A].
→ For sufficient cooling the ventilation inlets and outlets must be kept free by a space
of min. 10 cm.
41Drive System SD2 - Hardware Description
Single-axis Drive Amplifiers
