Power Supply Unit PS2
9.4 Device Variant 0362193y with Integrated
Heat Sink

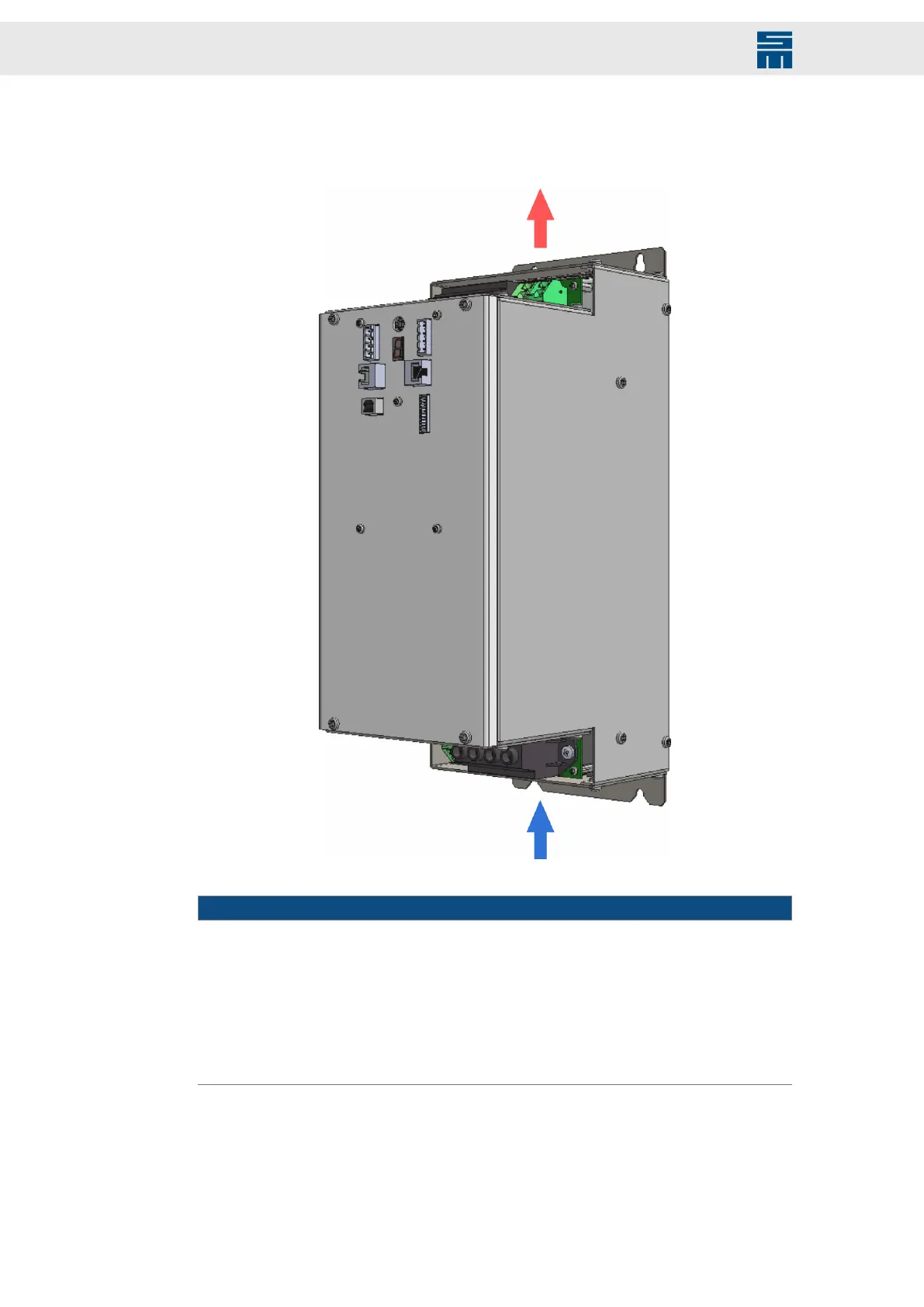

Fig. 71: Device view 0362193y
Fig. 71: Device view 0362193y
NOTICE
Restriction of cooling air flow
If the air flow cooling the device is obstructed, the device could overheat and possibly
become damaged.
→ When installing the device, pay attention to the direction of air flow through the in-
ternally installed fan [arrows].
→ For sufficient cooling the ventilation inlets and outlets must be kept free by a space
of min. 10 cm.
The device is designed for vertical wall mounting. Other setup positions are possible but
you must consult SIEB & MEYER before.
94 Drive System SD2 - Hardware Description
