Drive Amplifier SD2
5.2 Type Plate

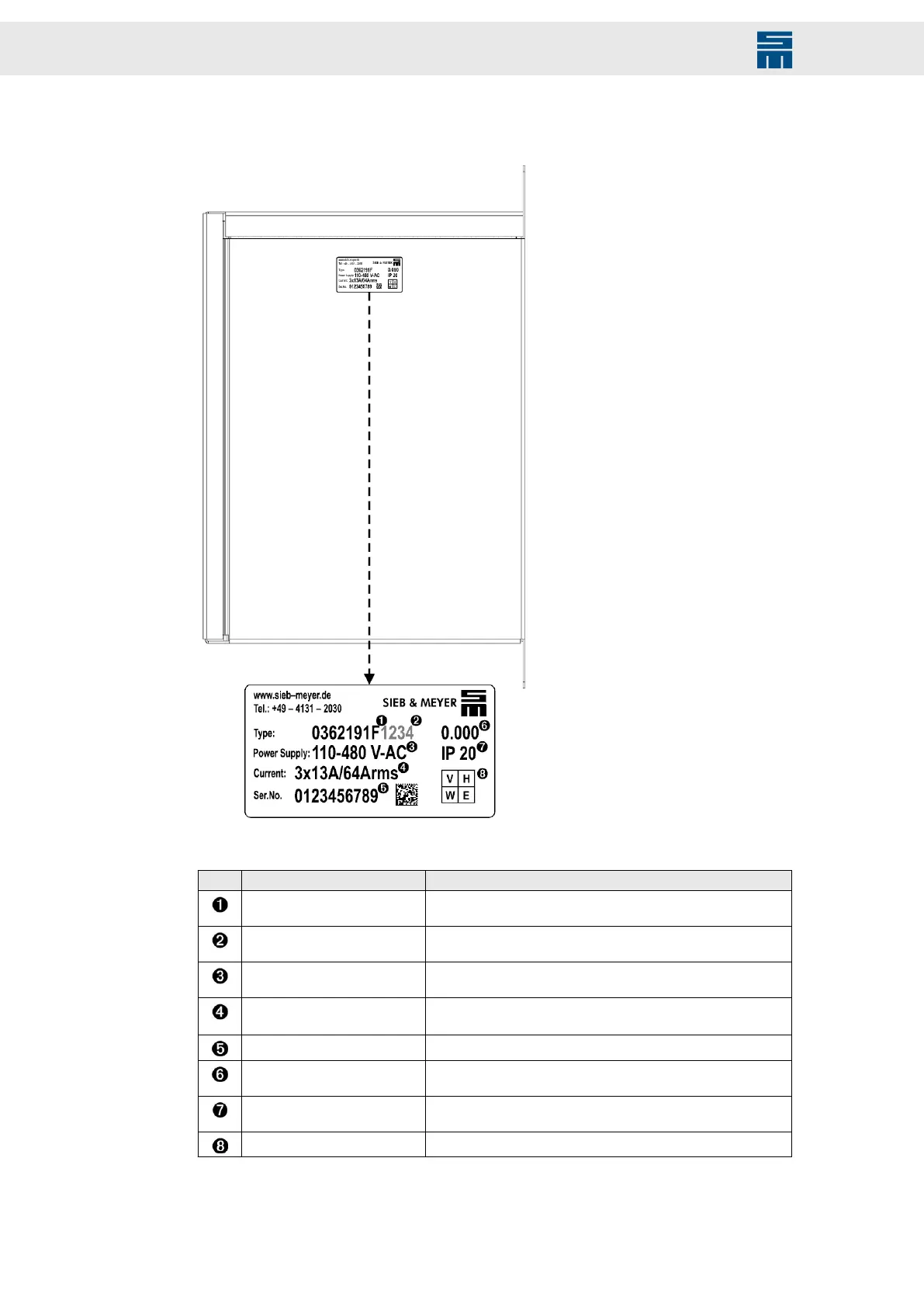

Fig. 2: Type plate SD2
Fig. 2: Type plate SD2
No. Description Explanation
Device name Composed of module type with indication of performance range
and max. DC link voltage
Extension for customized de-
vices
Indicates a 4 digit numeral code for customized devices; there is
no code for standard devices
Supply voltage Indicates the maximum voltage range (if this row is left blank, an
external power supply unit is necessary)
Rated current/peak current Applies to the output stage; the value is indicated in A
rms
(effec-
tive value)
Serial number Indicates the individual number of the device
Device version Indicates the version of the hardware; if no version is existent,
0.000 is indicated here
IP Code Indicates the level of protection of the device against touching or
intrusion of solid objects (1st digit) and water ingress (2nd digit)
QA label
22 Drive System SD2 - Hardware Description
