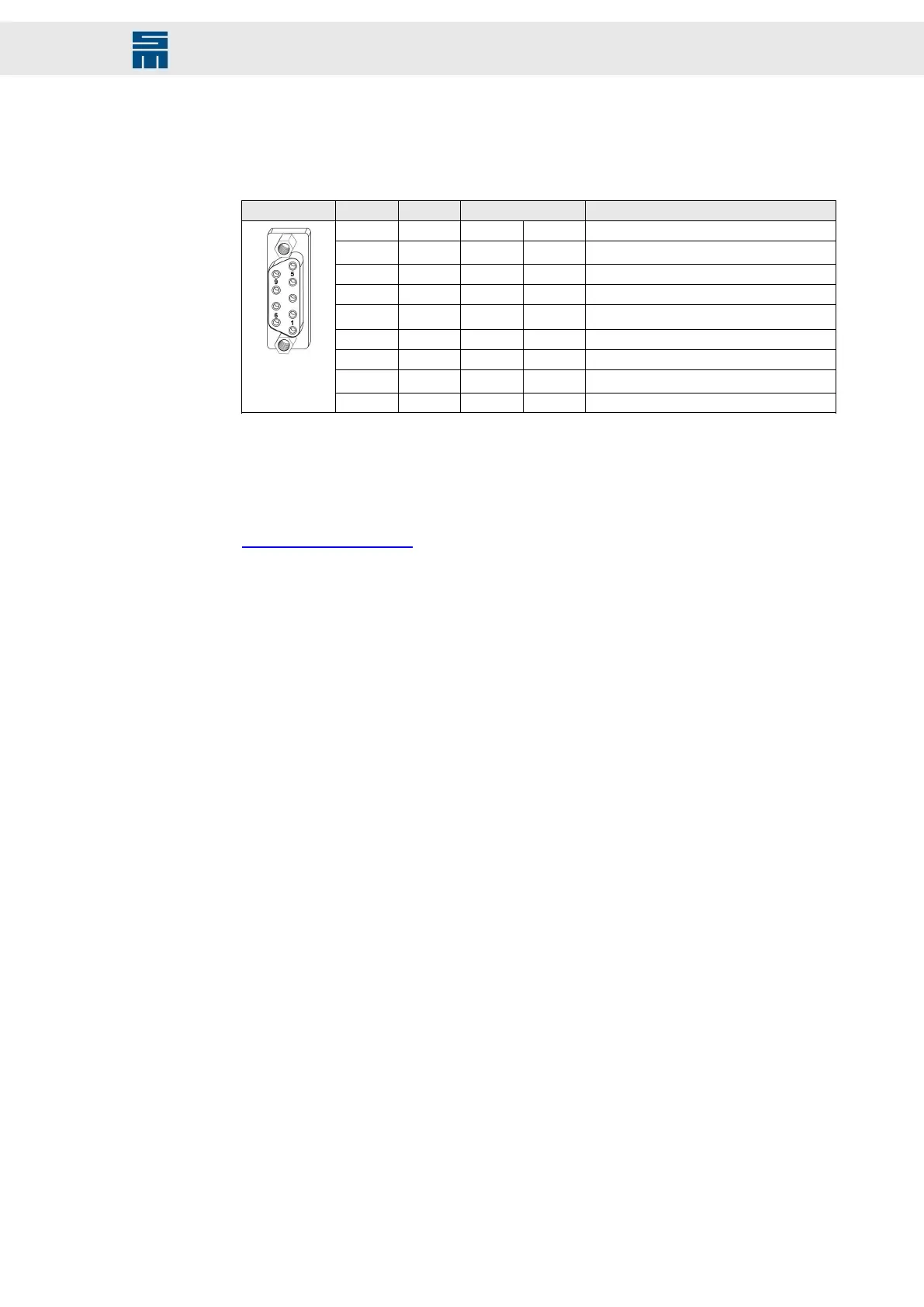

12.9 X8 – Resolver

9-pole female submin D connector

X8 Pin I/O Name Meaning

1 I S1 Sine Resolver S1

2 I/O GND Ground

3 O R3 Rotor Resolver R3

4 I S2 Cosine Resolver S2

5 I

TEMP

(1)

Temperature sensor of the motor

6 I S3 Sine Resolver S3

7 O R1 Rotor Resolver R1

8 I/O GND Ground

9 I S4 Cosine Resolver S4

(1)

The temperature sensor is connected between GND and TEMP.

Locking bolts flange: max. tightening torque = 0.7 Nm

Related topics

X8 – Resolver, page 137

113Drive System SD2 - Hardware Description

Connector Pin Assignment
