Connector Pin Assignment

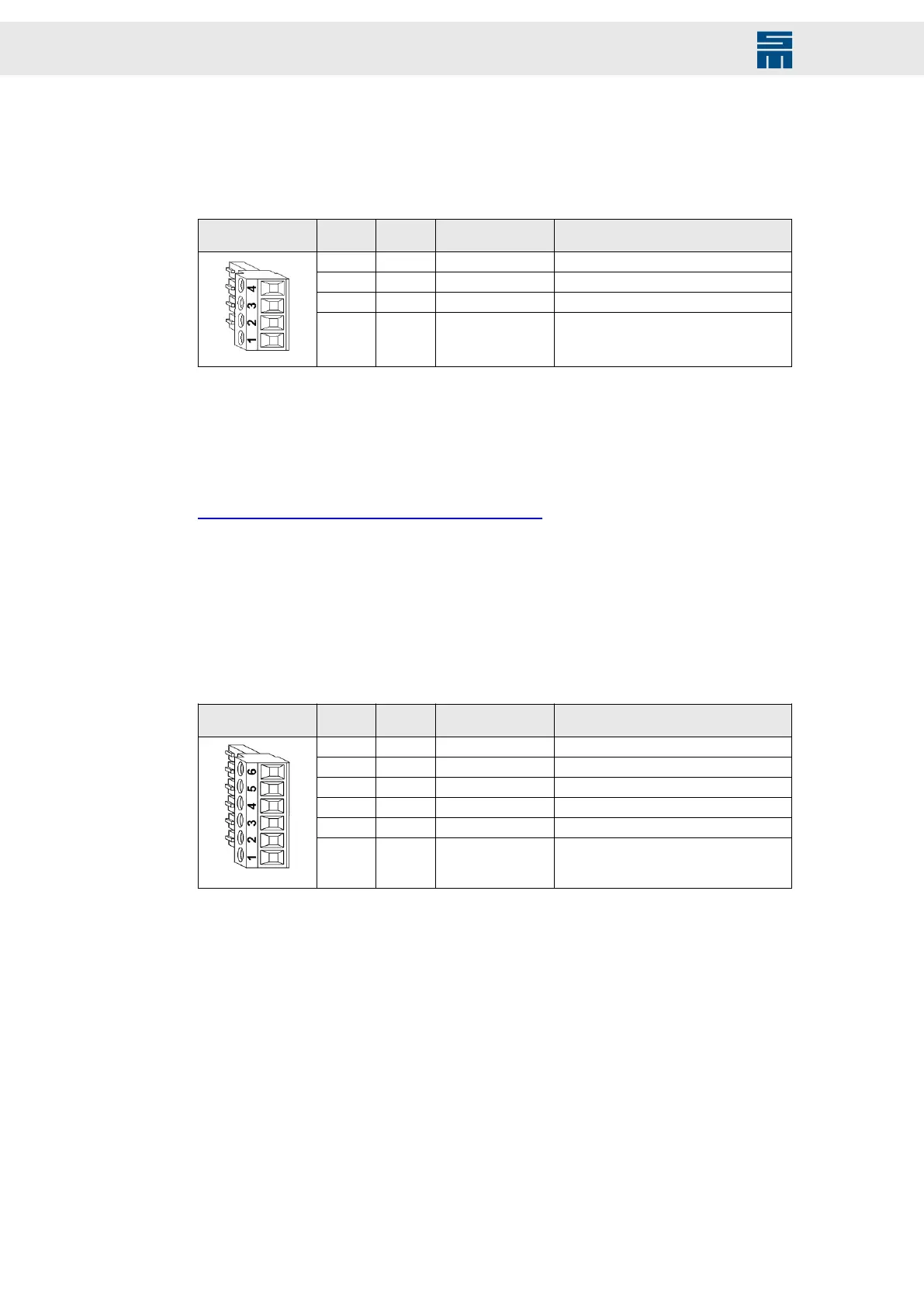

12.12 X11ϑ – Temperature Sensor of the Motor
4-pole Mini-Combicon connector, suitable for mating connector MC 1,5/ 4-ST-3,81
(Phoenix)
Mating con-
nector X11ϑ
Pin I/O Name Meaning
1 I/O GND Reference potential
2 I TEMP-B Temperature sensor of the motor, drive B
3 I TEMP-A Temperature sensor of the motor, drive A
4 I/O GND Reference potential
Specification of terminal connections
▸
Conductor cross-section solid/stranded: 0.14 to 1.5 mm²
▸
Tightening torque: 0.22 to 0.25 Nm
Related topics
X11 – Temperature Sensor of the Motor, page 148
12.13 X12 – DIO PS2
digital inputs and digital outputs of the power supply unit PS2
6-pole Mini-Combicon connector, suitable for mating connector MC 1,5/ 6-ST-3,81
(Phoenix)
Mating con-
nector X12
Pin I/O Name Meaning
6 I/O GND Logic supply
5 O 24 V Logic supply
4 I/O SYNC Synchronization IN/OUT
3 O POK Power OK
2 - POK- Relays power OK-
1 - POK+ Relays power OK+
Specification of terminal connections
▸
Conductor cross-section solid/stranded: 0.14 to 1.5 mm²
▸
Tightening torque: 0.22 to 0.25 Nm
116 Drive System SD2 - Hardware Description
