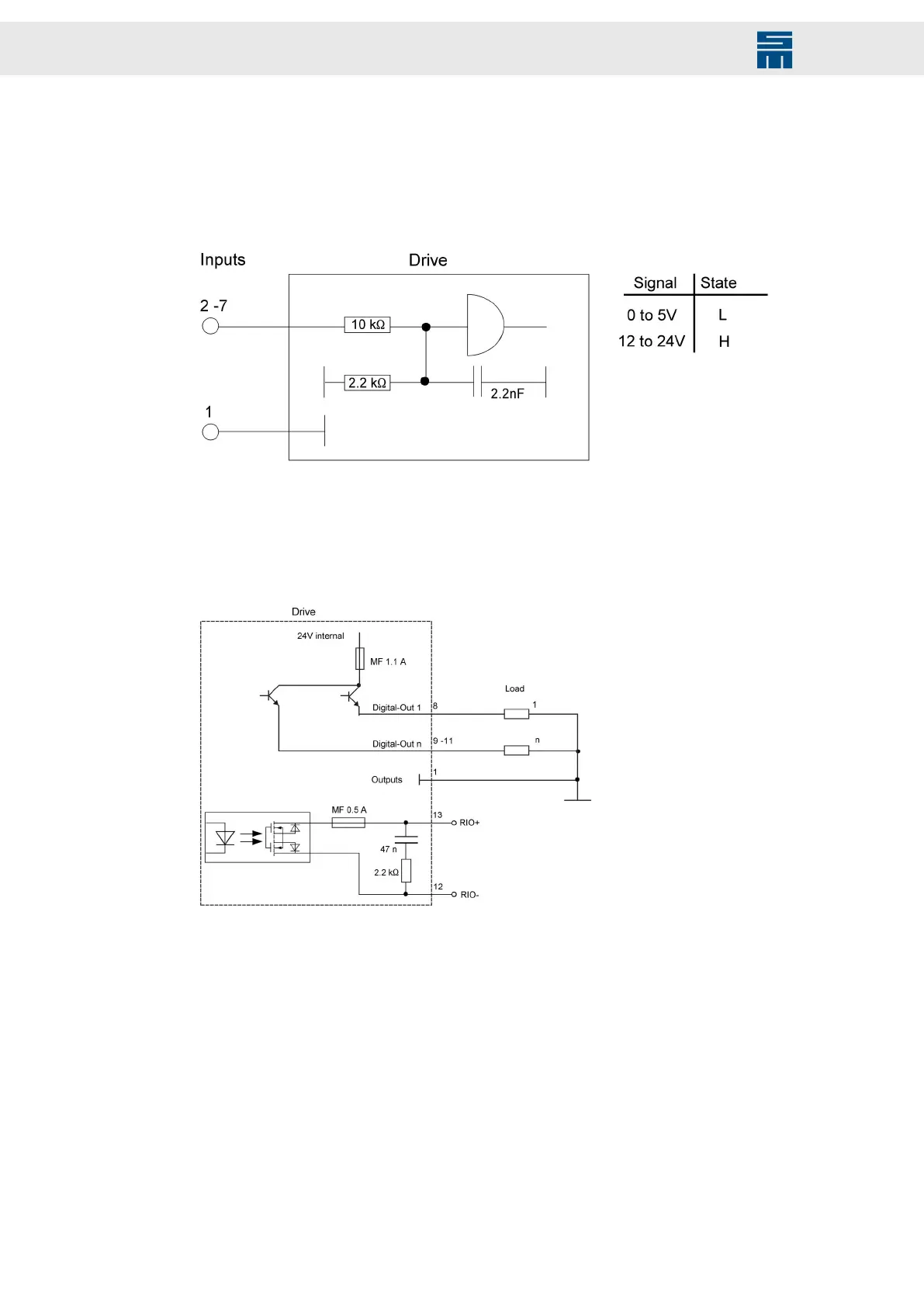

13.3 X5 DIO – Digital Inputs/Outputs

13.3.1 Digital Inputs

The meanings of the digital inputs can be defined by parameters.

13.3.2 Digital Outputs

The meanings of the digital outputs can be defined by parameters. Every output can

be loaded with 100 mA.

134 Drive System SD2 - Hardware Description
