9.3.1 Dimensions

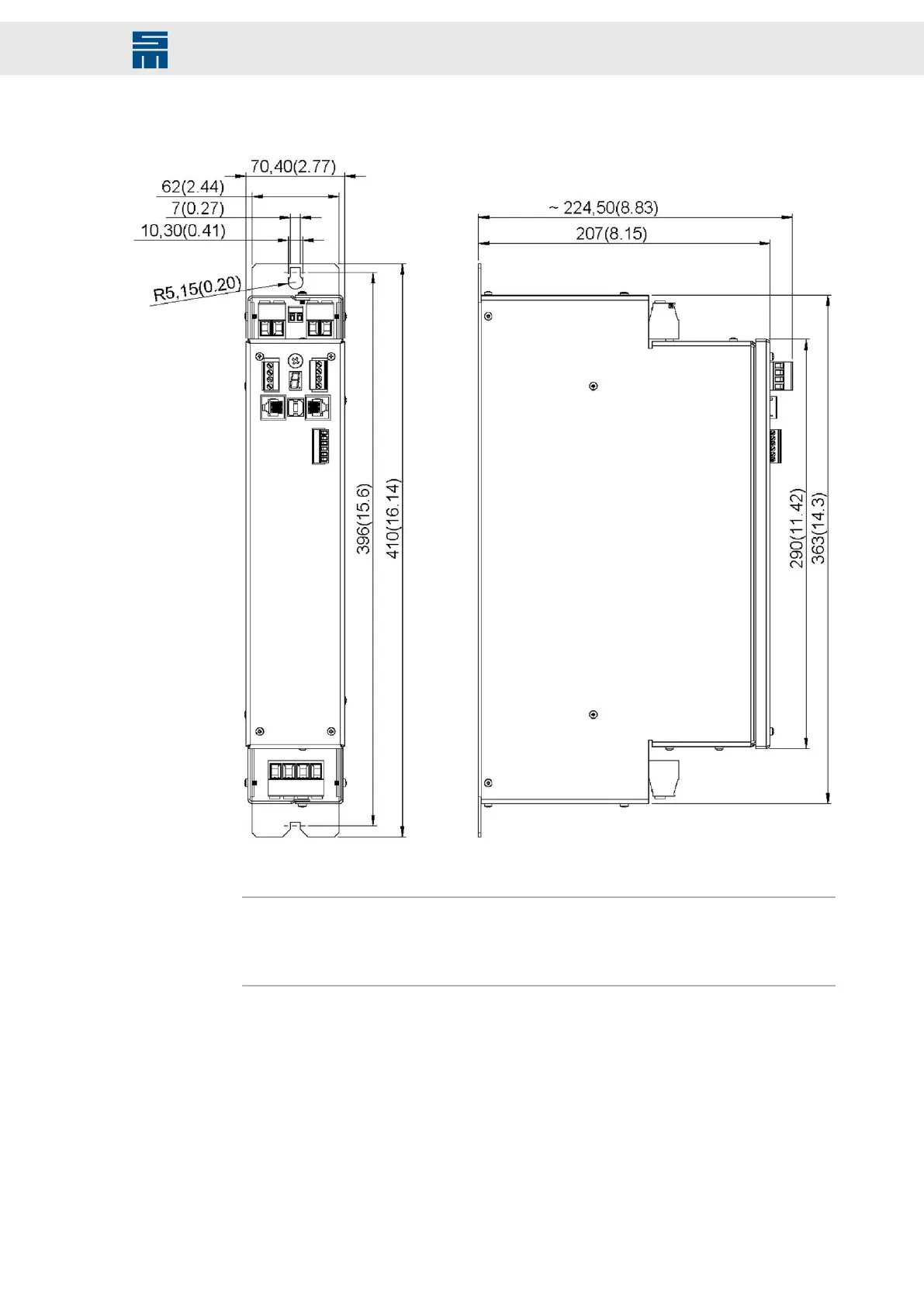

Fig. 67: Dimensions 0362191y in mm (inch)
Fig. 67: Dimensions 0362191y in mm (inch)
Note
For the installation consider that the heads of the cabinet screws located on the long
sides of each module overlap up to 2 mm. This causes a module gap of at least 4 mm
when several modules are combined in an assembly group.
91Drive System SD2 - Hardware Description
Power Supply Unit PS2
