9.4.1 Dimensions

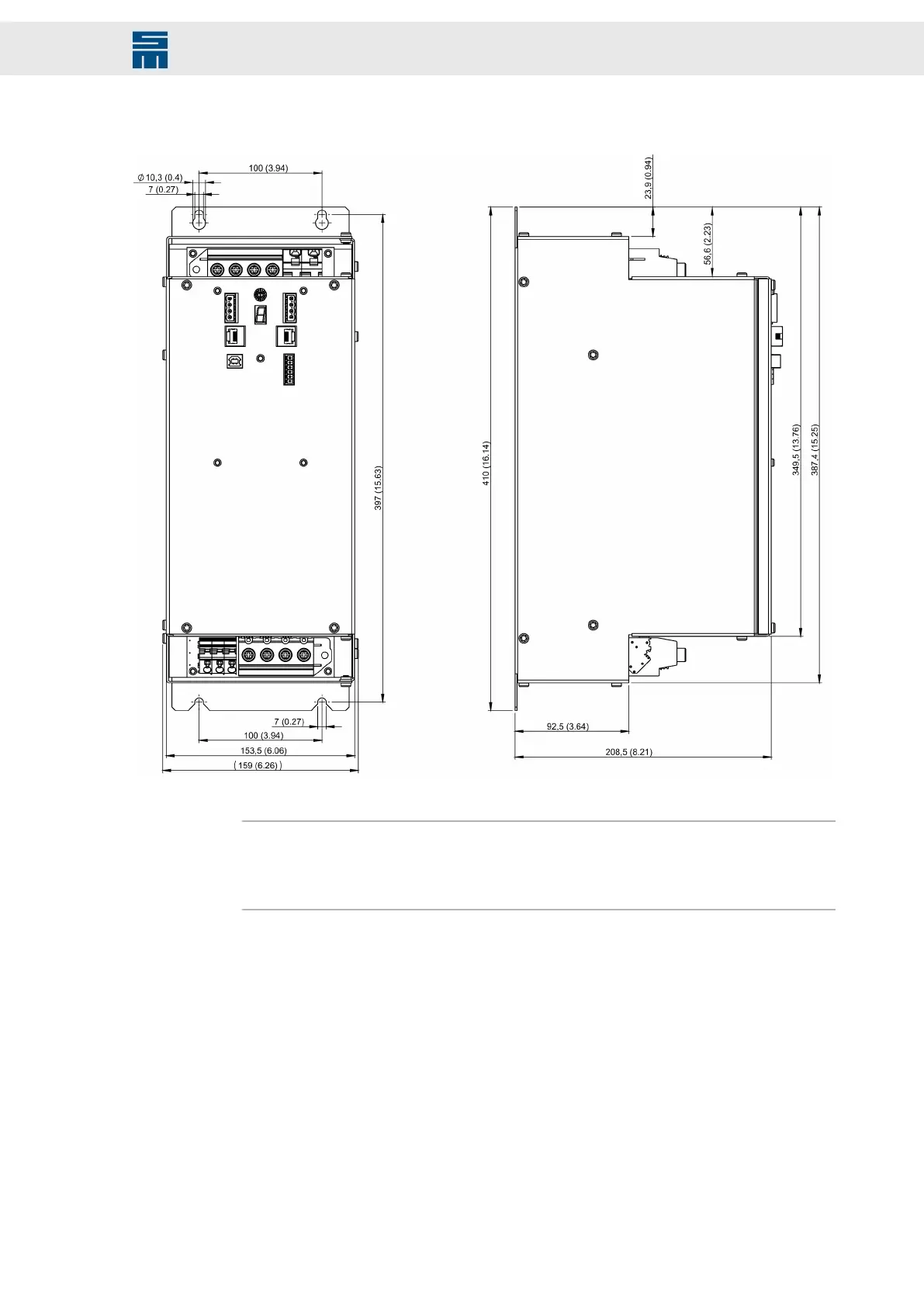

Fig. 72: Dimensions of 0362193 in mm (inch)

Note

For the installation consider that the heads of the cabinet screws located on the long

sides of each module overlap up to 2 mm. This causes a module gap of at least 4 mm

when several modules are combined in an assembly group.
