Single-axis Drive Amplifiers

6.2.1 Dimensions

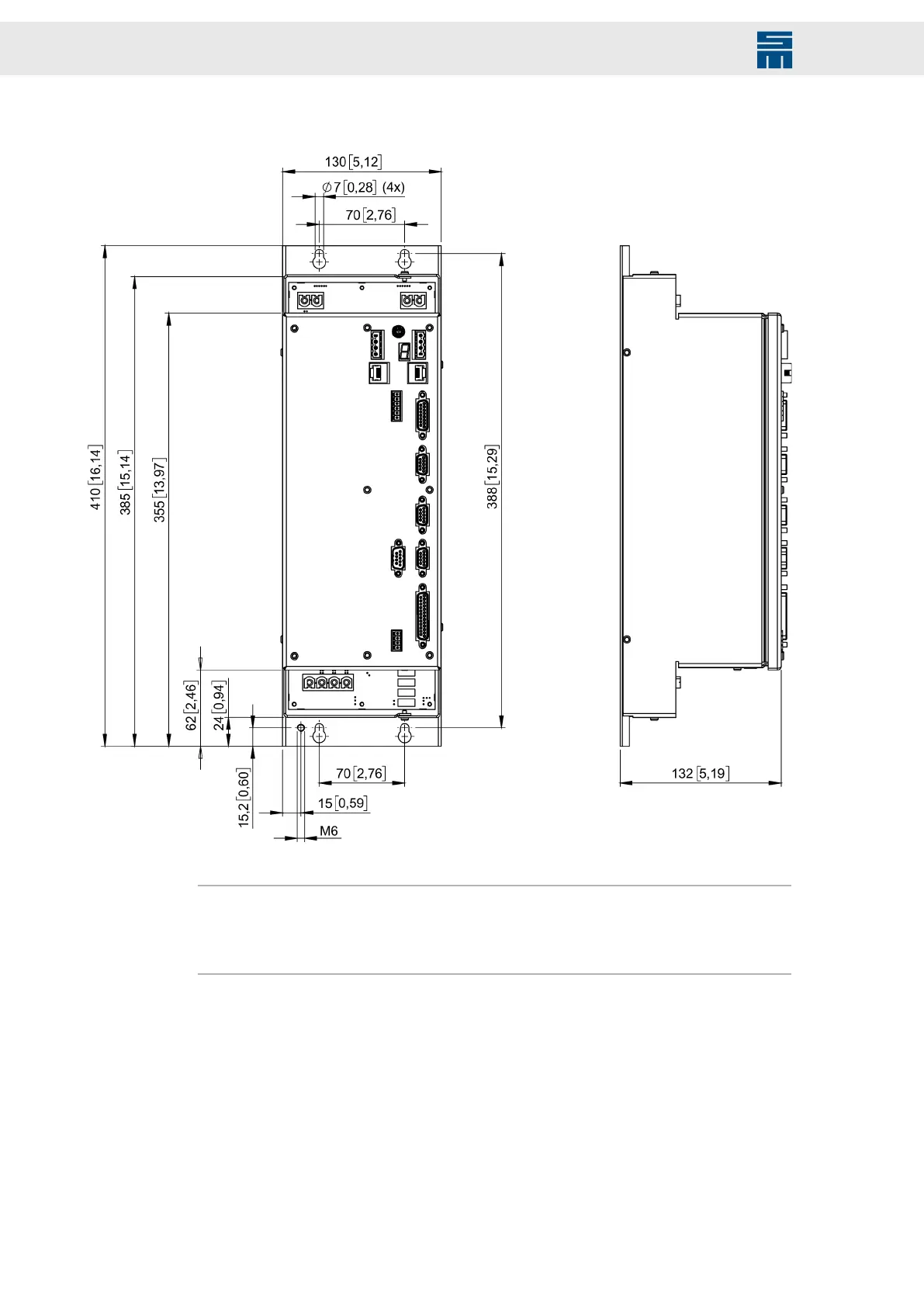

Fig. 8: Dimensions 0362111MF/0362111NF in mm [inch]

Note

When installing the first and the last module, consider that the heads of the cabinet

screws located on the long sides of each module overlap up to 2 mm. Since the screws

are fastened staggered to each other, this is negligible between two modules.

30 Drive System SD2 - Hardware Description
