D.2 Phoenix Contact
http://www.phoenixcontact.com

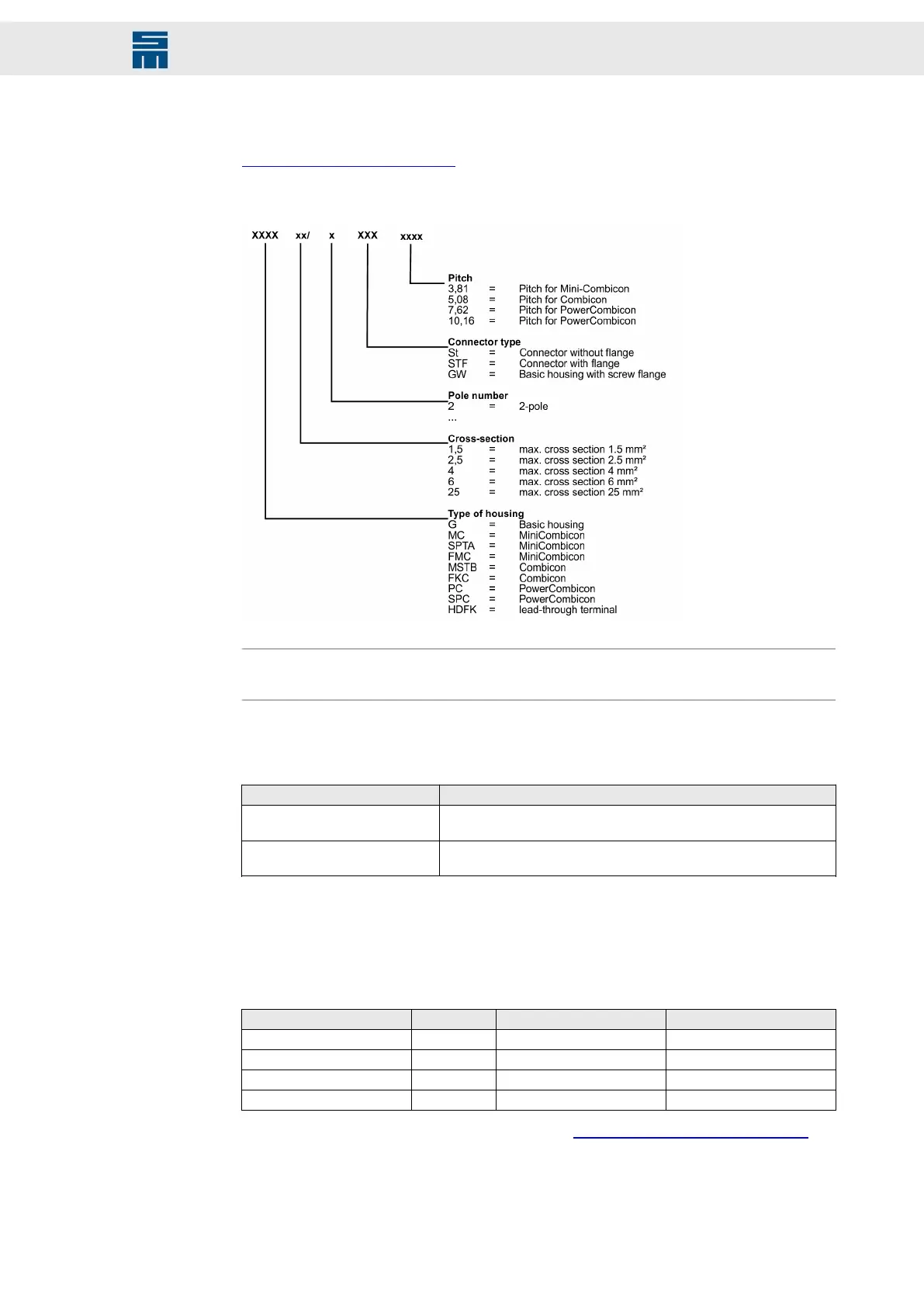

Order key for Phoenix connectors
Note
Labeled connectors can be ordered at SIEB & MEYER.
D.2.1 Surge Arrestor FLASHTRAB
Phoenix article number Description
2905469 Surge arrestor FLT-SEC-T1+T2-3C-350/25-FM: with combined PE
and N installed in one conductor (L1, L2, L3, PEN)
2905470 Surge arrestor FLT-SECT1+T2-3S-350/25-FM: with separate PE and
N (L1, L2, L3, PE, N)
D.2.2 Shield Connection Clamps
Shield connection clamps for EMC busbar and for motor/power or measuring system
connection of the devices
Phoenix article number Name Connection method Tightening torque
3025163 SK 8 Screw connection (M4) max. 0.6 Nm
3025176 SK 14 Screw connection (M4) max. 0.8 Nm
3025189 SK 20 Screw connection (M4) max. 0.8 Nm
3026463 SK 35 Screw connection (M5) 1.5 to 1.8 Nm
Alternatively you can use WAGO terminals (see WAGO Shield Connection Clamps).
