Operation
154/214 Revision 06 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DB10 • 864-5091.9
37.2 Closing the three-position disconnector manually
➭ Pre-select busbar system for switching operation.
Selector gate to the left: Busbar system 1. Selector gate to the right: Busbar system 2.
➭ Push the left-hand control gate to the left.
✔ The opening for the DISCONNECTING function is free.
➭ Switch the three-position disconnector to CLOSED position (insert the operating lever for
the DISCONNECTING function and turn 180° clockwise).
✔ The three-position disconnector is closed.
✔ The position indicator changes to CLOSED position.
➭ Remove the operating lever for the DISCONNECTING function.
✔ The left-hand control gate returns to its initial position.
✔ The opening for the DISCONNECTING function is closed.
ATTENTION
In circuit-breaker panels, a mechanical interlock prevents the three-position disconnector from
being operated when the circuit-breaker is closed.
➭ Open the circuit-breaker (see page 148, "Opening the circuit-breaker manually").
ATTENTION
In disconnector panels without electromechanical/mechanical interlock, maloperation of
the three-position disconnector is possible. Here, the three-position disconnector can be
operated under load. Operating under load will destroy the three-position disconnector!
➭ Do not operate the three-position disconnector under load.

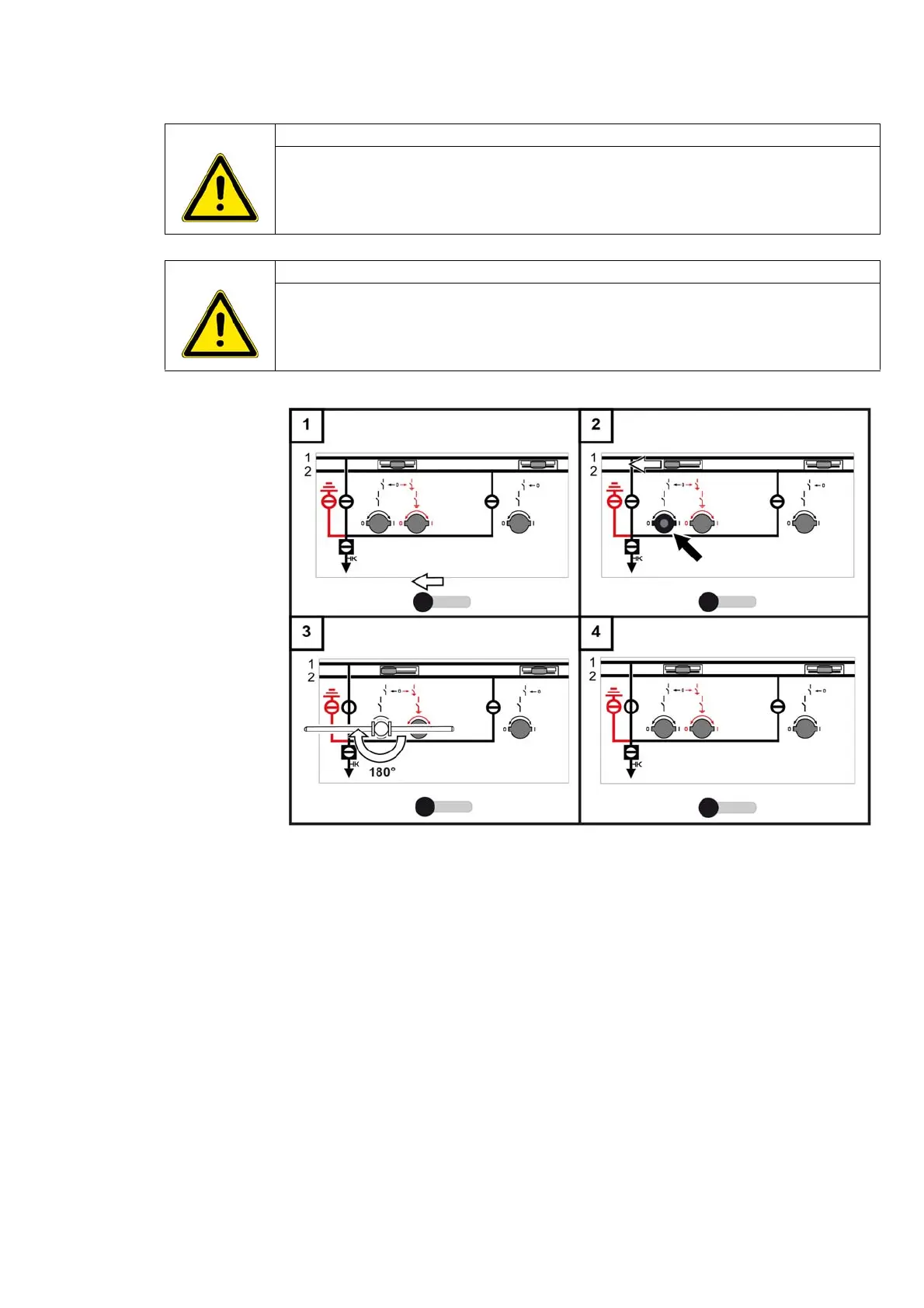

Fig. 178: Closing the three-position disconnector
