8.7.5 Timeouts and other errors
Telegram Timeouts
For the timeout monitoring, the character run time is important:
Table 8-15 Character run time
Baudrate in bit/s Transfer time per character (= 11 bit) Transfer time per bit Character run time
9600 1.146 ms 104.170 us 1.146 ms
19200 0.573 ms 52.084 us 0.573 ms
38400 0.286 ms 26.042 us 0.286 ms
187500 0.059 ms 5.340 us 0.059 ms

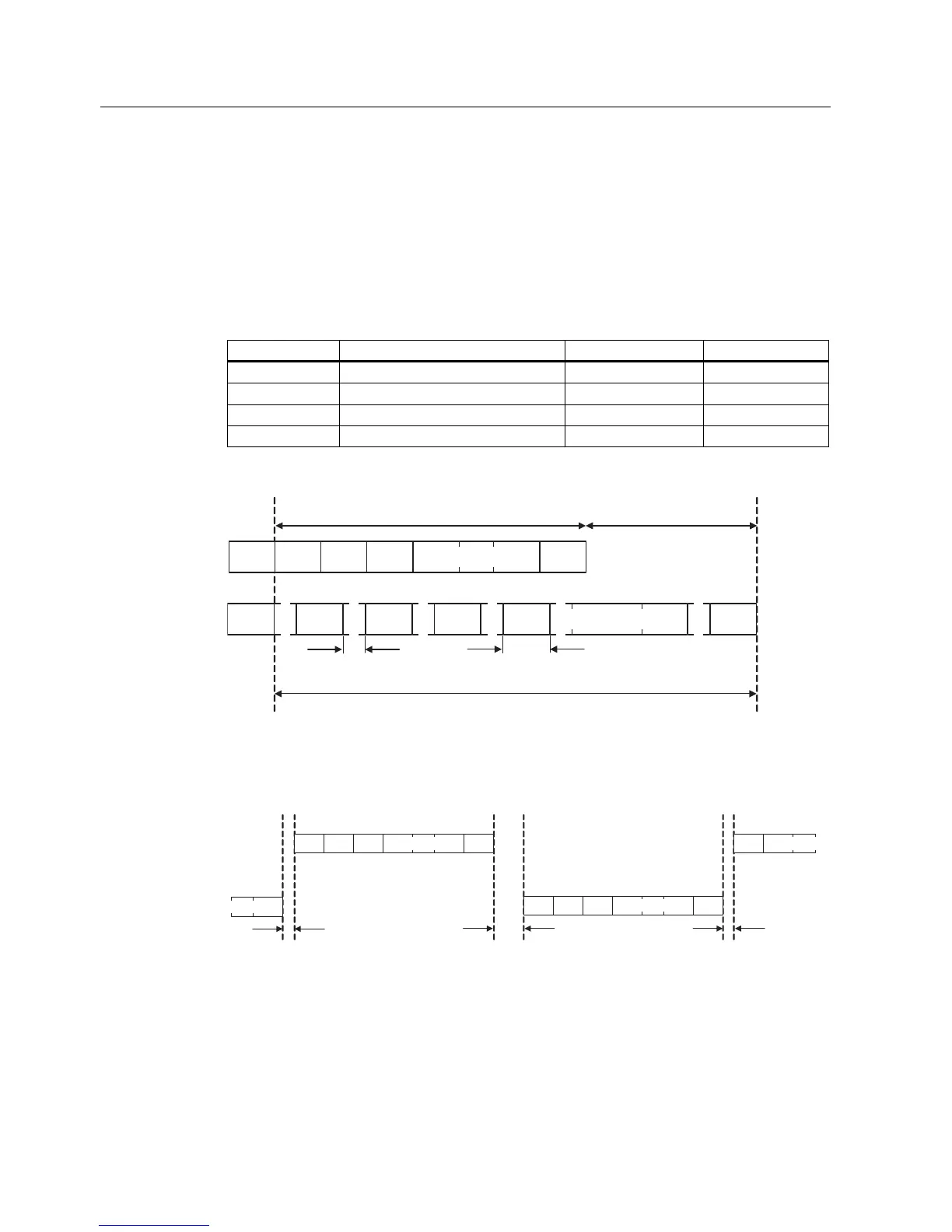

The following figure shows the meaning of the "residual run time":
: : :
: : :
67; /*( $'5   Q %&&
67; /*( $'5   Q %&&
&KDUDFWHUGHOD\WLPH &KDUDFWHUUXQWLPH
0D[LPXPWHOHJUDPUHVLGXDOUXQWLPH
Residual run time
(compressed telegram)
50 % of the compressed
WHOHJUDPUHVLGXDOUXQWLPH
Figure 8-23 Residual Run Time and Character Delay Time
The character delay time can be zero and must be smaller than the start delay!
The following figure shows the various delays and transmission times:
: : :
: : :
: : :
: : :
67; /*( $'5  Q %&&
67; /*( $'5  %&&
67; /*(
%&&
Q
6WDUW'HOD\
6WDUW'HOD\5HVSRQVH'HOD\
0DVWHU5HTXHVW 0DVWHU5HTXHVW
6ODYH5HVSRQVH
Figure 8-24 Start Delay and Response Delay
