Commissioning (software)
5.7 Commissioning modes
Control Units CU240S
5-18 Operating Instructions, 11/2006, A5E00766042B AA
5.7 Commissioning modes
Commissioning overview
Before commissioning is started, the following data must must be available:
● Line supply frequency
● Motor rating plate data
● Command/setpoint sources
● Min./max. frequency or ramp-up/ramp-down time
● Control mode

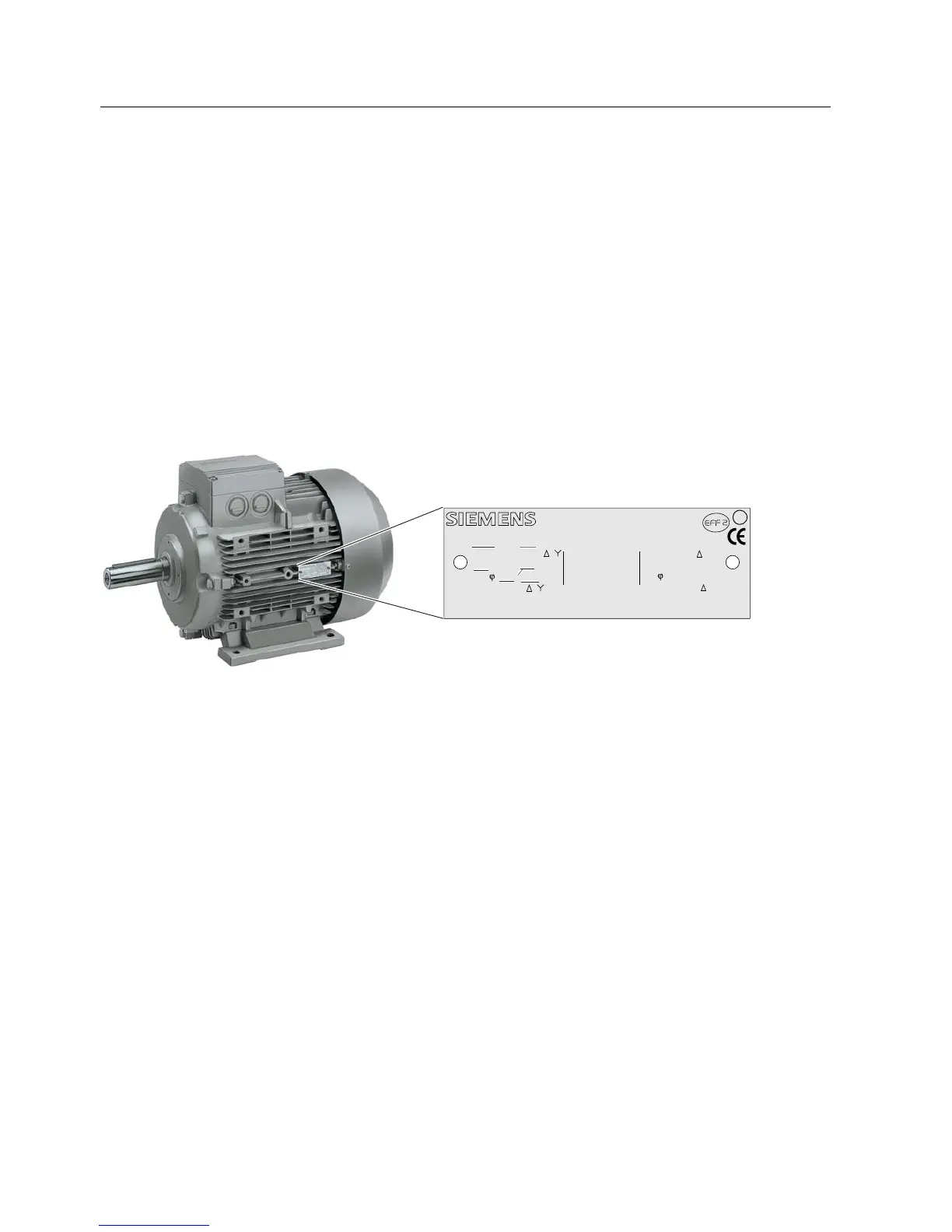

An example for a rating plate is shown in the figure below. The precise definition and
explanation of this data is defined in DIN EN 60034-1.
D-91056 Erlangen
3~Mot. 1LA70904-4AA10
E0107/471101 01 001 IEC/EN 60034
16kg IM B3 090L IP55 Th.Cl.F
50 Hz 230/400 V
cos
220-240/380-420 V
60 Hz 460 V
cos
440-480 V
H
/
/
1.5 kW 5.9/3.4 A
0.81 1420/min
6.2-5.4/3.6-3.2 A
1.75 kW 3.4 A
0.81 1720/min
3.6-3.3 A
Figure 5-6 Example of a typical motor rating plate
Commissioning the inverter with the OP
A differentiation is made between the following scenarios when commissioning the inverter
via OP:
● Quick commissioning
● Motor data identification
● Calculating the motor/control data
● Commissioning the application
● Series commissioning
● Reset parameters to factory settings
● Commissioning the Fail-safe Functions.
When commissioning, initially, a quick or series commissioning should be performed.
If there is no appropriate parameter set available for series commissioning, a quick
commissioning must be carried-out.
With the quick commissioning-function the inverter is adapted to the motor and important
technological parameters are set.
