Installing/Mounting
4
Installing the Control Unit
The CU controls the functions of the PM. The CU cannot be used without a PM, also the PM
cannot be used without a CU.
Warning
An inverter can be switched on unintentionally if the installation is not performed correctly.
The inverter must be started-up by personnel who are qualified and trained in installing
systems of this type.









0XOWL0HGLD&DUG00&VORW
*HQHUDOFRQILJXUDWLRQ',3VZLWFKHV
352),%86'3DGGUHVV',3VZLWFKHV
2SWLRQSRUW
6WDWXV/('V
ZD\FRQWUROWHUPLQDOV
352),%86'3RU56LQWHUIDFH
3RZHU0RGXOHLQWHUIDFH

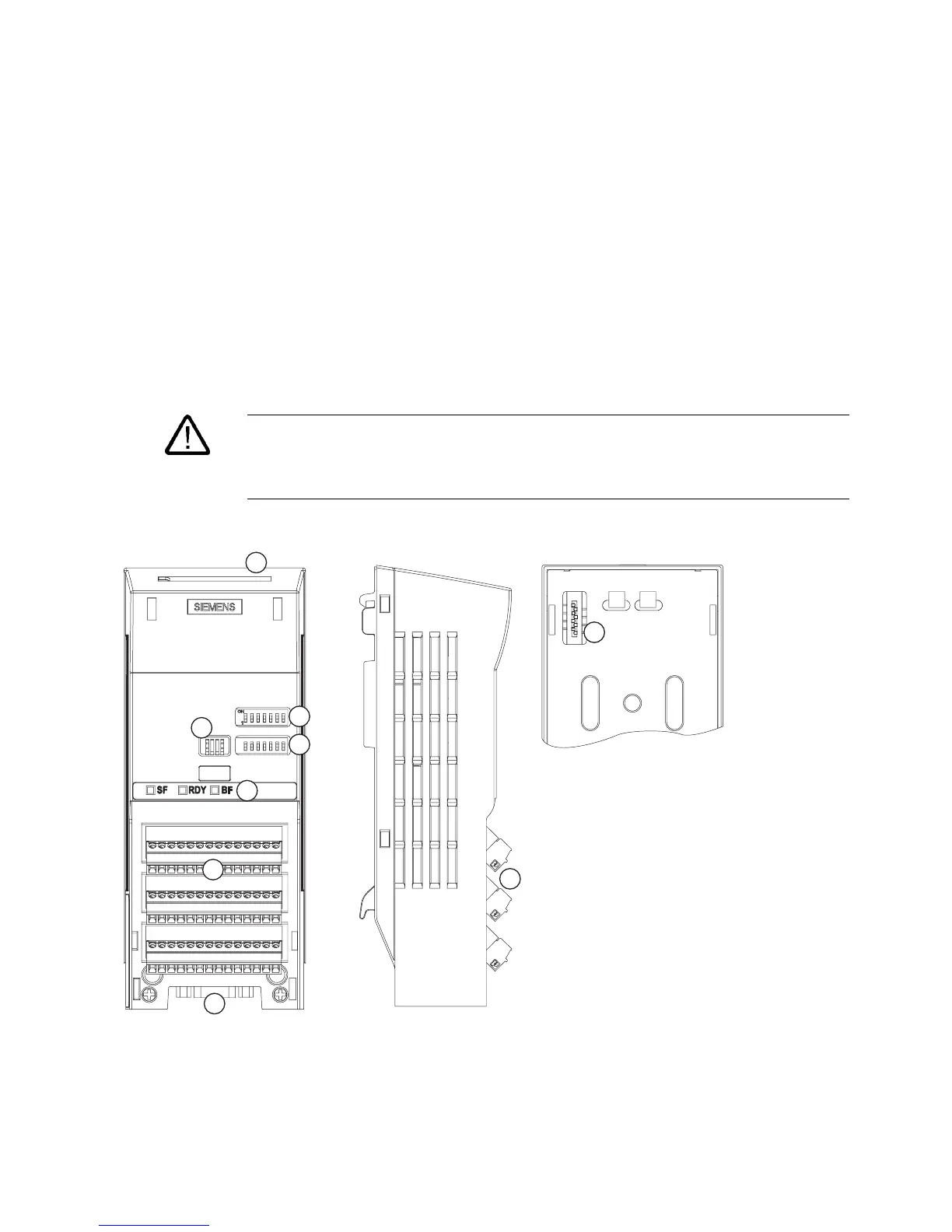

Figure 4-1 General layout of a CU240 Control Unit
