8.20 Positioning ramp down
Control Units CU240S
Operating Instructions, 11/2006, A5E00766042B AA
8-143
8.20 Positioning ramp down
Data
Parameter range: P2480 – r2489
Warnings: -
Faults: -
Function chart number: -
Description
The positioning ramp down can be used for applications where it is necessary that a residual
distance is moved-through up to the stop dependent on an external event (e.g. BERO
switch). In this case, the SINAMICS G120 generates a continuous braking ramp by selecting
OFF1 depending on the actual load speed and velocity. The motor is then stopped and
positioned along this braking ramp (see figure below).
I
W
W
3
V 3 ವI
2))
ವW
3
0RWRU *HDU
2))
I
2))

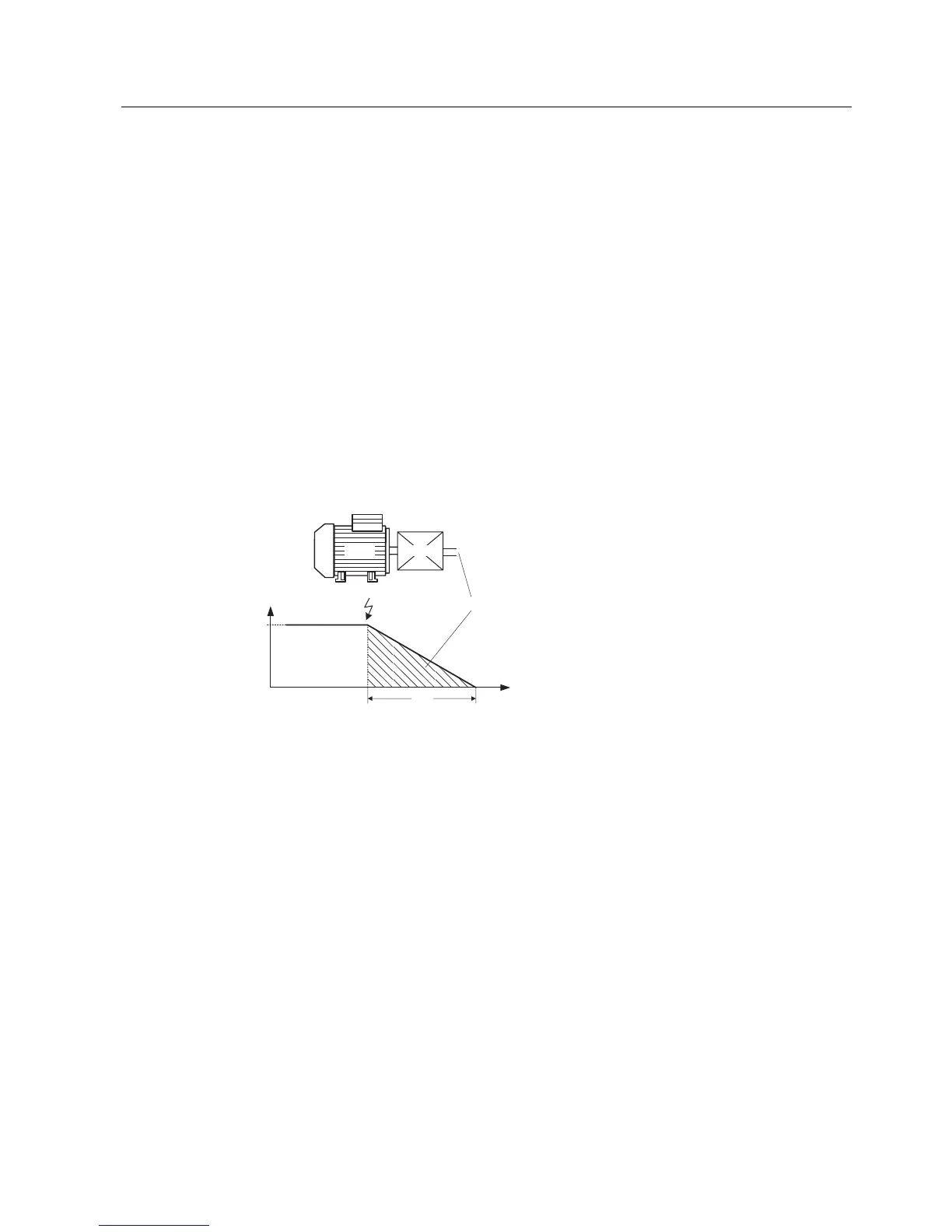

Figure 8-75 Positioning ramp down
