Functions
8.12 PID Controller
Control Units CU240S
8-52 Operating Instructions, 11/2006, A5E00766042B AA
8.12 PID Controller
Data
Parameter range: P2200, P2201 … P2355
Warnings: A0936
Faults: F0221, F0222
Function chart number: FP3300, FP3400, FP5100
Features:
- cycle time: 8 ms
Description
The SINAMICS G120 has an integrated technology controller (PID controller, enabled
through P2200). This can be used to process basic higher-level closed-loop control
functions. These typically include:
Closed-loop pressure control for extruders
Closed-loop water level control for pump motors
Closed-loop temperature control for fan motors
Closed-loop dancer roll position control for winder applications
And similar control tasks
The technology controller setpoints and actual values can be entered using the PID
motorized potentiometer (PID-MOP), PID fixed setpoint (PID-FF), analog inputs (AI) or
through the serial interface as shown in the figure below. The appropriate parameterization
of the BICO parameter defines which setpoints or actual values are to be used.
3
3
3
3
3
3,'
3,'
023
$,
3,'
))
56
56
$,
3,'
680
3,'
37
3,'
5)*
3,'
37
3,'
6&/
3,'
3,'
2XWSXW
0RWRU
FRQWURO
)LHOGEXV

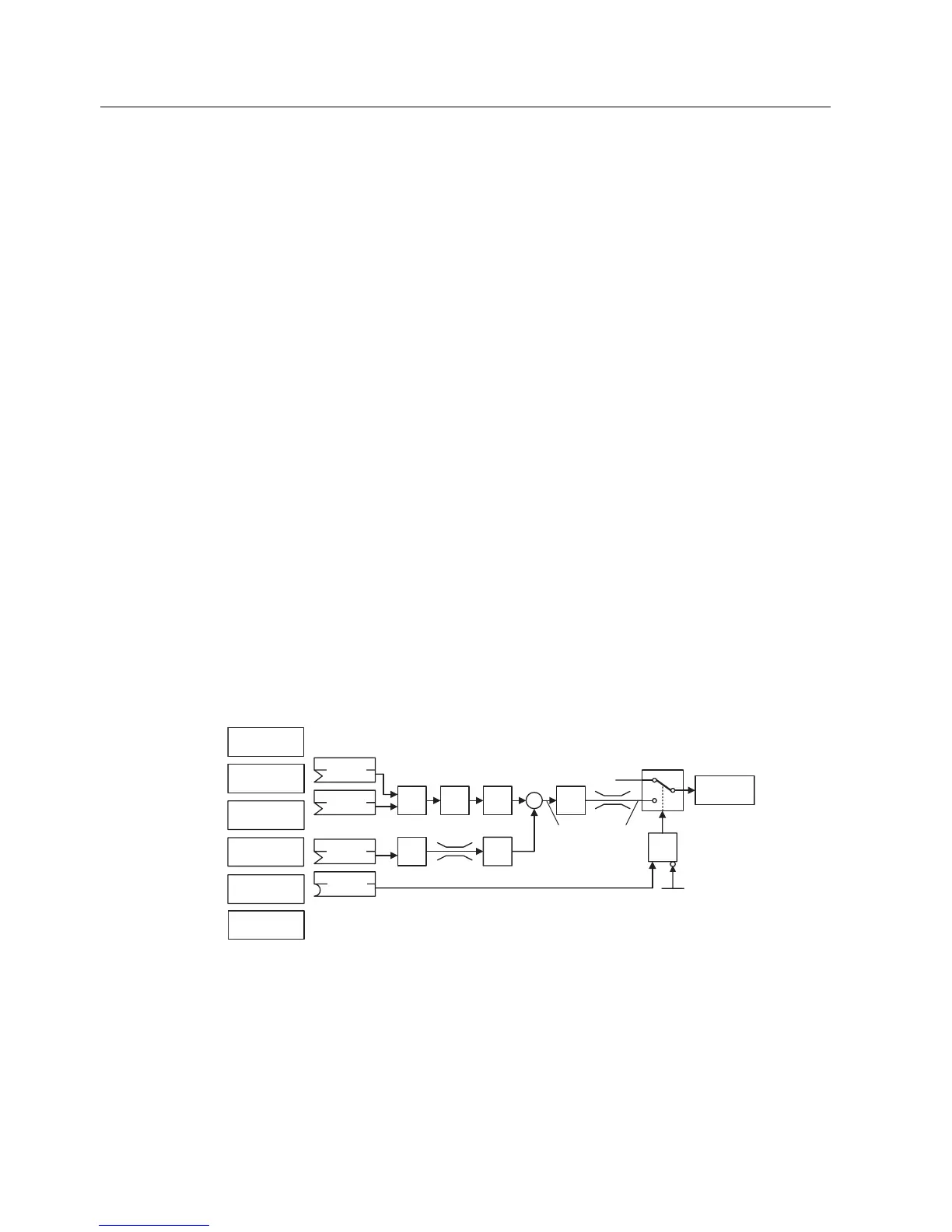

Figure 8-35 Structure of the technology controller
