Siemens CU240S DP-F User Manual

Description
3.5 Interfaces of the CU240S variants
Control Units CU240S
3-14 Operating Instructions, 11/2006, A5E00766042B AA
PROFIBUS DP DIP switches (CU240S DP and CU240S DP-F)
The PROFIBUS DP address can be set via seven DIPswitches or via parameter "P0918". If
an address is set via DIP switches, the value of p0918 will be ignored. The PROFIBUS DP
address can be set between 1 and 125.
In the factory setting the PROFIBUS DP address DIP switches are in the OFF position.
21
%LW


%LW


%LW


%LW


%LW


%LW


%LW


2))

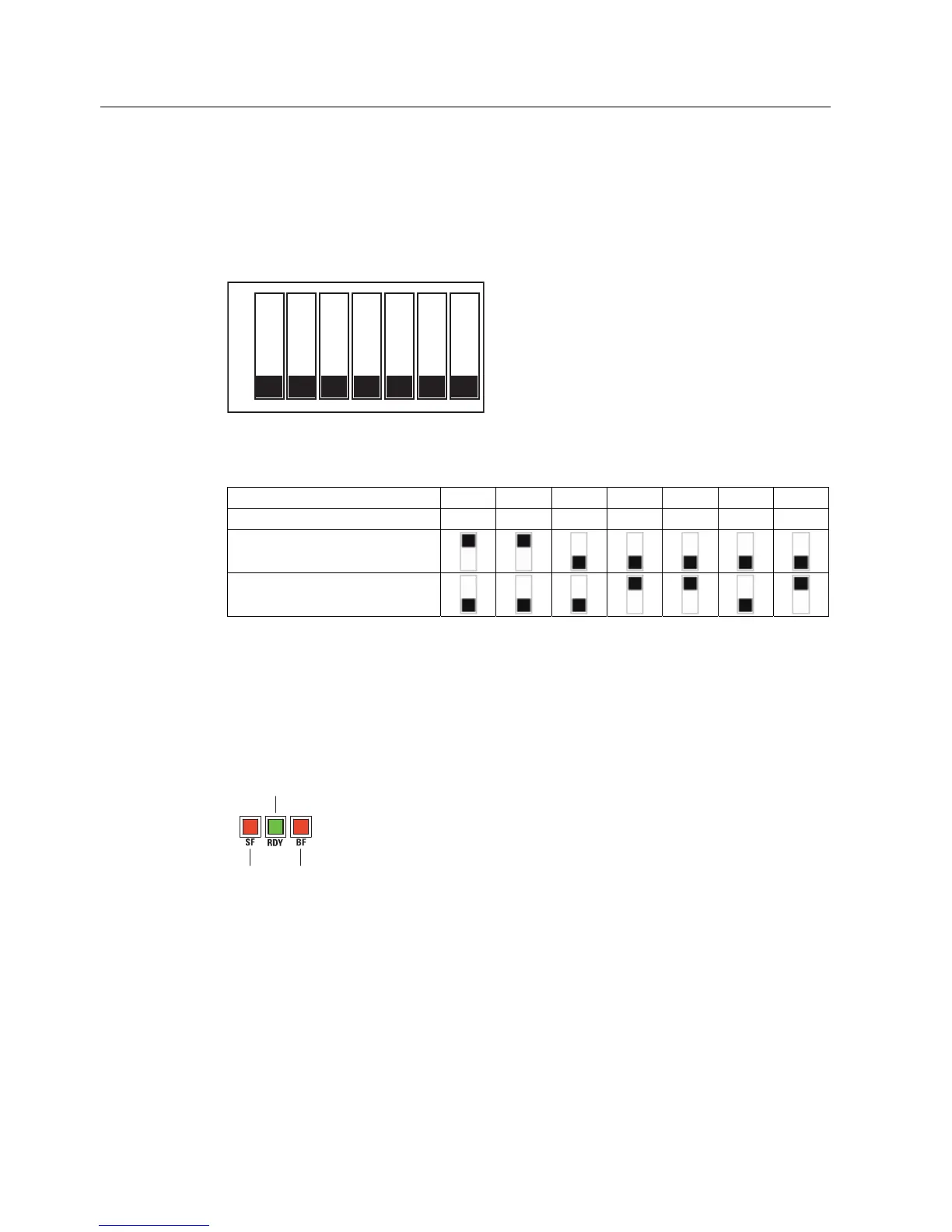

Figure 3-8 PROFIBUS address DIP switches
Table 3-5 Example address for the PROFIBUS DP interface
DIP switch 1 2 3 4 5 6 7
Add to address 1 2 4 8 16 32 64
Example 1: Address = 3 = 1 + 2
Example 2:
Address = 88 = 8 + 16 + 64
Status display via LEDs
The SINAMICS G120 inverters provide multiple functions and operating states which are
indicated via LEDs.
LEDs for standard CUs
The status for standard inverters is displayed via the following LEDs:
*HQHUDO
)DXOW
5HDG\
%XV
)DLOXUH
Figure 3-9 Status LEDs for standard inverters
